LED IP54 Dimmable Downlight

Production Lead Time:

7 day(s)

Model No.:

DL264

Port:

Shenzhen

Type of Payment:

T/T, L/C, Pay Pal

Minimum Order Quantity:

1 carton

Voltage(V):

AC220-240V

Certification:

RoHS, SAA, CE

Wattage(W):

10W 13W 18W 25W 30W 35W

Body Material:

Aluminum, Polycarbonate (PC)

Is Dimmable:

Yes

Power Source:

Style:

Modern

Install Style:

Embeded

Description

Contact Supplier

LED IP54 Dimmable Downlight (DL264)

60° Beam angle
IP54
DIM
DALI,0-10V,
CRI80
3000K 4000K 5000K 5700K
Size:
- diameter115*67mm(10W 13W), Cutout90-95mm
- diameter145*73mm(13W 18W), Cutout120-130mm
- diameter170*86mm(13W 18W 25W), Cutout140-150mm
- diameter190*90mm(18W 25W 30W), Cutout160-170mm
- diameter235*100mm(18W 25W 35W), Cutout200-210mm

This downlight is an anti-glare UGR<19 design. It’s adopted high lumen SMD light source, the scale PC shade and reflector make a uniform light output. Al1060 aluminum housing provides a great thermal management, interchangeable CCT can meet more market demand.

- Anti-glare design, 5/6/8 inch with UGR<19.

- High lumen efficiency 100lm/W.

- IP54 in front cover.

- Interchangeable CCT(3000K+4000K+5700K)with slide switch.

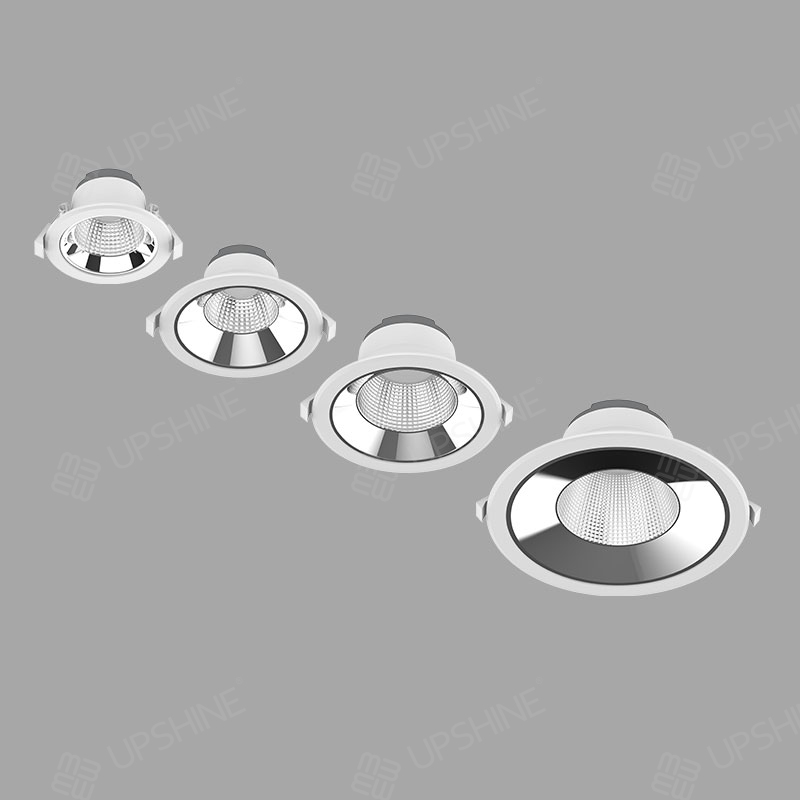

- Complete size options:3/4/5/6/8inch.

- Finished color: White RAL9016.

- External flicker free driver.

- Dimmable way: Triac, DALI, 0-10V.

Application Areas:

It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
