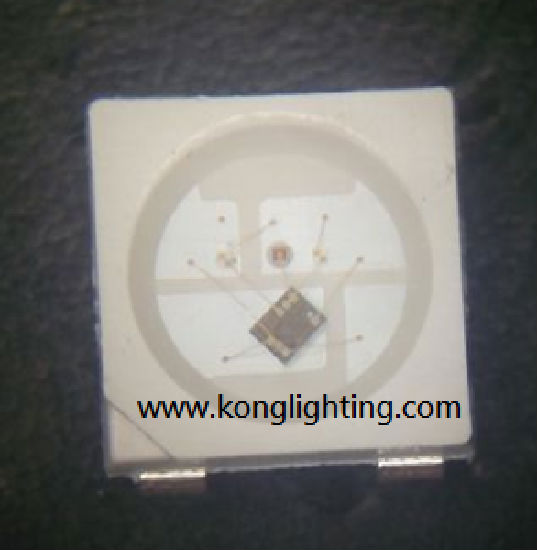

Featured here is a RGB LED with built-in IC. The control circuit and RGB chip are integrated in one 5050 encapsulation to form a completed external control pixel point. This RGB (IC) LED has good lighting color consistency and ensures high performance.

• 5050 LED economical version.
• Top SMD RGB (IC) LED.
• 3 chips in 1 LED 0.3 W (R, G, B).
• Built-in IC.

Features:

• External intelligent control for integrated LED point source.
• Control circuit and RGB chip integrated in one 5050 encapsulation to form a completed external control pixel point.
• Built-in power-on reset and brown-out reset circuit.
• Trichromatic color of each pixel can achieve 256 grade gray-scale display, completely display true color of 16777216 full color, scanning frequency not less than 400HZ/S.
• Built-in shaping circuit, signal which received by any one pixel will be exported through the waveform shaping, to ensure the integrity of signal transmission.
• Default power on: white light.
• Default output current vale 12mA.
• Through a signal line, serial concatenated port can completely finish receiving and decoding data.
• Built-in high precision and high stability oscillator.
• Data transmission rate 800Kbps.
• Luminous color consistency with good performance.

Benefits/ applications:

• LED point source, LED pixel display,
• LED symphony color light stripe, light bar.
• LED horse race lamp, LED guardrail tube.
• LED symphony module Light, LED symphony light string.
