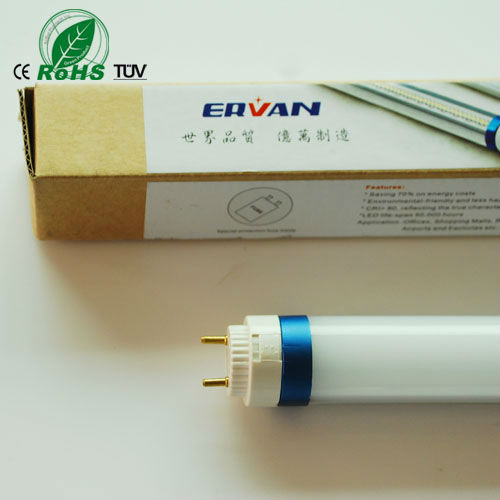

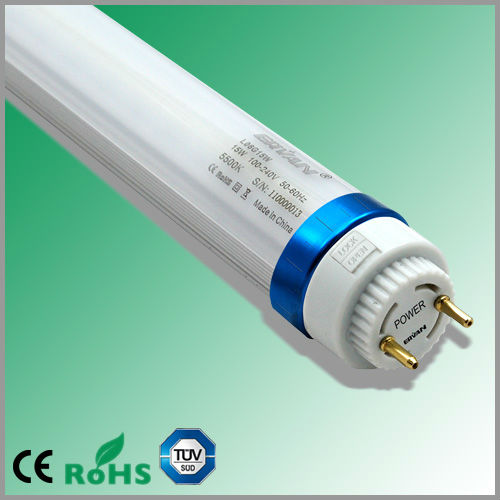

LED Lighting Tube

Model No.:

L05G

Brand:

ERVAN

Colour:

Warm White, Daylight White, Pure White, Cool White

Size:

D26 x 598/1198/1498mm

Port:

Shenzhen

Type of Payment:

Western Union, L/C, T/T

Minimum Order Quantity:

100 pc(s)

Description

Contact Supplier

Material: plastic (end cap).
Reliable LED tube with lockable rotating end caps and blue shining ring.
Trusted LED tube for the replacement of all traditional tubes.

Advantage:

With lockable rotating end cap.
LED's maintain flux is up to 6.8lm/W.
Significant energy savings.
Maintenance free.
Mercury free.
Superior light quality.
Wide input: AC 100-240V.
Shock/vibration resistant.
Plastic end caps ensure to pass 4000V Hi-Pot test.
Special circuit design, each LED work separately, avoiding the single broken LED influence problem.
Isolated power supply.
European safety wired.
Saving 70% on energy costs.
UL,cUL,VDE,TUV, CE,RoHS certificated.

Electrical specifications:

Model, power, dimension (mm), LED qty.:
L05G, 11W, 26 x 588 (2FT), 108pcs.
L05G, 20W, 26 x 1198 (4FT), 216pcs.
L05G, 24W, 26 x 1498 (5FT), 240pcs.

Luminous (frosted lens)/(clear lens):

980lm±10%/1050 ±10%.
1800lm±10%/2000lm±10%.
2200lm±10%/2400lm±10%.

Operation:

Temperature: -20°C to 40°C.
Voltage: AC 110V-240V.
Frequency: 50Hz/60Hz.
Power factor: > 0.95.
Power supply efficiency: > 90%.

Photometric specifications:

LED luminous efficiency: up to 100lm/W.
CRL: Ra. > 70.
CCT: warm white 3000K, daylight white 4000K, pure white 5500K, cold white 6500K.

Mechanical specifications:

Light distribution: 120°.
Isolate power supply.
Latest lockable rotating end cap.
Clear/frosted cover is available.
Weight: 588mm/210g, 1198mm/368.2g, 1498mm/443.8g.
Can be placed in conventional T8 or T9 fluorescent brackets and replace fluorescent tubes (remove ballast and starter before replacement).

Packing:

Length/qty./box/inner box size (cm):
0.6m/25pcs/72 x 24 x 24.
1.2m/25pcs/133 x 24 x 24.
1.5m/25pcs/163 x 24 x 24.

Qty./ctn/ctn size (cm)/volume weight:

50pcs/74 x 48 x 26/18.5kg.
50pcs/135 x 48 x 26/34kg.
50pcs/165 x 48 x 26/41kg.

Applications:

Replacement for conventional fluorescent tubes.
Hotels/factories/warehouses/offices/buildings.
Schools/colleges/hospitals.
Supermarkets/subways.
Railway stations/airports, etc.

Installation:

Note: make sure the power is turned off before installation.
When the led tube is replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse.
Attention: only suitable for magnetic ballast, not electronic ballast.
Electronic ballast must be by-passed by a registered electrician.
Warranty: 3 years since the date of purchase.
