    LED Linear Light
    Share this page
    US $12.00 - US $20.00
    Production Lead Time:
    8 day(s)
    Shipping Method:
    DHL/UPS/FEDEX/TNT
    Brand:
    CoreShine
    Model No.:
    CUL-1570-X1X2-X3WH
    Customised:
    Yes
    Application:

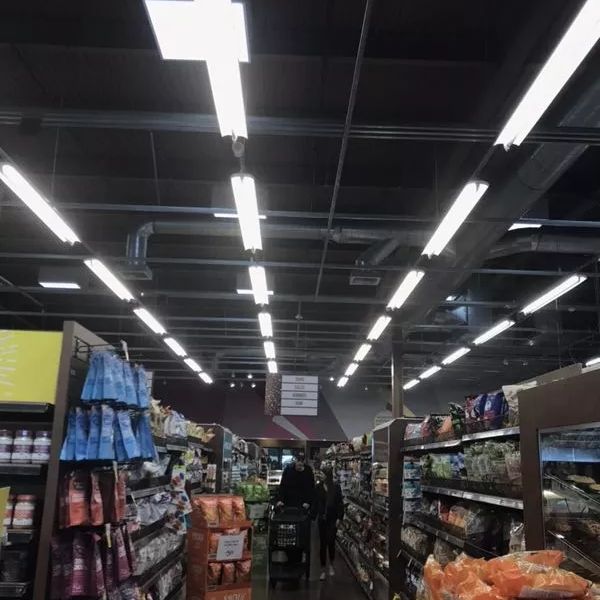

    Supermarket, Warehouse, Workshop, Office, Industrial etc.
    Length:
    1200mm, 1500mm, 2400mm
    CCT:
    3000K/4000K/5000K/6500K
    Input Voltage(V):
    AC220-240VAC/100-277VAC
    Power:
    55W-140W
    Lumen:
    8250lm-21000lm
    Light Efficiency:
    135-150lm/w
    THD:
    <15%
    PF:
    >0.95
    CRI (Ra>):
    80
    UGR:
    <19
    IP Rating:
    IP20
    Lifespan (hours):
    70000
    Warranty:
    5 years
    Light Source:
    smd2835

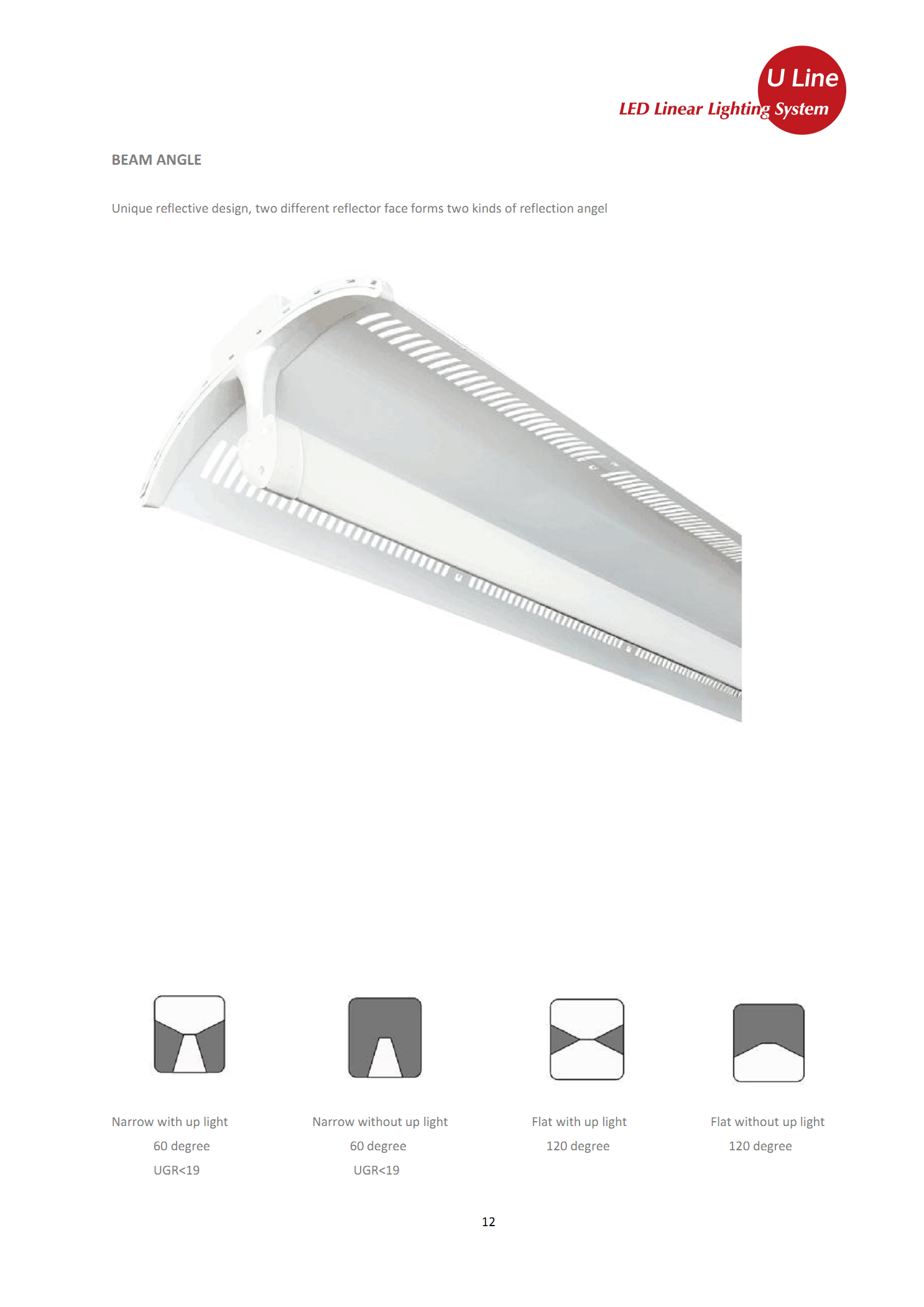

    Bean Angle:
    60°;120°
    Dimming:
    DALI, 1-10V, DIMswitch
    Wires:
    5 wire/ 8 wire/ 12 wire
    Connector:
    L/T/X Node Connector can be choose
    Function:
    Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light
    Certifications:
    CE/CB/ETL/DTC/SAA/FCC/GS/UL
    Is Dimmable:
    Yes
    Material:
    Aluminum Alloy + PMMA lens/PC cover
    Description
    Certification & Document
    Contact Supplier
    Description
    Product Details

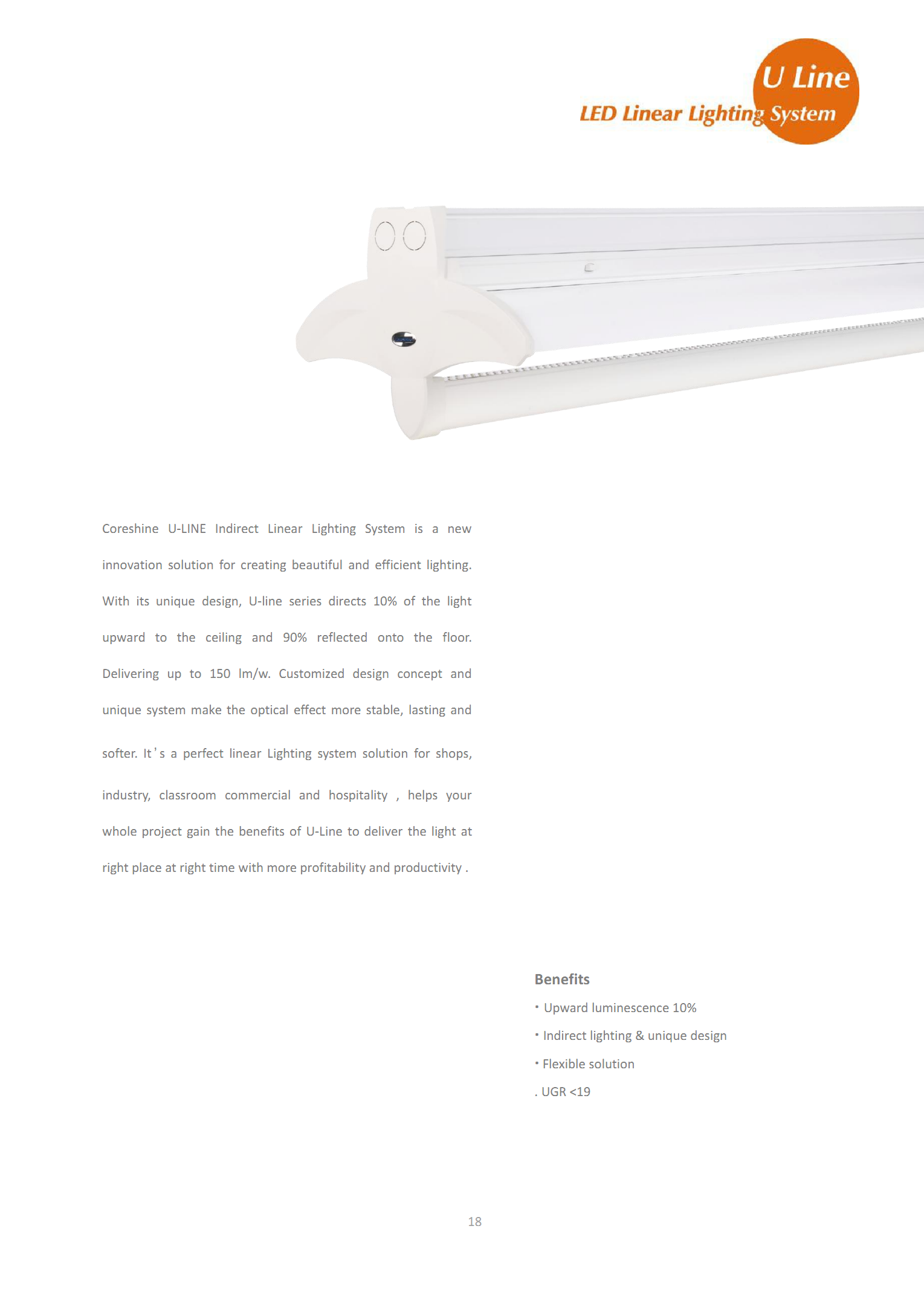

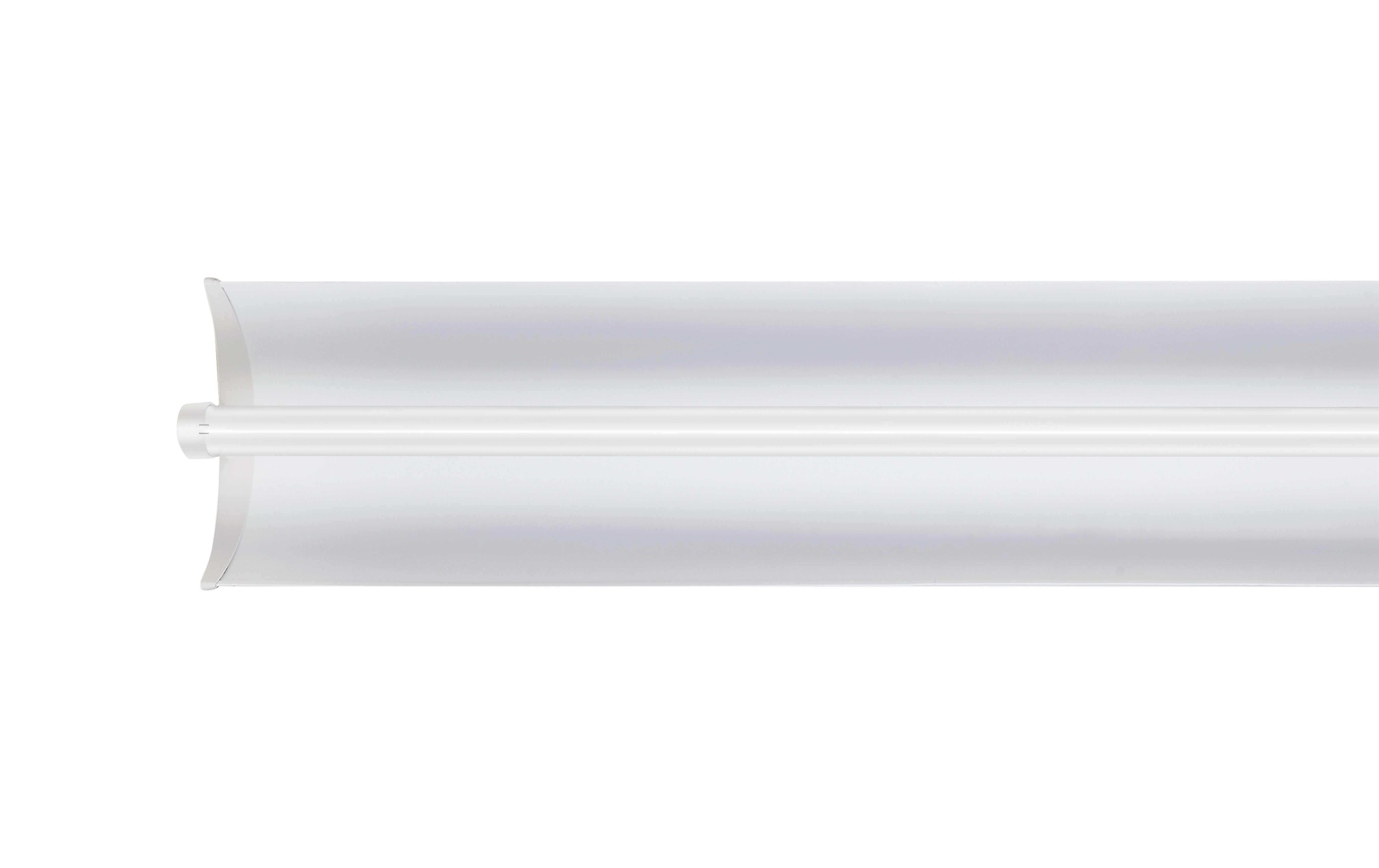

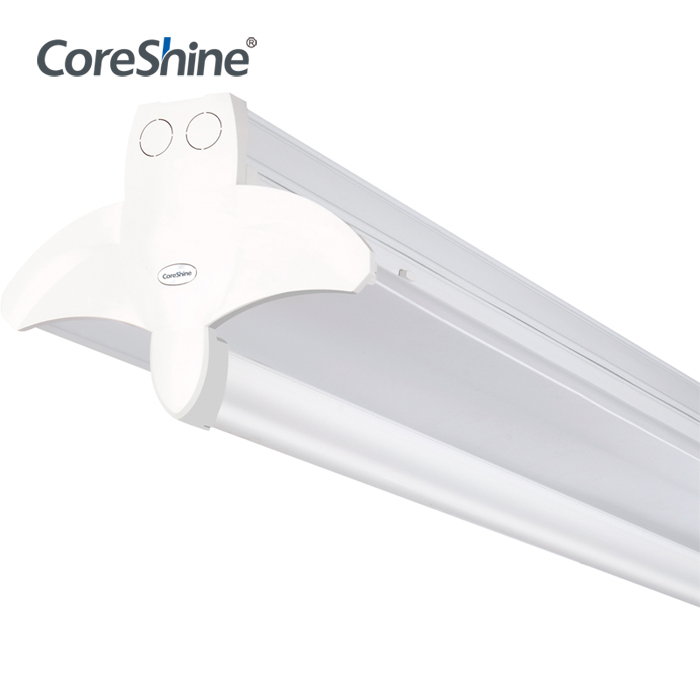

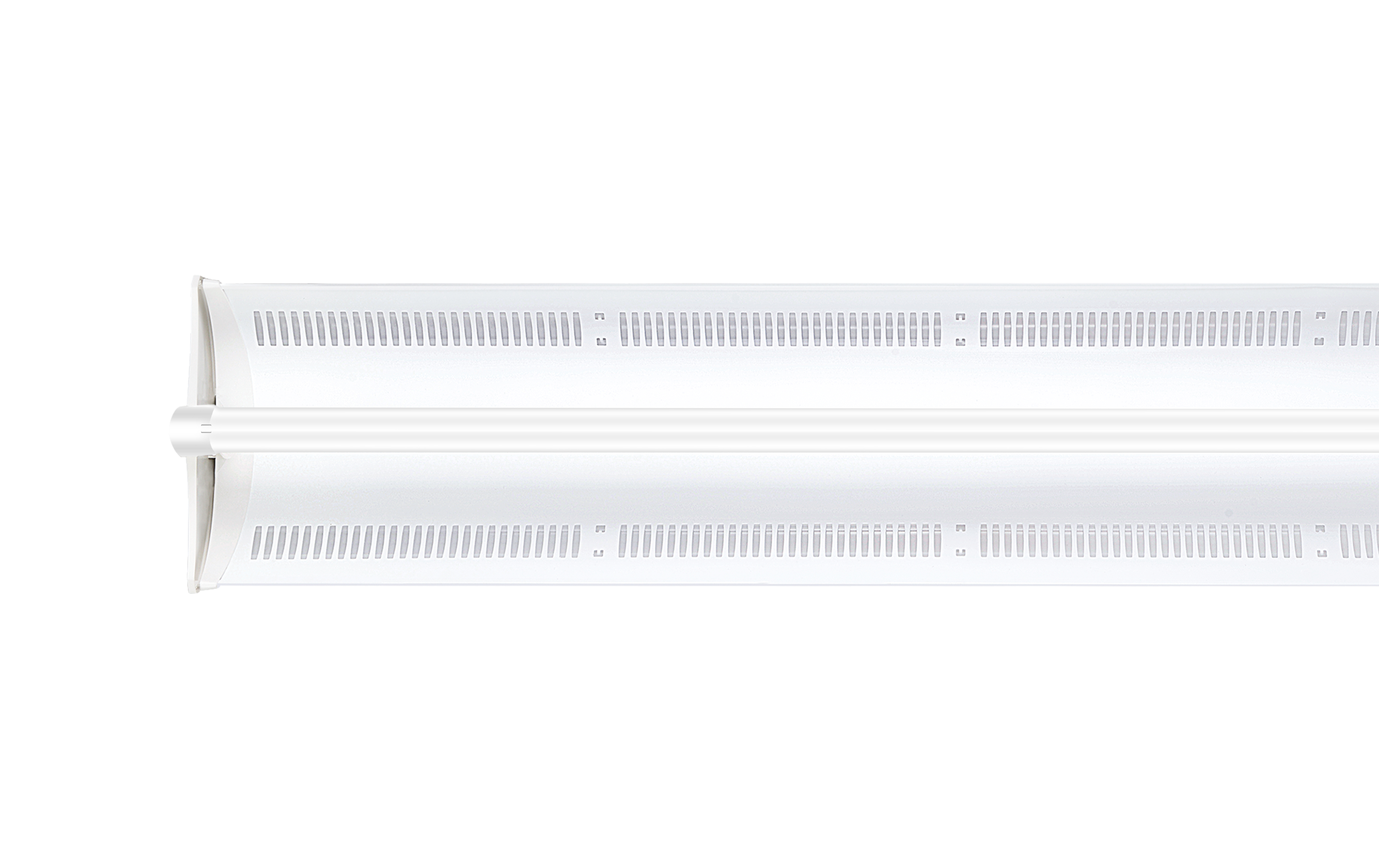

    Coreshine U-LINE Indirect Led Linear Lighting System is a new innovative solution for creating beautiful and efficient lighting.
    * Unique design
    * Tools Free Installation
    * 10% of the light upward and 90% reflected onto the floor
    * Delivering up to 150 lm/w
    * Low UGR <19. Perfect for school, library, classroom, shops, industry, commercial and hospitality
    * More profitability and productivity

    Luminaire
    Length
    Power
    Lumen
    Code No.
    1200mm
    55W
    8250lm
    CUL-1255-X1X2-X3WH
    1200mm
    60W
    9600lm
    CUL-1260-X1X2-X3WH
    1200mm
    65W
    9750lm
    CUL-1265-X1X2-X3WH
    1500mm
    70W
    10500lm
    CUL-1570-X1X2-X3WH
    1500mm
    70W
    10500lm
    CUL-1570-X1X2-X3WH
    1500mm
    110W
    16500lm
    CUL-15110-X1X2-X3WH
    2400mm
    120W
    18000lm
    CUL-24120-X1X2-X3WH
    2400mm
    1300W
    19500lm
    CUL-24130-X1X2-X3WH
    2400mm
    140W
    21000lm
    CUL-24140-X1X2-X3WH

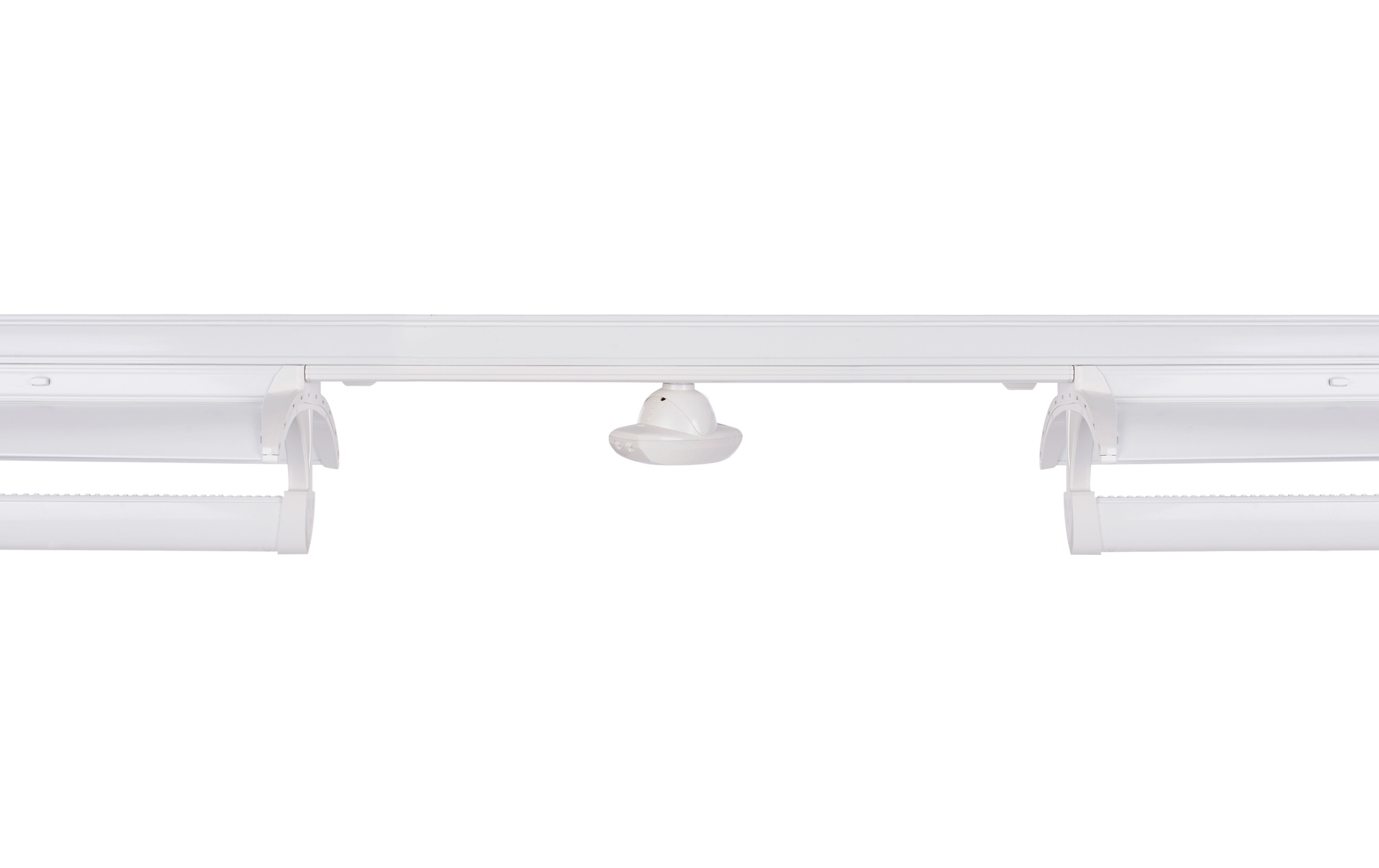

    Trunk Rail

    Europe StandardsNorth America Standards
    Length
    • 600mm, 1500mm, 3000mm
    • 600mm, 1200mm, 2400mm
    Wires
    • 5 wire: L1, L2, L3 N, FG
    • 8 wire: L1, L2, L3 N, FG, CHR, + 2 wires for Dimming/Emergency
    • 12 wire: L1, L2, L3 N, FG, CHR, +2 wires for Dimming + 4 wires for Emergency converter & Battery

    Why Choose Coreshine

    CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.

    • Established in 2005
    • Located in Shenzhen
    • Number of employees 200 staffs
    • 13,000 square meter 9 floors of workshop + 1 floor of office
    • Complete Industry Layout: R&D, Production, Marketing
    • Our Goal: To be World Leader of Linear Lighting System

    Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.

    R&D

    • Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
    • Their average industry experience is more than 10 years.

    Production

    • More than 95% of our accessories are made by ourselves.
    • We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
    • All our employees have professional training before going to work, and only 100% passed of the employees can be hired.

    QC

    • Our QC department consists of 11 people, all of them are very experienced in this field.
    • They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.
    Our Advantage
    • 5 years warranty
    • Toolless installation
    • Brand Components
    • Heat radiating area 106cm²/w
    • Longer warranty, Less maintenance
    • Rigorous technical
    • Quick connector
    • Electrical safety design
    • Organized wiring
    • Modularity, integration structure

    Supporting Document
