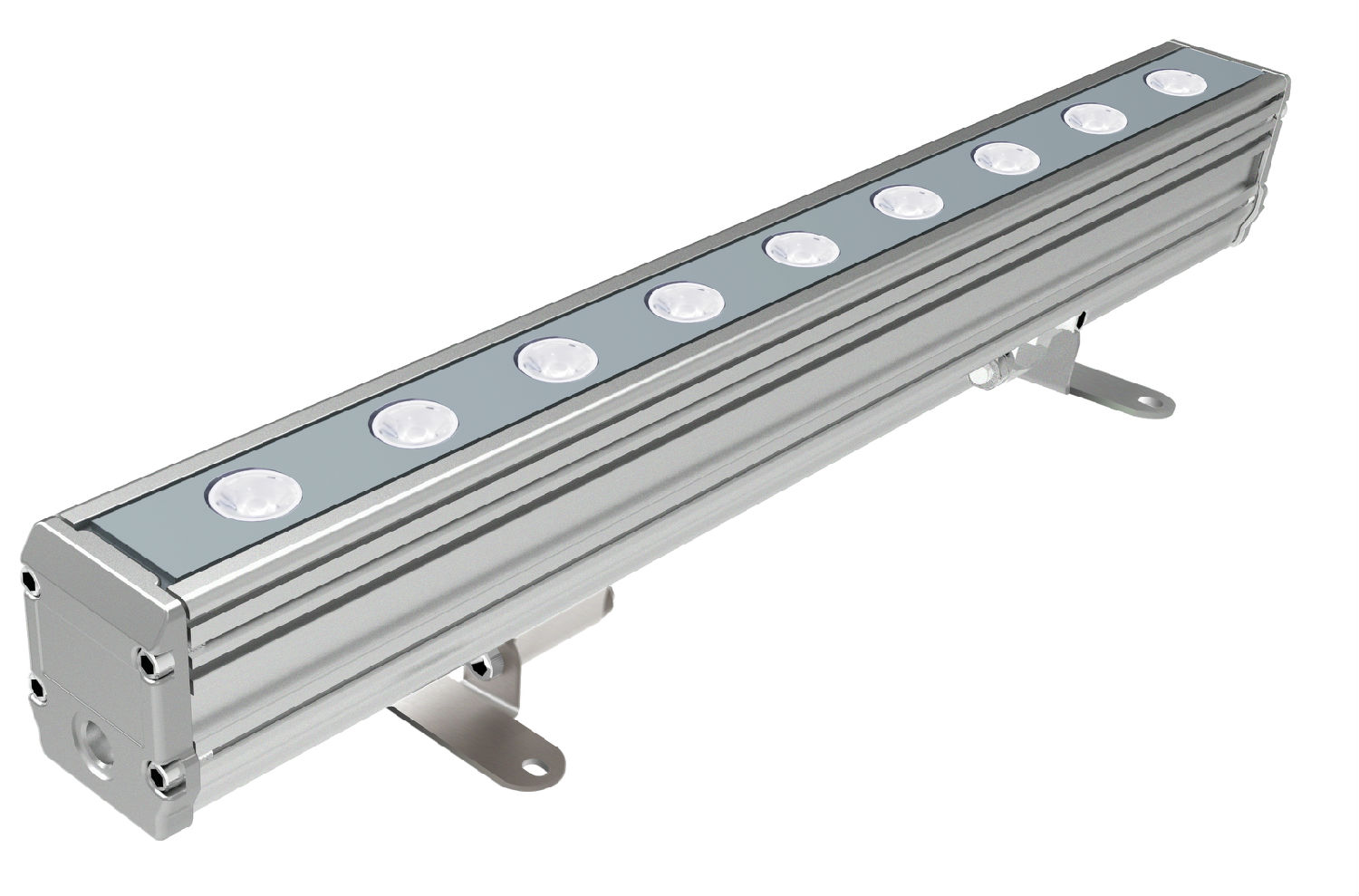

LED Linear undewater Luminaire
Model No.:
U3051
Port:
Shangahai
Type of Payment:
T/T
Minimum Order Quantity:
1~50 pcs
Wattage(W):
10W/16W
Warranty:
3 years year
Light Source:
lumileds / Osram
Including Bulbs:
No
Applicable:
Fountain
Protection Level:
IP68
Customized:
Yes
Voltage(V):
DC 12V
Description
Contact Supplier
Description
Type U3051A/B5 Series (Professional)
LED Germany OSRAM、 USA LUMILEDS、USA CREE, Imported Light Emitting Diode（LED）
Single LED Wattage 1W / 2W
LED lifespan 50,000 hours
LED quantity 9pcs
LED color (single color) Red、Green、Blue、Amber、White、Neutral white、Warm white
LED color(color changing) Red、Green、Blue

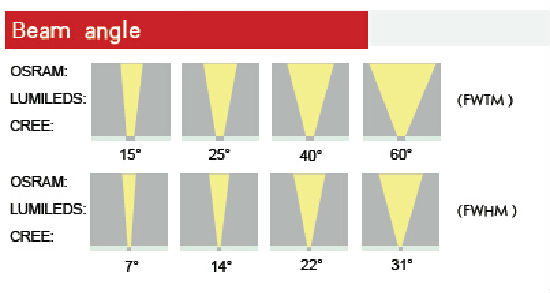

Beam angle 15 °/25 °/40 °/60 °/45°×25°/60°×15°
Housing 6063 aluminum, anode dioxide surface treatment,Silver gray spray painting with high corrosion resistance
Glass material 5mm thickness tempered glass, Aluminum gray finish
Power input DC12V
LED driver 350mA / 500mA constant current driver
Power consumption 10W / 16W
Ingress protection IP68
Classification Ⅲ
Power cable 2×1. 0mm2 rubber cable(single color)；3×1. 0mm2 rubber cable(color changing)
Control DMX512 Compatible(1990)
Ambient operating Temperature -20℃~+55 ℃(Ta+10℃)
Net weight 1.5 KG
LED Germany OSRAM、 USA LUMILEDS、USA CREE, Imported Light Emitting Diode（LED）
Single LED Wattage 1W / 2W
LED lifespan 50,000 hours
LED quantity 9pcs
LED color (single color) Red、Green、Blue、Amber、White、Neutral white、Warm white
LED color(color changing) Red、Green、Blue
Beam angle 15 °/25 °/40 °/60 °/45°×25°/60°×15°
Housing 6063 aluminum, anode dioxide surface treatment,Silver gray spray painting with high corrosion resistance
Glass material 5mm thickness tempered glass, Aluminum gray finish
Power input DC12V
LED driver 350mA / 500mA constant current driver
Power consumption 10W / 16W
Ingress protection IP68
Classification Ⅲ
Power cable 2×1. 0mm2 rubber cable(single color)；3×1. 0mm2 rubber cable(color changing)
Control DMX512 Compatible(1990)
Ambient operating Temperature -20℃~+55 ℃(Ta+10℃)
Net weight 1.5 KG
