Advantage:

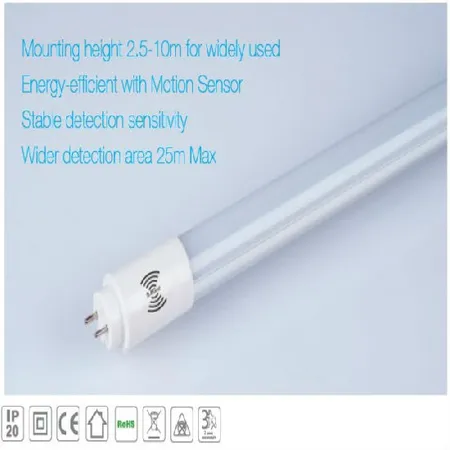

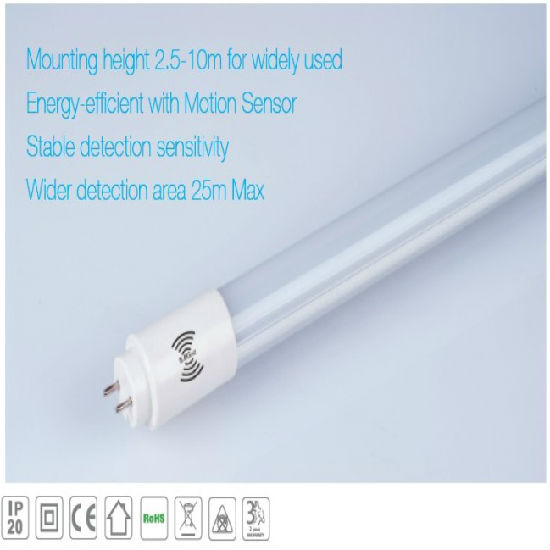

• Energy-efficient with Mircowave/Motion Sensor
• Maximum efficacy and minimum glare
• Isolated power supply，Europe safety wired
• single end power anti electric shock ensure safety
• 3or 2 steps dimming control
• Stable detection sensitivity
• Wider detection area 25m Max
• Aluminum PCB better heat dissipation
• High-tech optical design.
• No UV,NO lead, NO Mercury

specification:

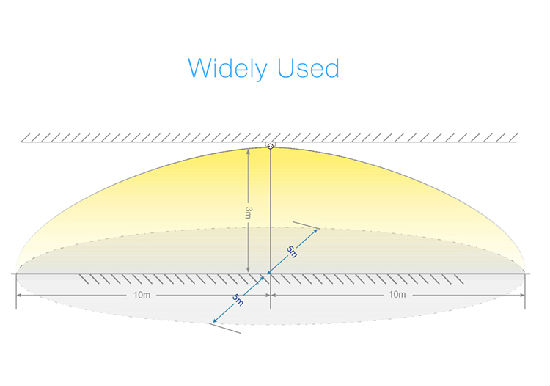

• Detection area: R(8-10)m
• Detection angle:30-150°
• Mounting height:2.5-10m for widely used
• Detection wide: 25m Max
• Luminous: 2760lm ± 10%.
• Luminous efficiency: 115lm/W.
• Light source: SMD 3528/2835LED.
• LED number: 247pcs
• Power efficiency: 0.92.
• Power energy saving: ≥80%.
• Power factor: ≥0.95.
• THD:<20%
• CRI: ≥80.
• Color temperature:2700-3500K; 4000-4500K; 5000-6000K; 7000-8000K
• Input voltage: AC 100 to 240V.
• Input current: 58mA.
• Operating frequency: 50 or 60Hz.
• Beam angle: 120°.
• PC lens: transparent/frosted available.
• Life span: 50,000 hours.
• Warranty:5years

Application:

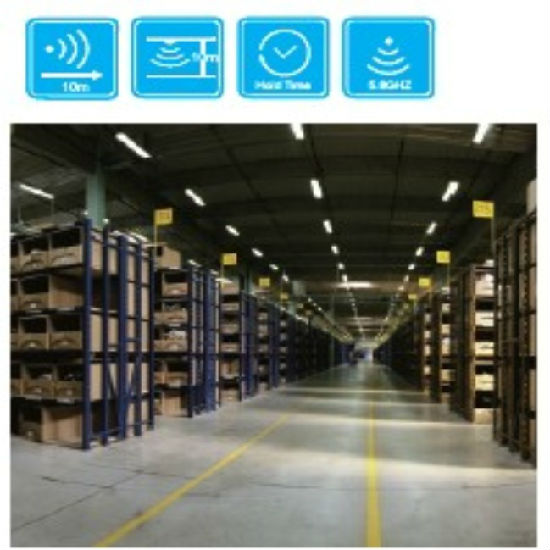

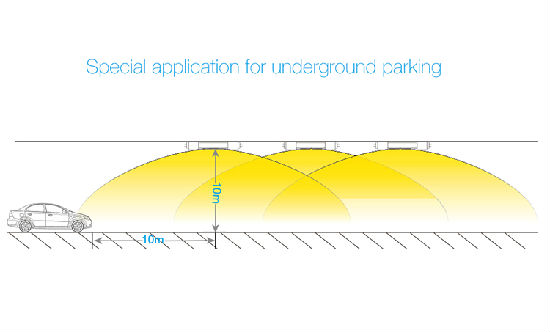

• Porch, offices, shopping malls, railway stations, parking lot, airports, factories, etc.

Certification: TUV, UL,VDE, DLC
Temperature and Humidity:

• Operating temperature:-20~+40℃
• Storage temperature:-40~+85℃
• Operating humidity:10%-80%
• Storage humidity:10%-80%

Package:

• Net weight: 368.2g.
• Dimension: Φ26 x 1198 (5ft).
• Packaging: 1pc/box, 50pcs/ctn.
• Carton measurement: 165 x 48 x 26cm.
• Pallet:14cartons/pallet

Payment: L/C, T/T.
Delivery:

• 10 days for sample
• 20 days for mass production.

Attention:

• When LED tubes are replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse, simply and conveniently.
• Electronic ballast must be by-passed by a registered electrician.
