LED Module
Share this page
Model No.:
CC53-30
Brand:
JMK
Colour:
Warm White, Cool White
Size:
53mm diameter
Port:
Keelung, Taiwan
Type of Payment:
T/T in advance
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description

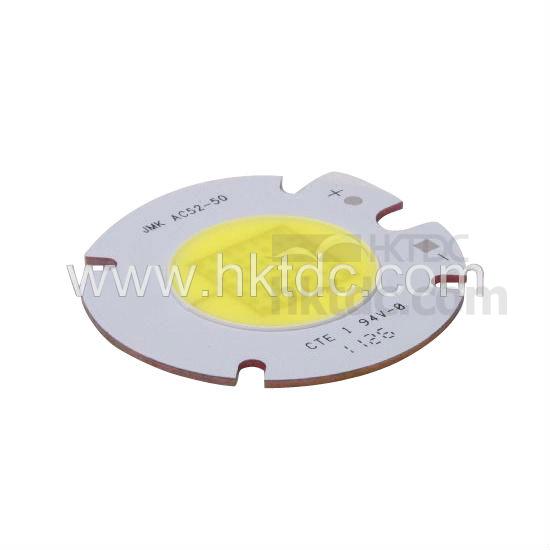

  • High power multi-chip chip-on-board LED module..
  • Copper based.
  • 2500 lumens.
  • Round shape.
  • Material: copper MCPCB.
  • Net weight: 12.1g.
  • Power consumption: 30.6W.
  • DC forward current, IF: 1750mA.
  • DC forward voltage, VF: 17.5V.
  • Operating temperature: -40~+70°C.
  • Storage temperature: -40~+70°C.
  • Viewing angle: 130 degree.
  • Color temperature (cool white): 5700-6300K.
  • Color temperature (warm white): 2800-3200K.
  • Luminous flux (cool white): 2200-2400Lm.
  • Luminous flux (warm white): 2100-2200Lm.
  • Color rending index: >70.
  • Environmental temperature: 25°C.
  • Long lifetime.
  • Simple implementation.
  • Easy and safe to maintain.
  • Comfortable light source.
  • Applications: big diameter commercial down light, billboard spot light, ceiling light.
