Specifications:
It has 22mm and 26mm two kinds of the interface of the lamp arm

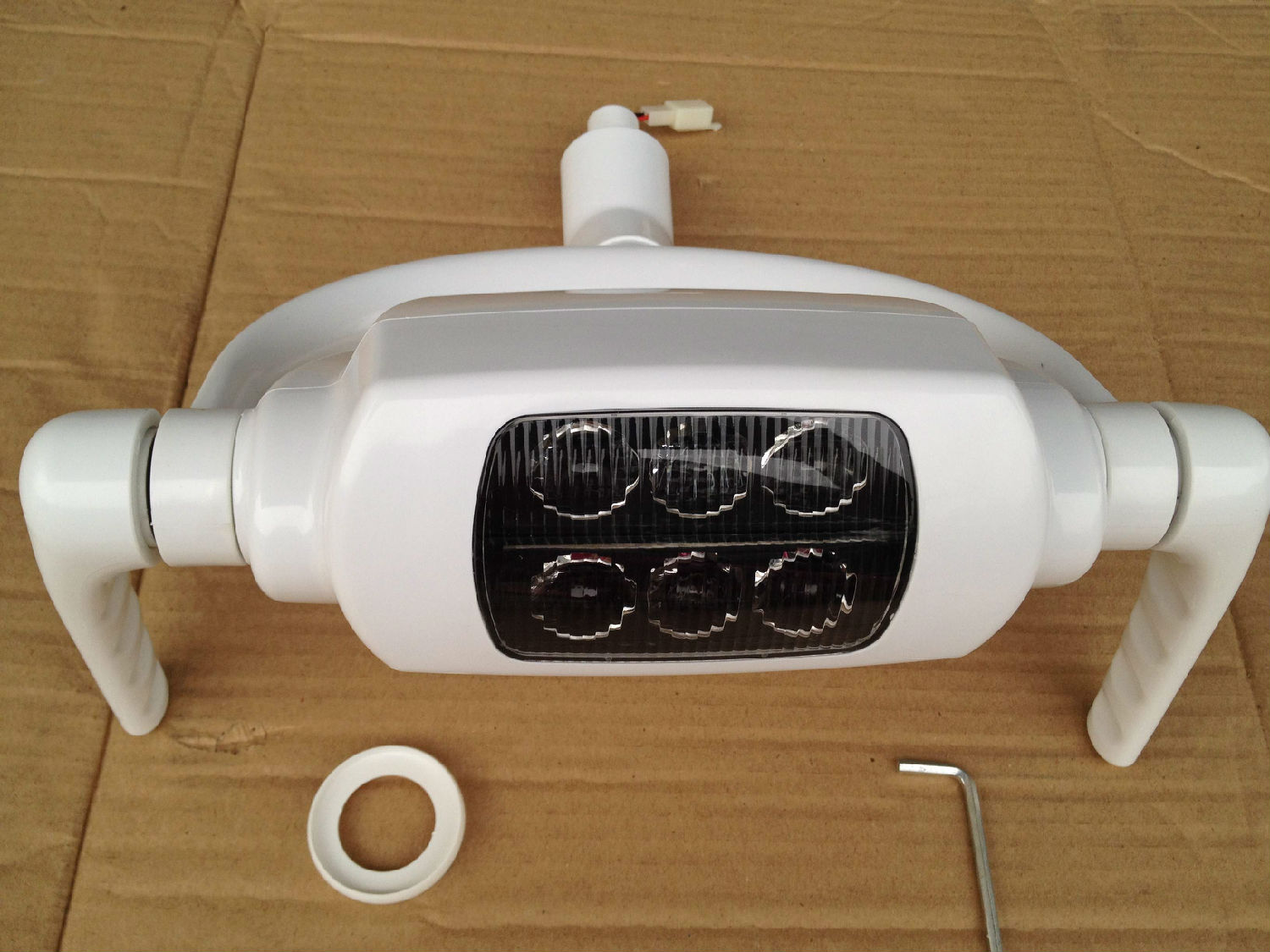

Description of product:

This product is used for diagnosis, treatment and operation in the Department of Stomatology of the medical department.

Environmental requirements:

Storage transportation environment:

Temperature: -20 70

Relative humidity: 1090

Use environment:

Temperature: 5 -40

Relative humidity: 3080

Atmospheric pressure: 5001060hpa

Technical parameters:

Input voltage: 12VAC + 20%

Frequency: 50/60Hz

Work rate: 8VA

Rated current: 800mA

Illumination: 8000-30000LUX

Color temperature: 6000 K

Spot size: 70 * 140MM (range 700MM)

Control method: inductive and manual switches

Two Operation methods:

1. operating light has three active joints adjustment angle of use

2. the mouth light handle can be used with the user's request to change angle

3. control method

Hand close to the sensor 50-120MM or so, you can control the mouth lights on or off.

Three Cleaning and disinfection

Oral light transmission cover can be used in the lens paper wipe.

Mouth light housing and handle can be used to clean the neutral detergent, alcohol or disinfectant wipe disinfection.

Four Installation methods

Connect the connecting plug and the connecting wire of the mouth light to the connecting plug connection, and then screw down the mouth lamp and the lamp arm with the M6 screw.

Power supply voltage: AC 12V±20%
power: 8W
Spot size: 70*140mm(@700mm)
Lamp packing size: 40*32*14cm
Lamp Weight: 2kg
Lamp Arm packing size: 80*22*14cm
Lamp Arm Weight: 4kg
