LED Painting Display
Model No.:
OFC40-80
Brand:
Joinmax
Port:
Guangzhou
Type of Payment:
T/T, L/C
Minimum Order Quantity:
15㎡
Description
Contact Supplier
Description

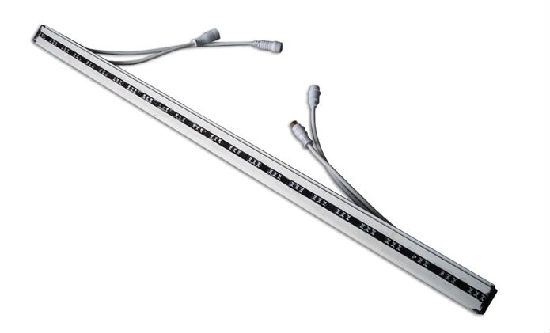

Technical Specification for Painting LED Display
- Pixel Pitch ( from left to right)： 80mm
- Pixel Pitch ( from up to down)： 40mm
- Pixel Composition： 1R 1G 1B
- Module Size (L)x(W)x(D)： 960X80X20mm
- Cabinet Weight： 1.5kg/set
- Brightness： >1000(cd/sqm)
- Driving Mode： Static Constant Current
- Lifetime： >0.1Million hours
- Max Power Consumption： <135W
- Operation Voltage： DC24V
- Operation Temperature： -15 to 50℃
- Storage Temperature： -20 to 60℃
- Protection Grade： IP65
