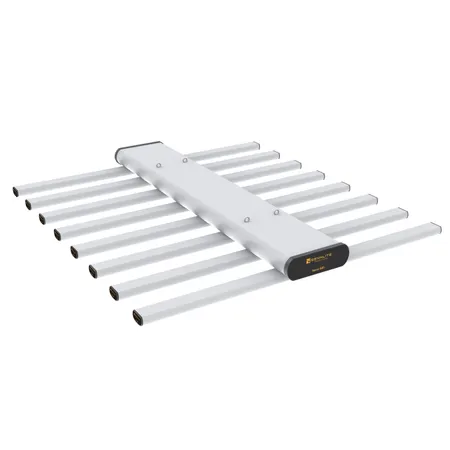

LED Plant Growing Fixture- LED Grow Lamp
US $450.00 - US $720.00
US $500.00 - US $800.00
Production Lead Time:
30-45 day(s)
Shipping Method:
SEA/ AIR
Feature:
LED Plant Grow Lights
Customised:
Yes
Material:
Aluminum
Is Dimmable:
Yes
Description
Contact Supplier
Description
1. Controllability Up to 256 Fixtures pre Channel
2. Full Spectrum LED Chip Covers all the growth stage of your crop from vegetation to flowering
3. Outstanding Efficiency 2.7µmol/J at 645
4. Dimmable Fixture Supplemented with dimmer
5. IP65 Waterproof Suitable for humid environments and protected against splash from any direction
6. Plug & Play Easy and fast installation
| Nova 645 Series LED Horticulture lighting（100V-277V) | ||||
| nova 645-pro | nova 645-far | nova 645-std | nova 645-eco | |
| Dimming Signal | Digital Dimming | Analog Dimming | Analog Dimming | Analog Dimming |
| Controller chip | 485 Chip | 485 chips (reserved position) | 485 chips (reserved position) | 485 chips (reserved position) |
| Spectrum | Variable Full Spectrum Range： Full Spectrum:100%/660nm: 0% Full Spectrum :90%/660nm: 100% | Full Spectrum + Far Red | Full Spectrum | Full Spectrum |
| Input Power | 645W (Full Specturm+660nm Red） | 645W Full Specturm+20W Far Red | 645W Full Spectrum | 645W Full Spectrum |
| PPF | 1750 | 1750 | 1750 | 1550 |
| PFE | 2.7umol/J | 2.7umol/J | 2.7umol/J | 2.4umol/J |
| LED chips Qty | 360 Samsung301B Chips +9 Osram 3.24(3030) Chips +Dimmable 9 Osram 3.24(3030) Chips | 360 Samsung301B Chips +9 Osram 3.24(3030) Chips + 4 730nm Far Red chips | 360 Samsung301B Chips +9 Osram 3.24(3030) Chips | 288 LDD4000k(3030) chips +9 LDD 3.24(3535) chips |
| Dimming Function | Yes | Yes (Dimmable Full Spectrum light) | Yes | Yes |
| Variable Spectrum Control | Yes (Need to cooperate with special controller) | NO | NO | NO |
| Independent far red | NO | 730nm Far Red：20W | NO | NO |
| Driver Qty | 4 | 4 | 3 | 3 |
| Driver | 2X240W、1X150W、1X75W | 2X240W、1X150W、1X75W | 2X240W、1X150W | 2X240W、1X150W |
| LED light bar | LR-P80 4'X4' | LR-F80 4'X4' | LR-S80 4'X4' | LR-EC80 4'X4' |
| Pin Header Connector | 5 Pin Header | 5 Pin Header | 5 Pin Header | 5 Pin Header |
| Backboard materials | Two-layer glass fiber board + Insulation tape | Two-layer glass fiber board + Insulation tape | Aluminum plate | Aluminum plate |
| Dimmer | Dimmer （RS485) | Dimmer （0-10Vdc) | Dimmer （0-10Vdc) | Dimmer （0-10Vdc) |
| Dummy plug | Yes | Yes | Yes | Yes |
| Maximum number of lights can be controlled | 256 | 500 | 500 | 500 |
