LED Power Supply
Description
Contact Supplier
Description

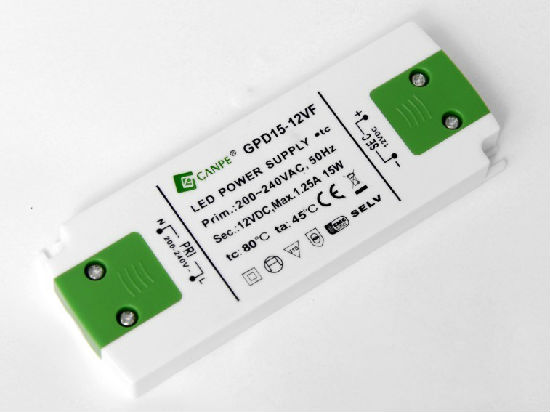

This LED driver is housed in a PC rectangular case that boasts a super-thin design. It is integrated circuits to drive strings of high-brightness LED efficiently. It can be applied on a wide range of lighting applications for versatile use.
• Made of PC material.
• Super-thin design.
• Input voltage: 200-240VAC.
• Input frequency: 50Hz.
• Output power: 15W.
• Constant output voltage: 12VDC.
• Max. output current: 1.25A.
• Dimension: L133 x W50 x H13.5mm.
• TA: 45℃.
• TC: 80℃.
• Safety standard: EN 61347-1:2008 EN 61347-2-13:2006 EN 60598-1:2008 and A11:2009.
• EMI standard: EN 55015:2006, A1:2007 and A2:2009.
• EMS standard: EN 61547:2009, EN 61000-3-2:2006, A1:2009, A2:2009 and EN 61000-3-3:2008.
• Certification: CE, RoHS and TUV.
• Made of PC material.
• Super-thin design.
• Input voltage: 200-240VAC.
• Input frequency: 50Hz.
• Output power: 15W.
• Constant output voltage: 12VDC.
• Max. output current: 1.25A.
• Dimension: L133 x W50 x H13.5mm.
• TA: 45℃.
• TC: 80℃.
• Safety standard: EN 61347-1:2008 EN 61347-2-13:2006 EN 60598-1:2008 and A11:2009.
• EMI standard: EN 55015:2006, A1:2007 and A2:2009.
• EMS standard: EN 61547:2009, EN 61000-3-2:2006, A1:2009, A2:2009 and EN 61000-3-3:2008.
• Certification: CE, RoHS and TUV.
