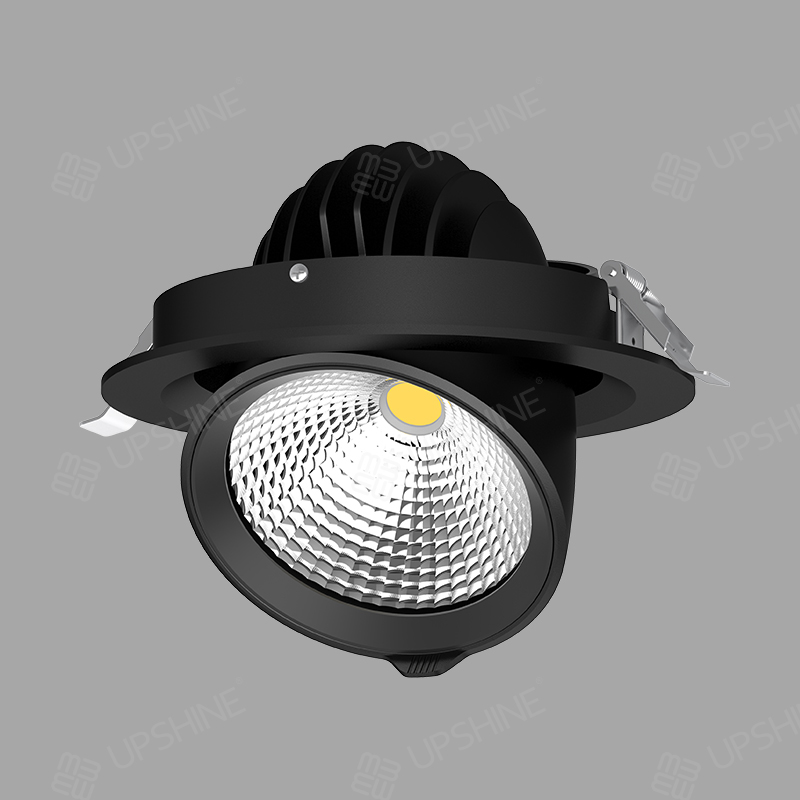

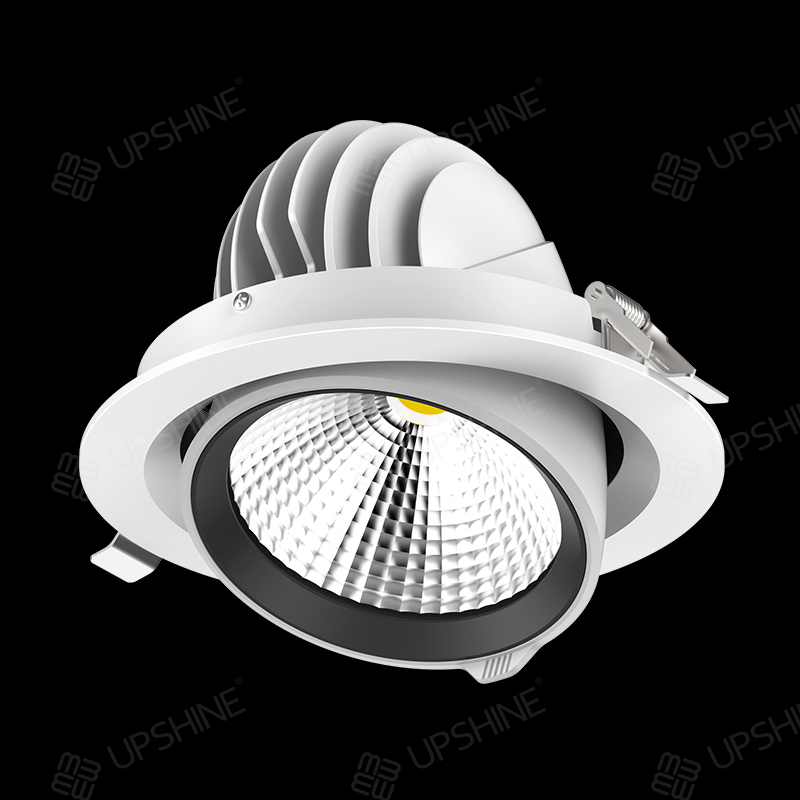

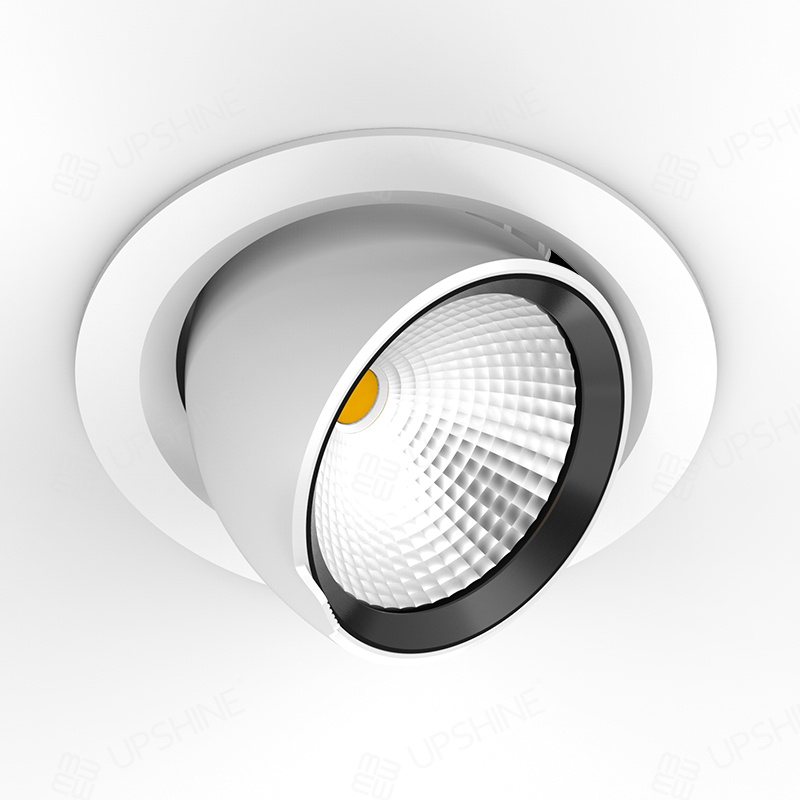

LED Scoop COB Downlight (DL77)
Share this page
Production Lead Time:
7 day(s)
Model No.:
DL77
Colour:
white black silver
Port:
Shenzhen
Type of Payment:
T/T, L/C, Pay Pal
Minimum Order Quantity:
1 carton
Voltage(V):
AC200-240V
Certification:
RoHS, SAA, CE
Wattage(W):
10W 15W 20W 35W 45W
Body Material:
Aluminum, Polycarbonate (PC)
Is Dimmable:
Yes
Power Source:
AC
Style:
Modern
Install Style:
Embeded
Description
Contact Supplier
Description
  • 15°,24°, 36°, 45°,60°  Beam angle
  • Rotatable angle:350 ° horizontal、Vertical 35 degrees
  • IP20, DIM to Warm, CRI80,CRI90, CRI97 2700K 3000K 4000K 5000K

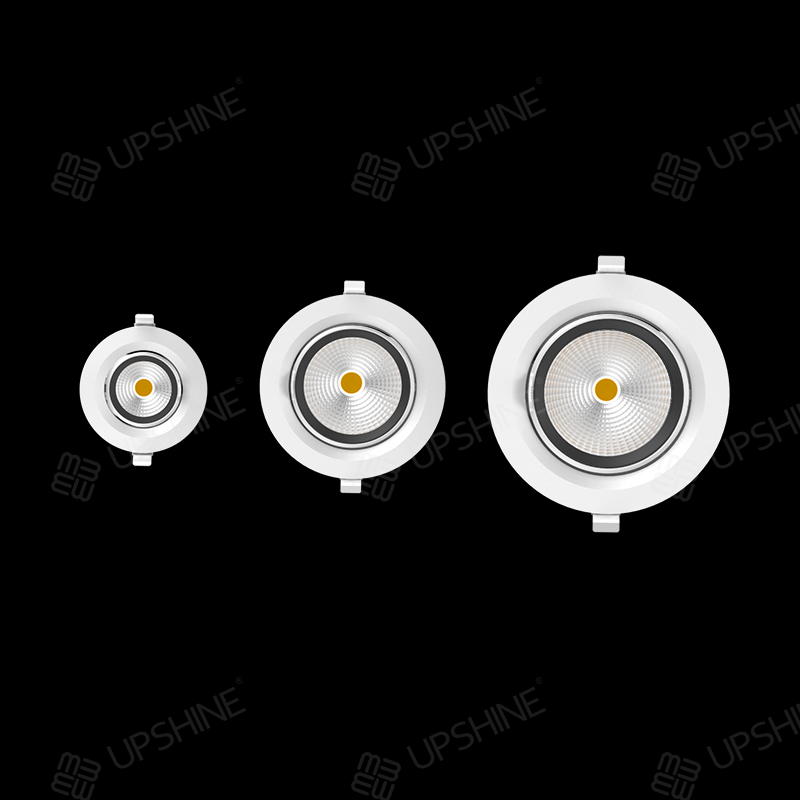

  • Size: diameter96*68mm(10W), Cutout85-90mm diameter145*102mm(15W 20W), Cutout120-130mm
  • diameter180*128.5mm(35W 45W), Cutout165-170mm

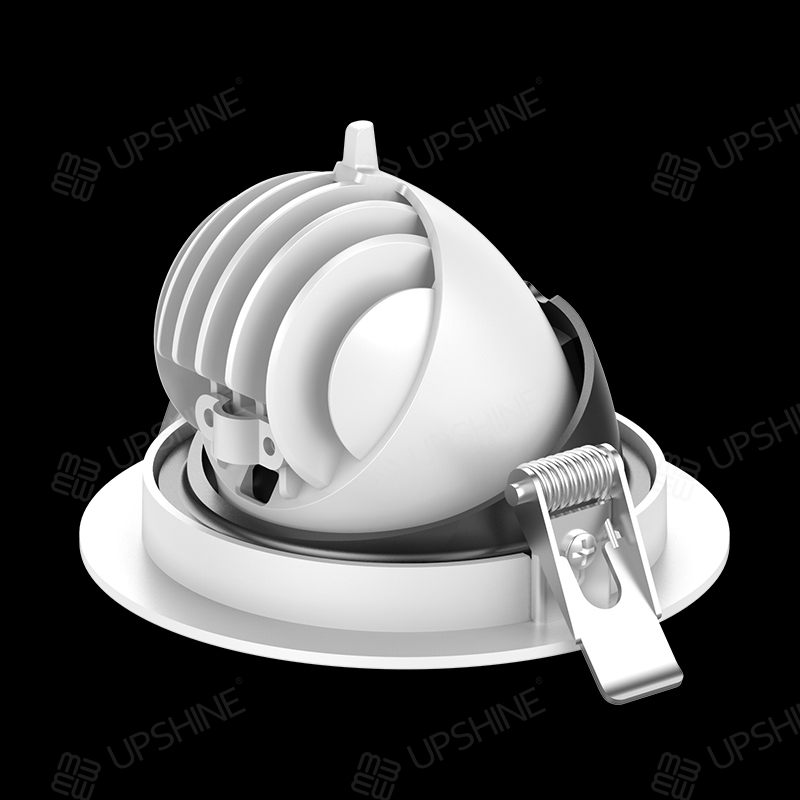

DL77 COB downlight is unique designed with reflector and Citizen COB high power LED chip. ADC12 die-casting aluminium profile provides excellent thermal dissipation. Adjustable lighting direction provides all possible lighting effects. Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.

- Up to 70% energy saving compared to standard CFL

- Long lifetime of 40,000 hours

- Dimmable when using triac dimmer

- 24°/45°/60° wide beam angle

- Ø165-170mm cutout

- CCT: 2700K 3000K 4000K 5000K

- No UV/IR light

- Environment friendly, without Mercury or any other hazardous substances

It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
