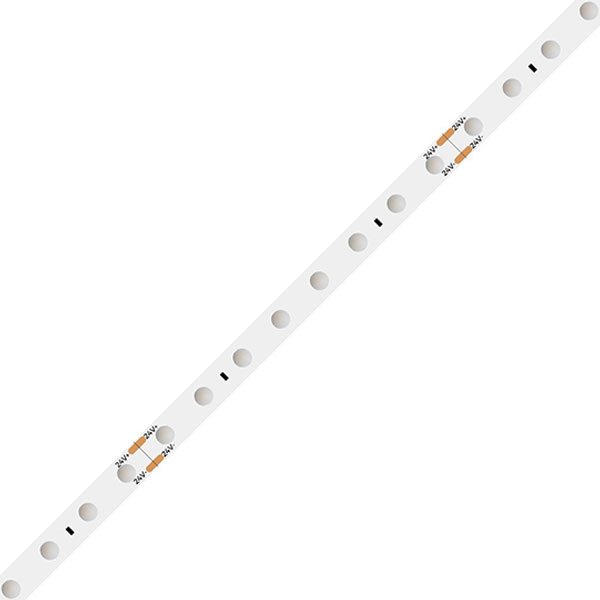

    LED Strips-CSP-dot Series
    Share this page
    Production Lead Time:
    7-15 days day(s)
    Shipping Method:
    Logistics delivery
    Brand:
    COLORS
    Led:
    CSP
    FPCB:
    2oz
    CRI:
    90
    Typ.Power:
    4.3W/M
    Max.Power:
    5.3W/M
    Min Cut:
    100mm
    Luminous flux:
    440LM/M@4000K
    Warranty:
    5years
    Product Certification:
    UL,CE
    Operating temperature:
    -40~60°C;Tc:75°C(max)
    Description
    Contact Supplier
    Description

    【Precautions】

    · Please drive the led strip with 24VDC isolated power, and the ripple of the constant voltage source should be less than 5%.

    · Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.

    · Do not fold it in case any damage of LED beads.

    · Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.

    · Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with   the voltage of the    strip to avoid damage.

    · LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -40℃~60 ℃. Storage temperature: 0℃~60℃. Please use the strips without waterproof  within indoor environment with humidity less than 70%.

    · Please be careful during operation. Do not touch the AC power supply in case of electric shock.

    · Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

    · Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).

    · Do not scratch the product when IP processof the product is NA. Ultraviolet rays will damage the nano-layers on the product and seriously affect the life of the product.
