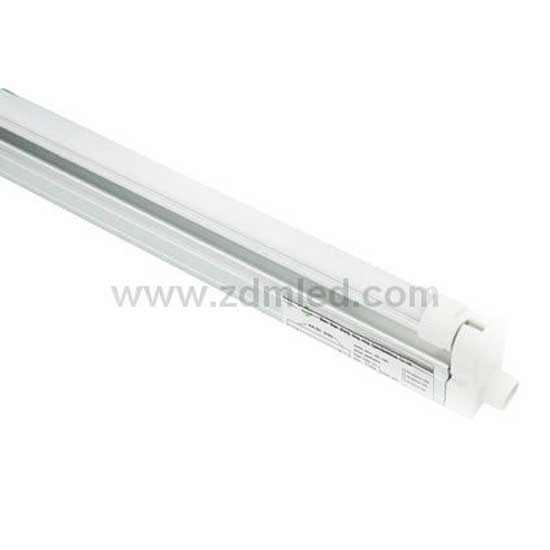

LED T5 Tube Lamp
Production Lead Time:
6 day(s)
Model No.:
ZDM-T5-120CM-210M-SP
Size:
16mm x 1,200mm
Description
Contact Supplier
Description
This LED tube lamp is an energy saving and eco-friendly choice of lighting equipment. It is suitable for use in a range of indoor venues such as office, school and shopping mall. This well designed tube lamp boasts a long life and requires little maintenance.
- Integrated with imported ultra brightness, low lumens depreciation.
- Super energy saving 90%, eco-friendly, no mercury or lead
- Lifespan: over 50,000 hours.
- Modern and fashionable appearance.
- With driver design is for an external power supply and an isolated low-harmonic output, safe and reliable, with over-current, over voltage, open circuit, short circuit protection, lightning protection, etc.
- No infra red or ultraviolet light radiation, no flicker.
- Color temperatures (3,000-3,500K warm white, 6,000-6,500K white).
- The high color rendering index provides clearer lighting.
- Low voltage and current, less heat, no security risks.
- For use in hotels, shopping malls, offices, hospitals, buildings, art galleries, restaurants, bars, clubs, cafes, exhibitions, booth lighting, and other places.
- LED chip brand: Epistar, Edison, Bridgelux, Cree and so on.
- LED chip size: 13um c 13um.
- LED chip encapsulation: SMD3014.
- LED chip quantity: 210pc.
- LED light efficiency: 100lm/W.
- LED white light tube Vf: 3.2-3.4V/20mA.
- LED power per lamp: 18W.
- Luminaire efficiency: 90%.
- Color rendering Index: >85Ra (warm white)/>80Ra (nature white).
- Beam angle: 120 degrees.
- Brightness attenuation: 3%-5% 1KH.
- Light color: warm white, nature white, cool white.
- Color temperature: 2,500K-3,500K/6,000K-6,500K/7,000K-8,000K.
- Circuit protection: over-current protection, short-circuit protection, over-voltage protection, high voltage surges protection.
- Input power voltage: AC 85V-260V (47-63Hz)/AC110V/AC220V.
- Output power consumption: 10W, 15W, 18W.
- Operating temperature: -20°-+50°.
- Operating humidity: <90%.
- Storage temperature: -20°-+60°.
- Storage humidity: <95%.
- LED lamp lifespan: 50,000 hours.
- Relevant certificates: CE, RoHS.
- Warranty: 2 years.
- Light type: T5 LED fluorescent tube.
- Gross weight: 400g.
- Base type: T5.
- Housing material: aluminum alloy+ PC.
- Housing material color: milky, transparent.
- IP level: IP54.
