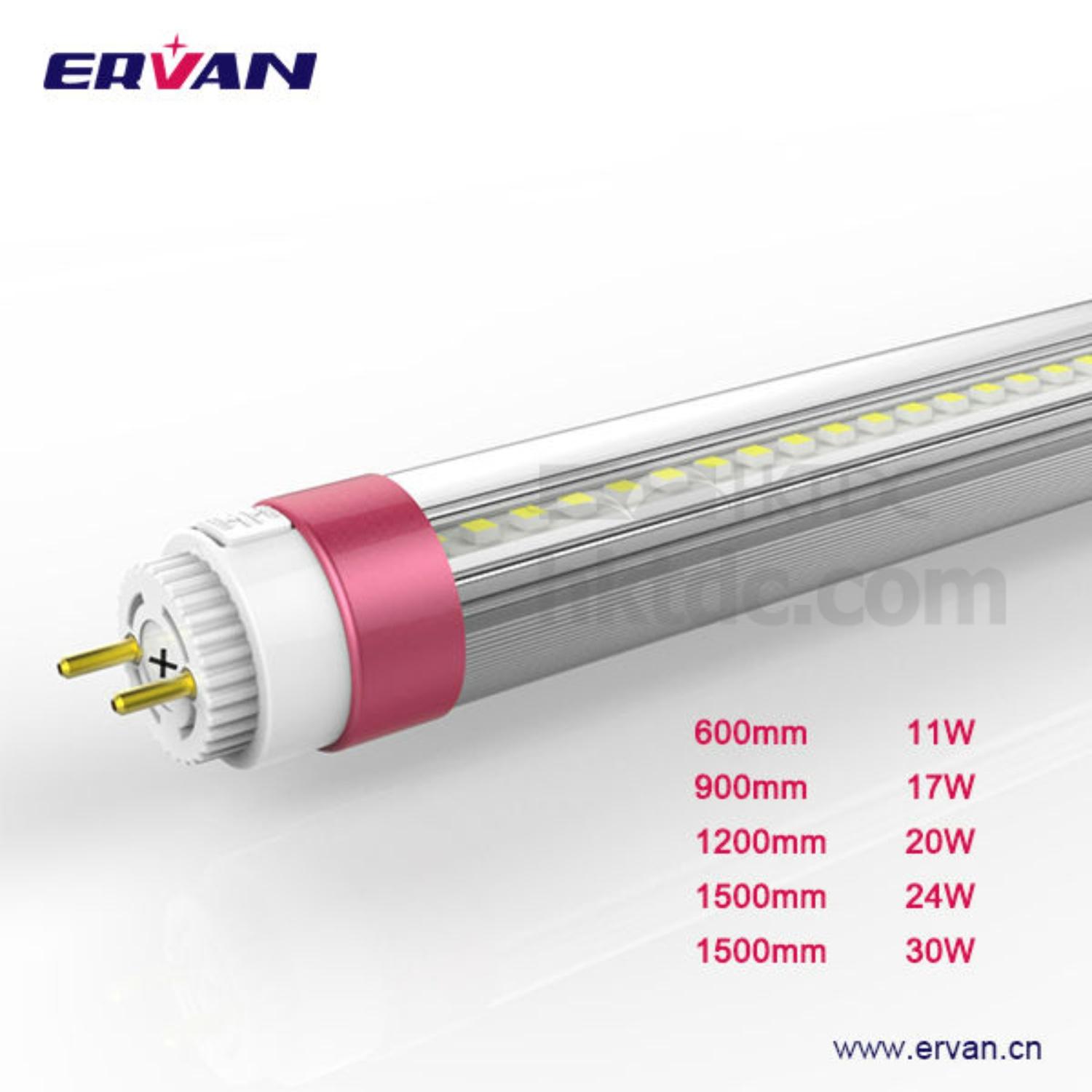

Dimmable, residential, daylight white, 1-10V LED T8 tube SMD3528 90cm with SAA CE listed

Description:

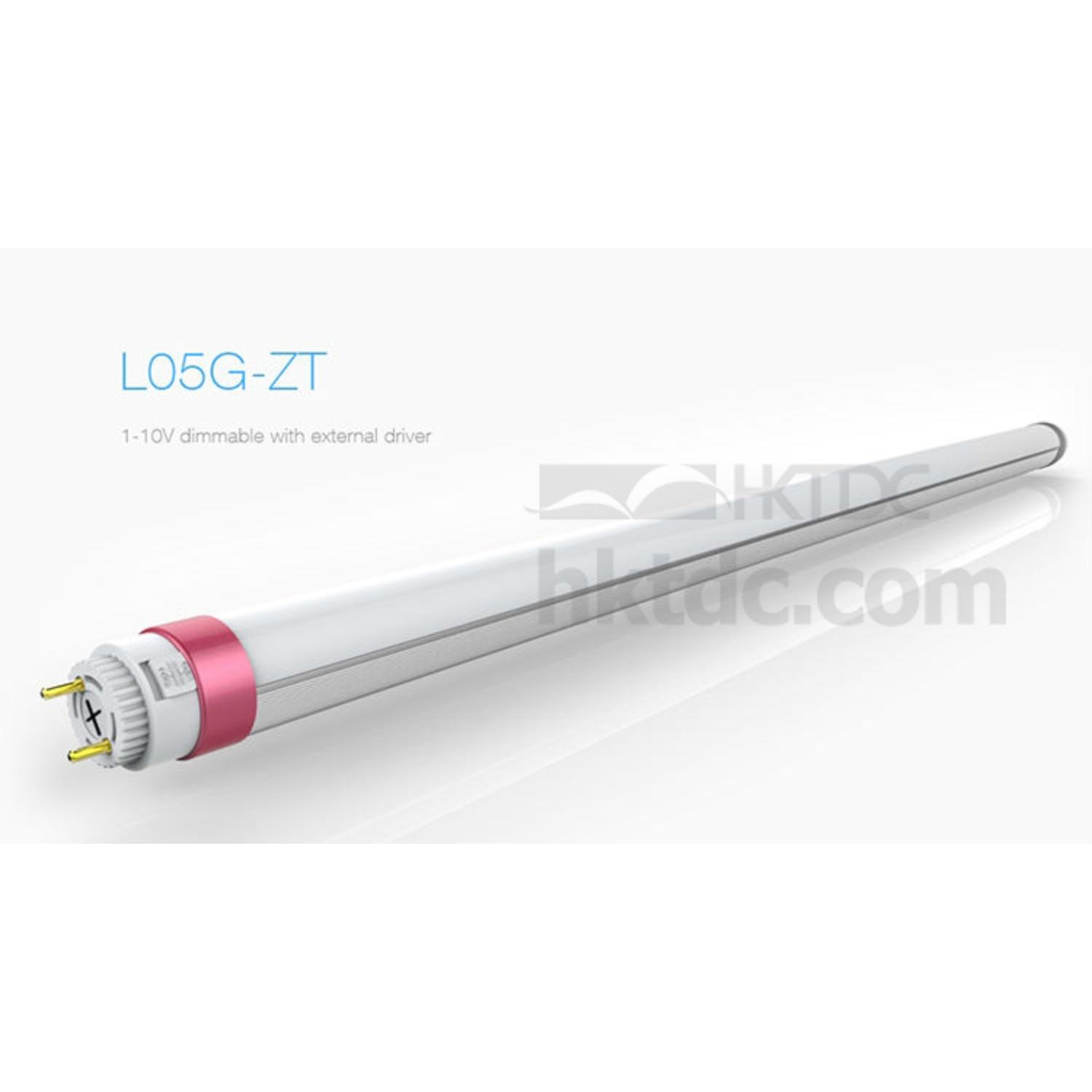

Featuring dimmable capacity, this LED T8 tube offers flexibility for users to switch its brightness. 1-10V.
Mercury-free design alleviates the worries of health hazards

Feature:

• Lockable and 180 degree rotating end cap, ensure best visual result.patent
• Attractive design with color ring.
• Energy saving:90%
• High brightness: adopt high quality LED chip with 30mA current.
• Power saving:70%
• Special circuit design: each led works separately to avoid the situation when a single broken led affects the whole tube.
• Instant on: easy installation, no warm up time
• Life cycle:50,000hrs
• Warranty:3years
• Low maintenance: robust construction.
• Maintenance free
• Environmental- friendly: no UV, no lead, no mercury, no Buzzing, no Flickering
• No glass: Aluminum and + high strength PC cover, better heat dissipation
• Safe: High Shock/Vibration Resistance, Single end power anti electric shock, Isolated power.

Application:

• Ideal for residence, home, office, exhibitiong,public,ect lighting.
• replacement for conventional fluorescent tubes.

Certification: SAA,CE

Specifications:

• Light source:SMD3528LED
• Luminous :2300+-10%(Clear Lens) Frosted lens
• Voltage:  AC100-277V
• Frequency:  50/60HZ
• Power Factor: >0.93
• Power  Efficiency: >0.87
• THD:<20%
• Operating  Temperature: -20°C to 40°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity:10%-80%
• Storage Humidity: 10%-80%
• CRL: Ra: >80
• CCT: Warm White 3000k , daylight white 4000k, pure white 5500k, cool white 6500k
• Warranty:3years

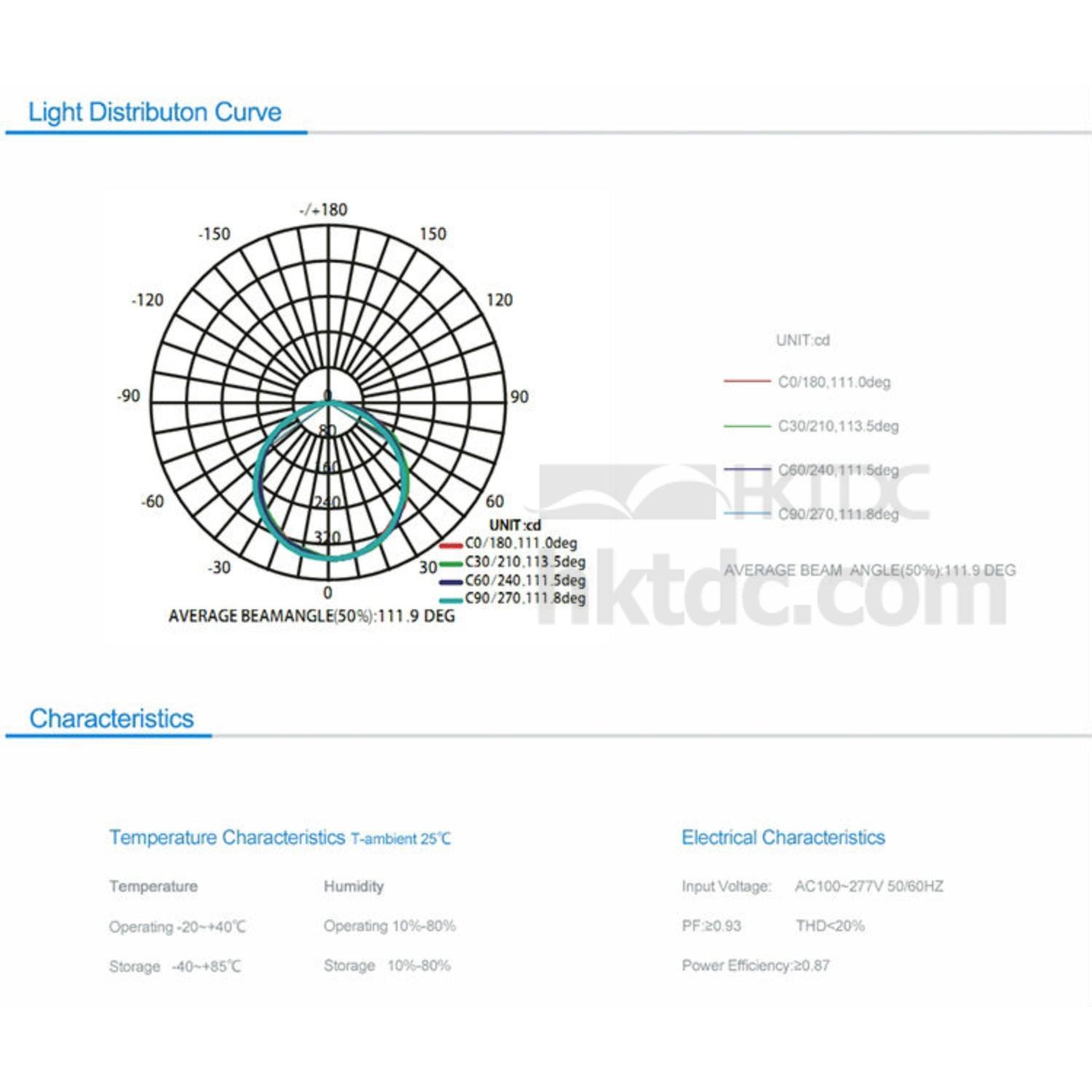

• Beam angle:120°
• PC lens: frosted/clear.

Package:

• Net weight: 368.2g.
• Dimension: Φ26 x 1198 (5ft).
• Packaging: 1pc/box, 50pcs/ctn.
• Carton measurement: 165 x 48 x 26cm.
• Pallet:14cartons/pallet

Payment: L/C, T/T.
Delivery:

• 10 days for sample
• 18 days for mass production.
• MOQ:100pcs

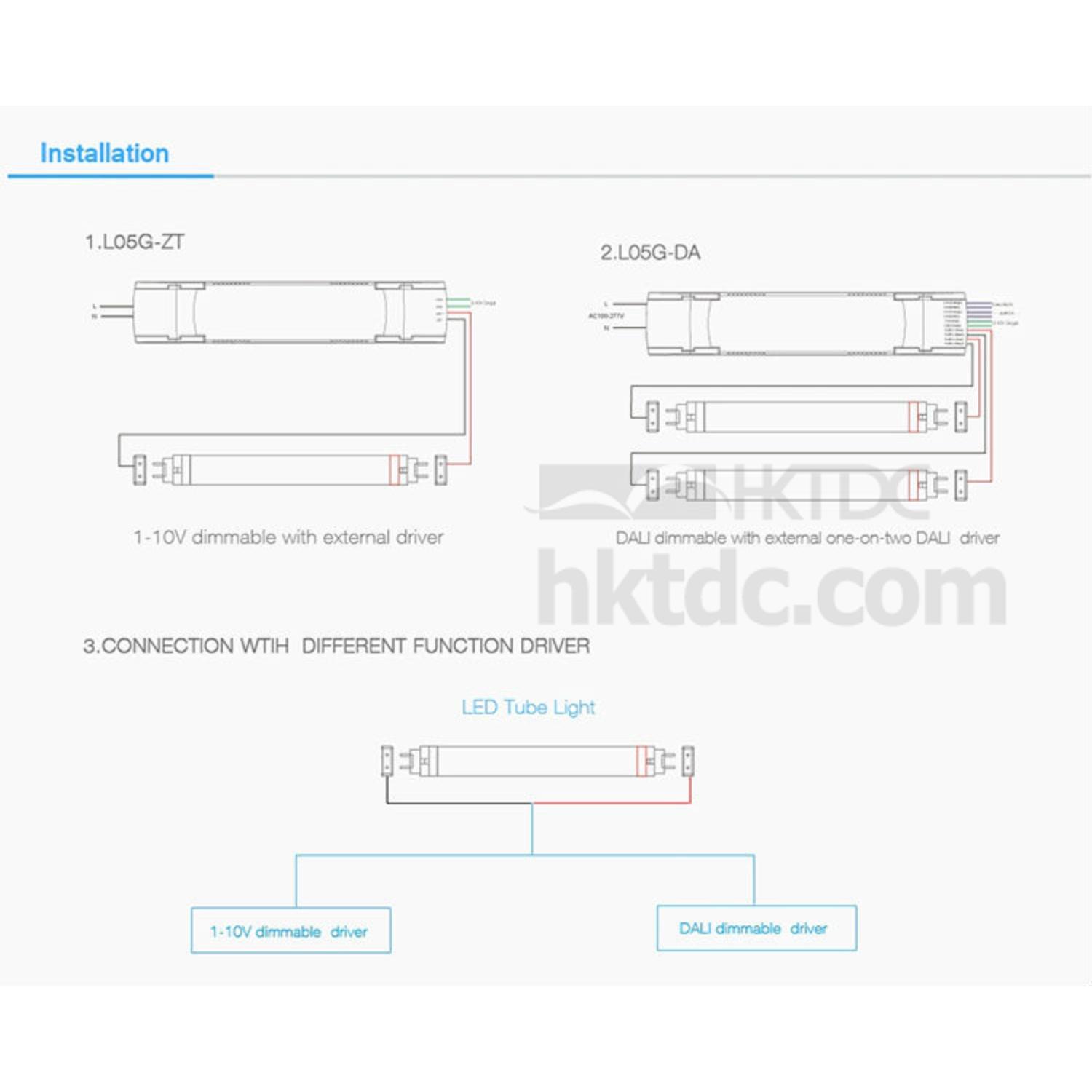

Installation:

• When LED tubes are replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse, simply and conveniently.
• Electronic ballast must be by-passed by a registered electrician.
