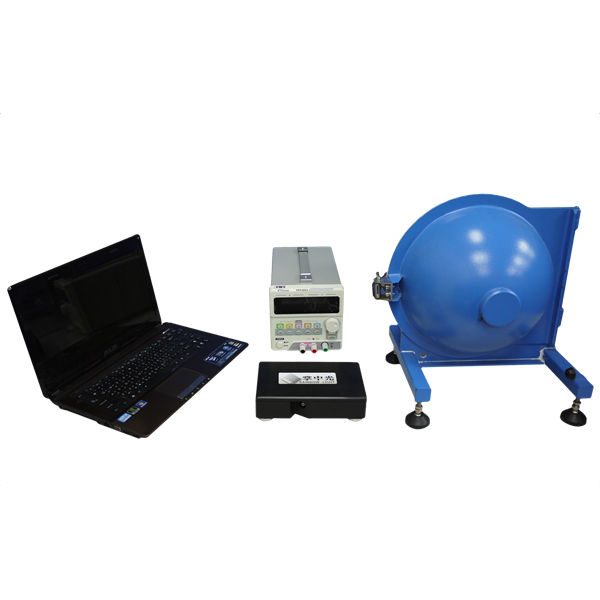

Rainbow Light LED Testing / Measuring Equipment
Rainbow-Light uses the latest MEMS technology to make the Micro-Spectrometer and applies to LED integrating sphere system which has a pretty mature and complete software and hardware, not only providing users to do LED standardized testing, but also satisfying the market demand and having the segmentation on LED quality. Producers and consumers can get better quality control on LED.
Features
Rainbow-Light uses the latest MEMS technology to make the Micro-Spectrometer and applies to LED integrating sphere system which has a pretty mature and complete software and hardware, not only providing users to do LED standardized testing, but also satisfying the market demand and having the segmentation on LED quality. Producers and consumers can get better quality control on LED.
Features
- System calibration and lumen calibration function available.
Easy DIY calibration and lots of calibration fee saved.
Calibrate with designated testing equipment so the test result can be the same. - Can be applied to different accessories.
- Pair with integrating sphere 0.3m,φ0.5m,φ1.0m,φ1.5m
- Volage:DC 32V or AC 110-220V
- Provide professional software.
- Model: LSM-01
- Spectrometer Resolution: 0.8 – 1.5 nm FWHM
- Wavelength Range: 380 – 780 nm
- Signal-to-noise Range: 0.1 %
- Spectral deviation: 0.04 %
- Integration Time: 1 ms – 24 s
- Input Fiber Connector: SMA905
- Interface: USB, GPIO
- Power: Default USB Power
- PC Operating System: Windows XP / Windows 7 / Vista
- Design / Made in Taiwan
- Model: LSM-02
- Spectrometer Resolution: 4.2 – 5 nm FWHM
- Wavelength Range: 380 – 780 nm
- Signal-to-noise Range: 0.3 %
- Spectral deviation: 0.12 %
- Integration Time: 1 ms – 24 s
- Input Fiber Connector: SMA905
- Interface: USB, GPIO
- Power: Default USB Power
- PC Operating System: Windows XP / Windows 7 / Vista
- Design / Made in Taiwan
