LED Tube | Environmental Protection | Home Products, Lights & Constructions

Dongguan Ausllast Electronics Co Ltd

LED Tube

Production Lead Time:

21 day(s)

Brand:

Ausllast

Colour:

White

Size:

2FT-3FT-4FT-5FT-6FT

Port:

Shenzhen

Type of Payment:

30% deposit

Minimum Order Quantity:

100

Voltage(V):

100-265V

Certification:

CE, EMC, LVD, SAA, C-tick; IP66

Base Type:

Number of LED Chips:

208

Applicable:

Bathroom, Commercial, Outdoor

Beam Angle (Degree):

180

Colour Temperature:

As per client request

Average Life (hour):

32000

LED Chips Brand:

Hongli Tronic

LED Chips Model:

2835

Description

Contact Supplier

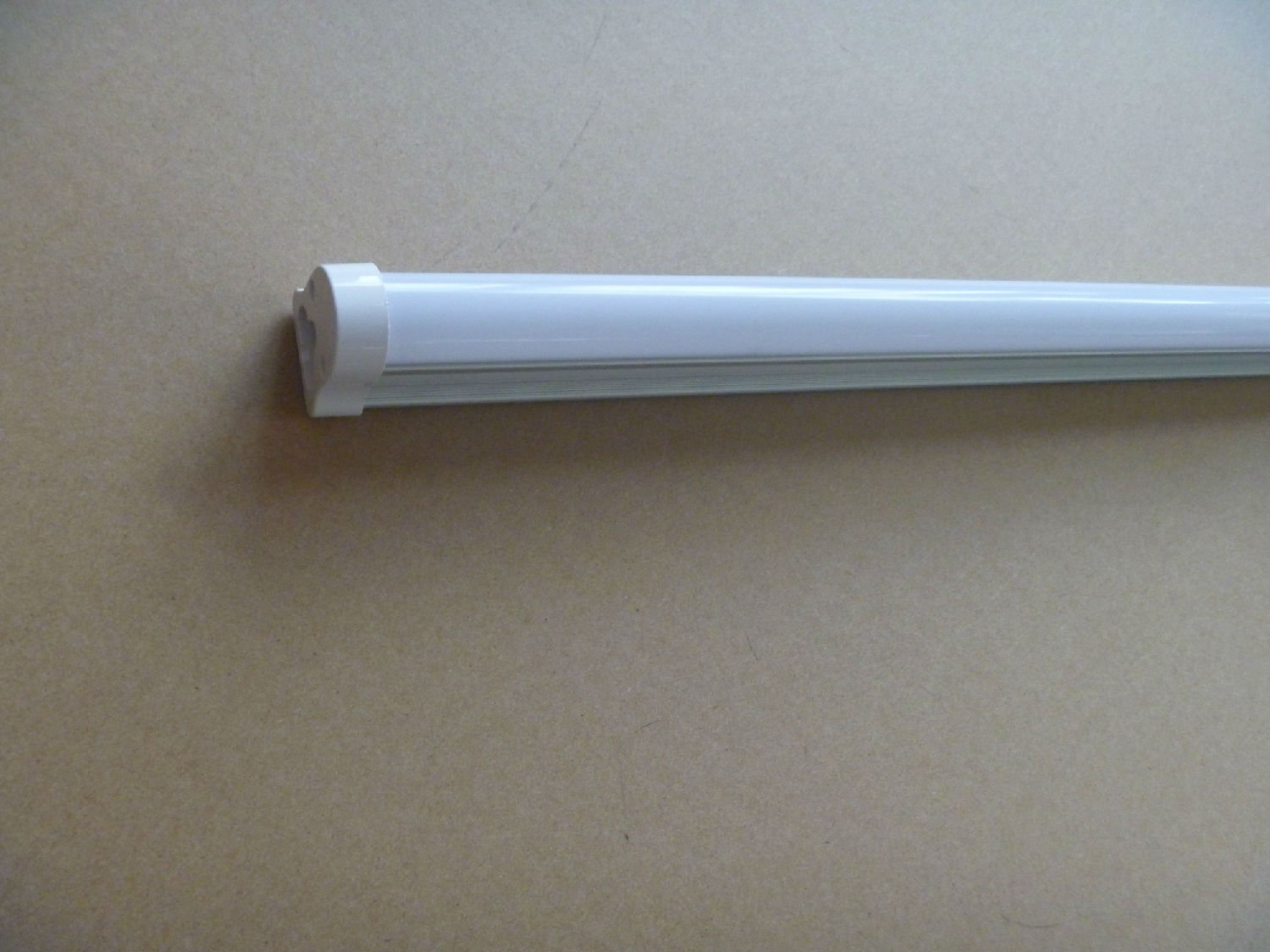

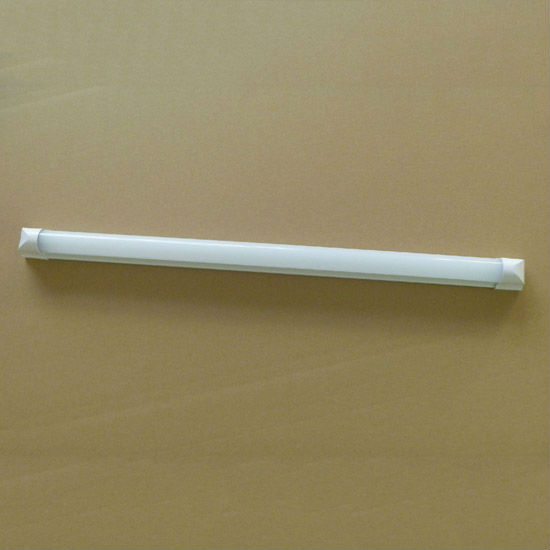

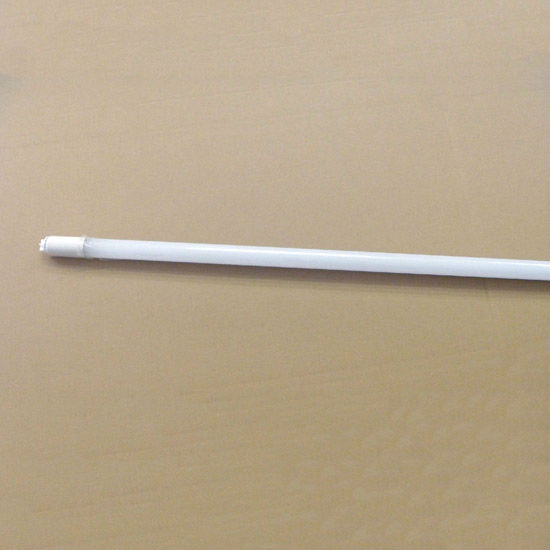

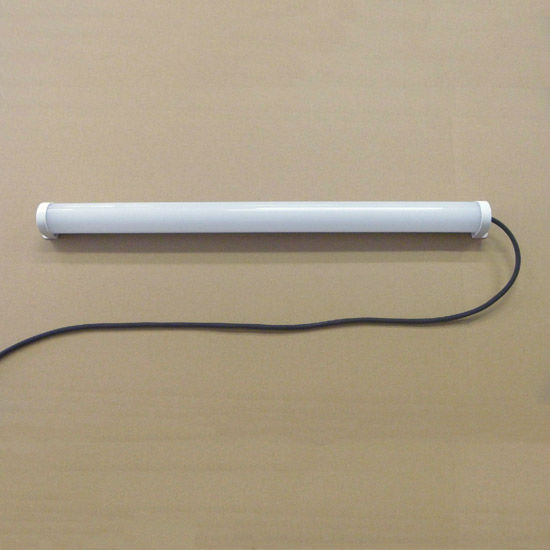

T12 LED patented weather Tri-proof tube
Patent No.: ZL 2014 2 0338655.5
Materials: 1mm opaque PC lens, 0.4mm aluminum batten and patent caps. Commercial durability level fittings
IP rating: IP66
Tube diameter: 38mm (T12)
Mounting way: Screw installation
Size: 300mm, 600mm, 900mm, 1200mm, 1800mm and 2400mm
Efficacy (single LED): 140LM/W
Efficacy (SSL): 95LM/W
Application: Standard conditions, public use areas
Driver type: Constant current LED driver
Driver efficiency: 92%
PF: 0.95
Input voltage: 90-265VAC
Output voltage: 80VDC
Output current: 110mA per 300mm
LED type: 2835 0.2W Hongli Tronic
LEDs Quantity: 2X26pcs per 300mm
Beam angle: 180°
Operating LED junction temp in SSL: 68℃
CRI: 82
Life at nominal operating temp: 50000 hours
Warranty: 3 years
Colour temp: As per client request
Safety Standard: IEC/AS/NZS EN 60598-1:2008, 60598-2-1:1989, 62031:2008, 62493:2010
EMC Standard: EN/AS/NZS 55015:2013, 61547:2009, 61000-3-2:2006
Certificate: SAA; C-tick; CE-LVD; CE-EMC; IP66 and LM-79

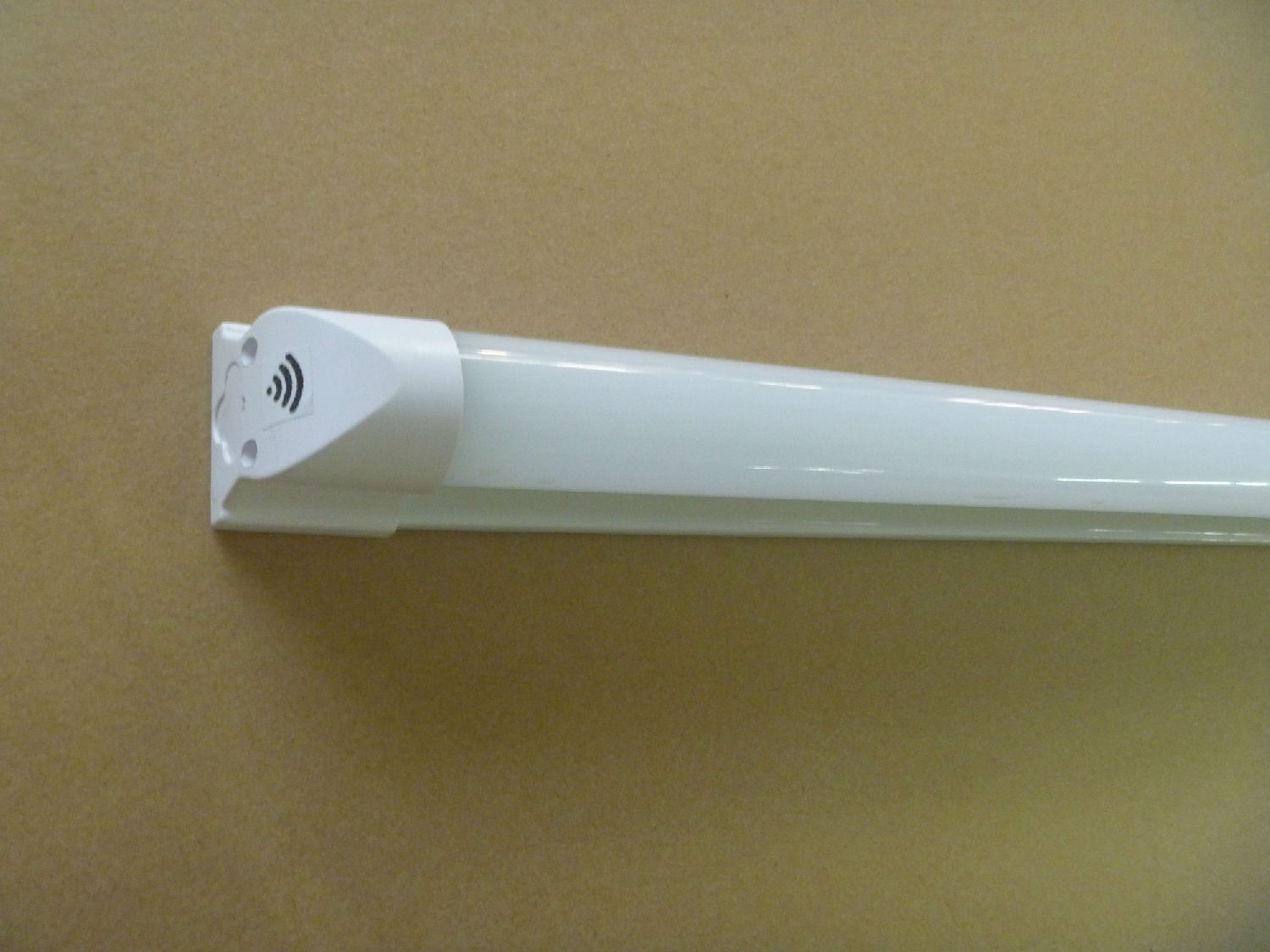

Available on request:Increasing microwave induction function
