Displayed here is a LED light tube with lockable rotating end caps and blue shining rings. It offers superior light quality and has outstanding resistance against shock and vibration. This LED light tube can significantly save energy and is great for replacing traditional light tubes.

Features:

• 4 feet VDE LED light tube.

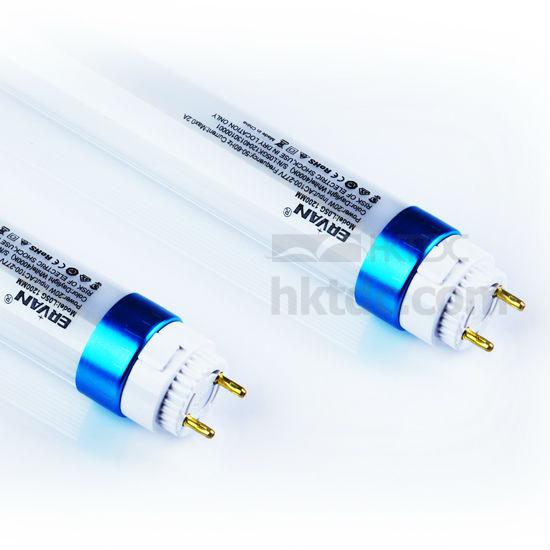

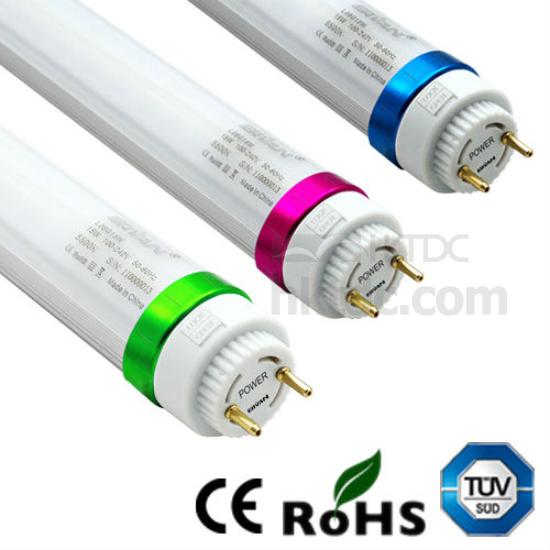

• With lockable rotating end caps and blue shining rings.
• LED's maintain flux is up to 6.8lm/w.
• Significant energy savings.
• Maintenance free.
• Mercury free.
• Superior light quality.
• Wide input: AC100-240V.
• Shock/vibration resistant.
• Plastic end caps to ensure passing 4000V HI-POT test.
• Special circuit design, each LED work separately to avoid a single broken LED affecting the entire tube.
• Long working life.
• Isolated power supply.
• Great for replacing traditional light tubes.
• European safety wired.
• Saving 70% on energy costs.
• UL, TUV (LVD/EMC) certificate.


Electrical specifications:

• Model, power, size (mm), LED quantity.:
• L05G, 11W, 26 588 (2FT), 108.
• L05G, 20W, 26 1198 (4FT), 216.
• L05G, 24W, 26 1498 (5FT), 240.
• Luminous (frosted lens), (clear lens):
• 980lm±10%, 1050lm±10%.
• 1800lm±10%, 2000lm±10%.
• 2200lm±10%, 2400lm±10%.
• Operation temperature: -20°C to 40°C.
• Voltage: AC110V-240V.
• Frequency: 50Hz/60Hz.
• Power factor: >0.95.
• Power supply efficiency: >90%.


Photometric specifications:

• LED luminous efficiency: up to 100lm/w.
• CRL: Ra. >70.
• CCT: warm white 3000K, daylight white 4000K, pure white 5500K, cold white 6500K.


Mechanical specifications:

• Light distribution: 120°.
• Isolate power supply.
• Latest lockable rotating end cap.
• Clear/frosted cover is available.
• Weight: 588mm/210g, 1198mm/368.2g, 1498mm/443.8g.
• Can be placed in conventional T8 or T9 fluorescent brackets and replace fluorescent tubes (remove ballast and starter before replacement).

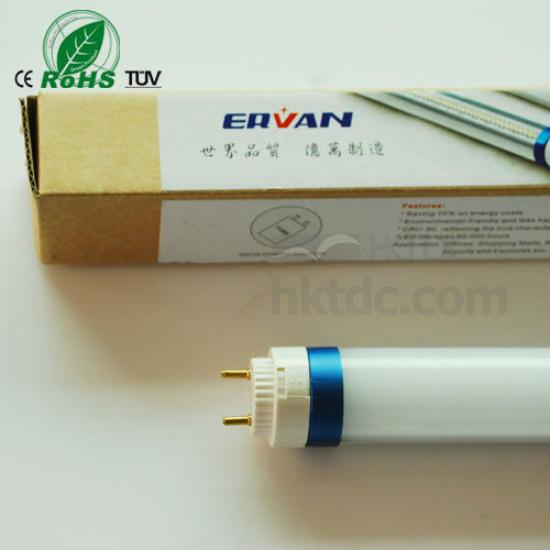

Packing:

• Length, gift box, qty/box, box size:
• 1200mm, 127 x 3.5 x 3.5cm, 25pcs, 133 x 24 x 24cm.
• Quantity, carton size, volume weight:
• 50pieces, 135 x 48 x 26 cm, 41kg.


Applications:

• Replacement for conventional fluorescent tubes.
• Supermarkets/factories/warehouses.
• Offices/residential/institution buildings.
• Schools/colleges/hospitals.
• Subways/railway stations/airports.


Installation:

• Note: make sure the power is turned off before installation.
• When the LED tube is replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse.
• Attention: only suitable for magnetic ballast, not electronic ballast.
• Electronic ballast must be by-passed by a registered electrician.
