LED scoop gimbal downlight (DL211A)
Production Lead Time:
7-14 day(s)
Model No.:
DL211A
Colour:
white, black
Size:
180*180*126mm
Port:
Shenzhen
Type of Payment:
T/T, L/C, Pay Pal
Minimum Order Quantity:
1 carton
Voltage(V):
AC200-240V
Certification:
SAA, CE
Wattage(W):
25W 35W
Body Material:
Aluminum, Polycarbonate (PC)
Is Dimmable:
Yes
Power Source:
AC
Style:
Modern
Install Style:
Embeded
Description
Contact Supplier
Description
Beam angle：60°
AC：200-240V
IP：IP40
Rotatable angle：350 ° horizontal、Vertical 40° degrees
CE,SAA
Color: black, white
diameter180*180*126, Cutout165-170mm

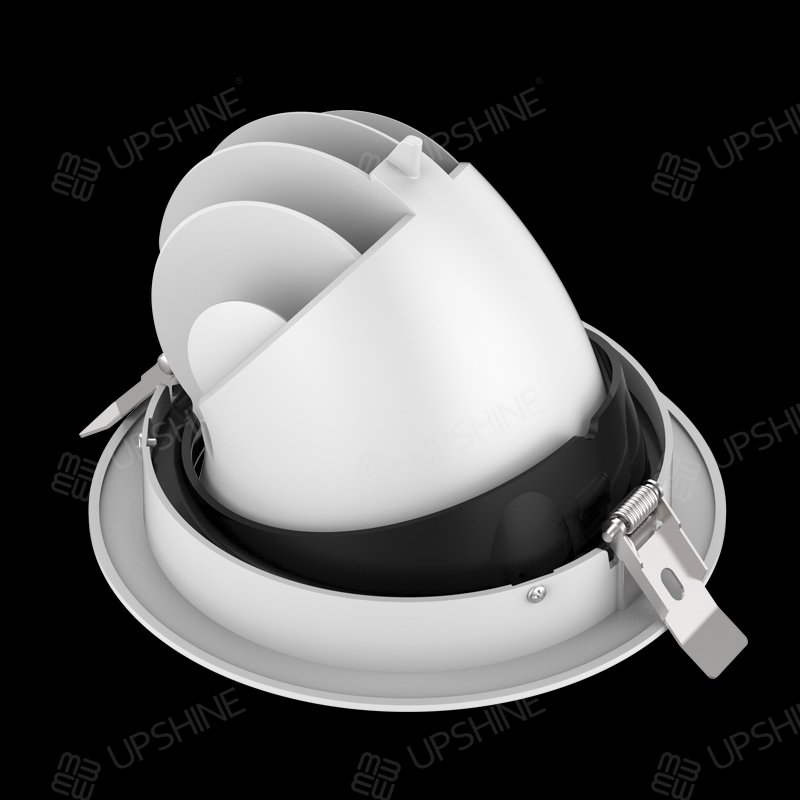

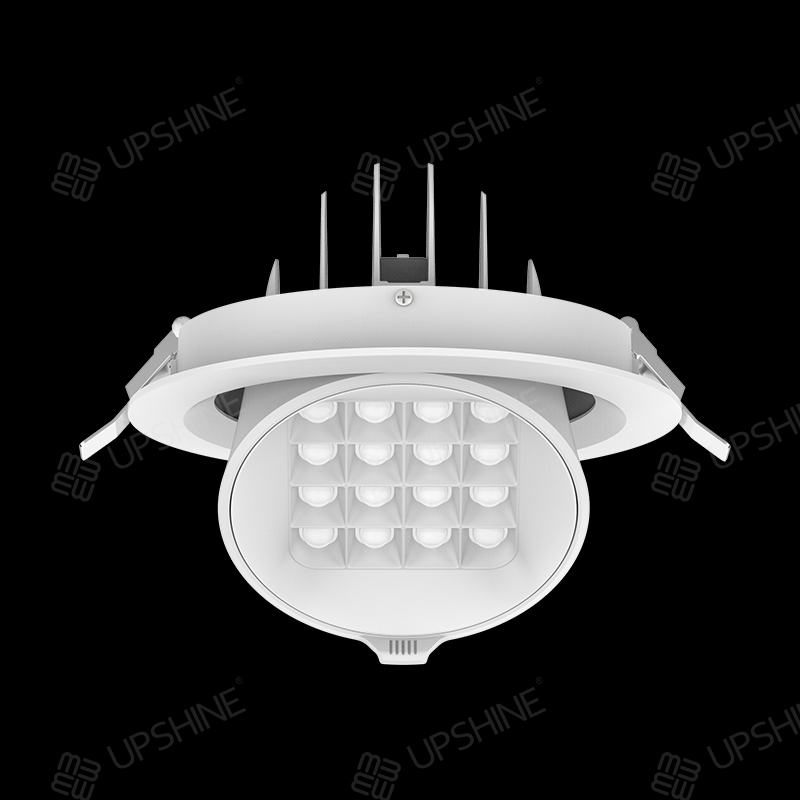

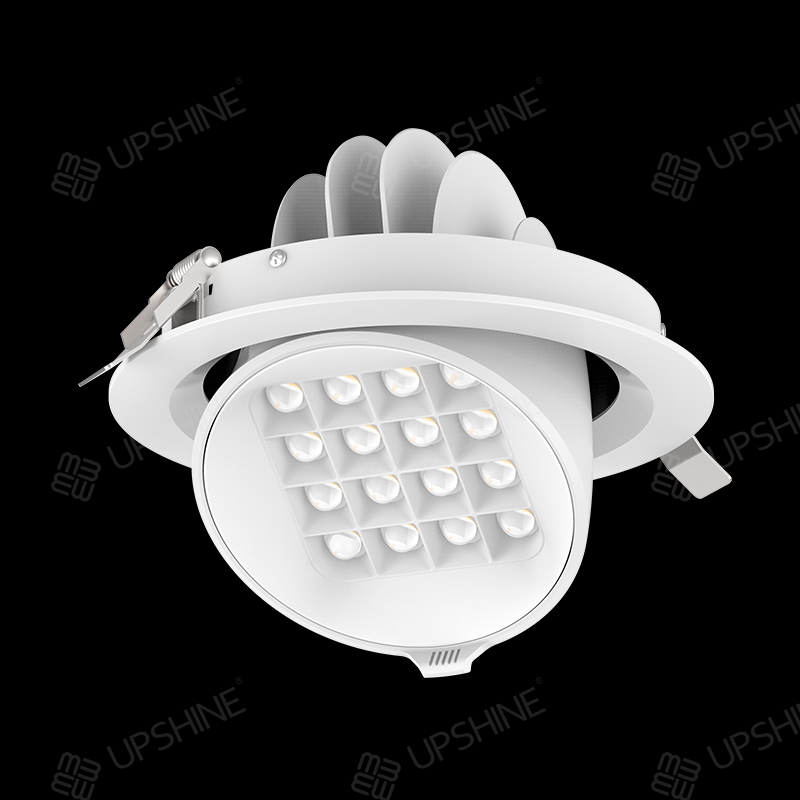

This scoop gimbal downlight with louver design and diffuser design options. Model A: Lens+louver reflector which is anti-glare design with comfortable eye visual. Model B: Adopt 1W 2835 LED chip and diffuser which offer a uniform light output and high light efficiency. ADC housing provides excellent thermal dissipation. 350 degree rotate horizontally and 40 degree rotate vertically, dimmable version achieves great dimming compatibility with worldwide brand dimmers, can be used in various applications.
- Two type options: A:Lens+Louver design & B:Reflector+ diffuser design
- 120lm/W high lumen for louver version- Triac dimmable
- UGR<22 for louver version
- Interchangeable CCT (3000K+4000K+5700K) for diffuser version
- 350 degree rotate horizontally and 40 degree rotate vertically
- Triac/0-10V/Dali dimming
- Replaceable external driver
It is suitable for supermarket, specialty store, show window, exhibition hall, etc.
