An one4all LED driver solution for premium application.

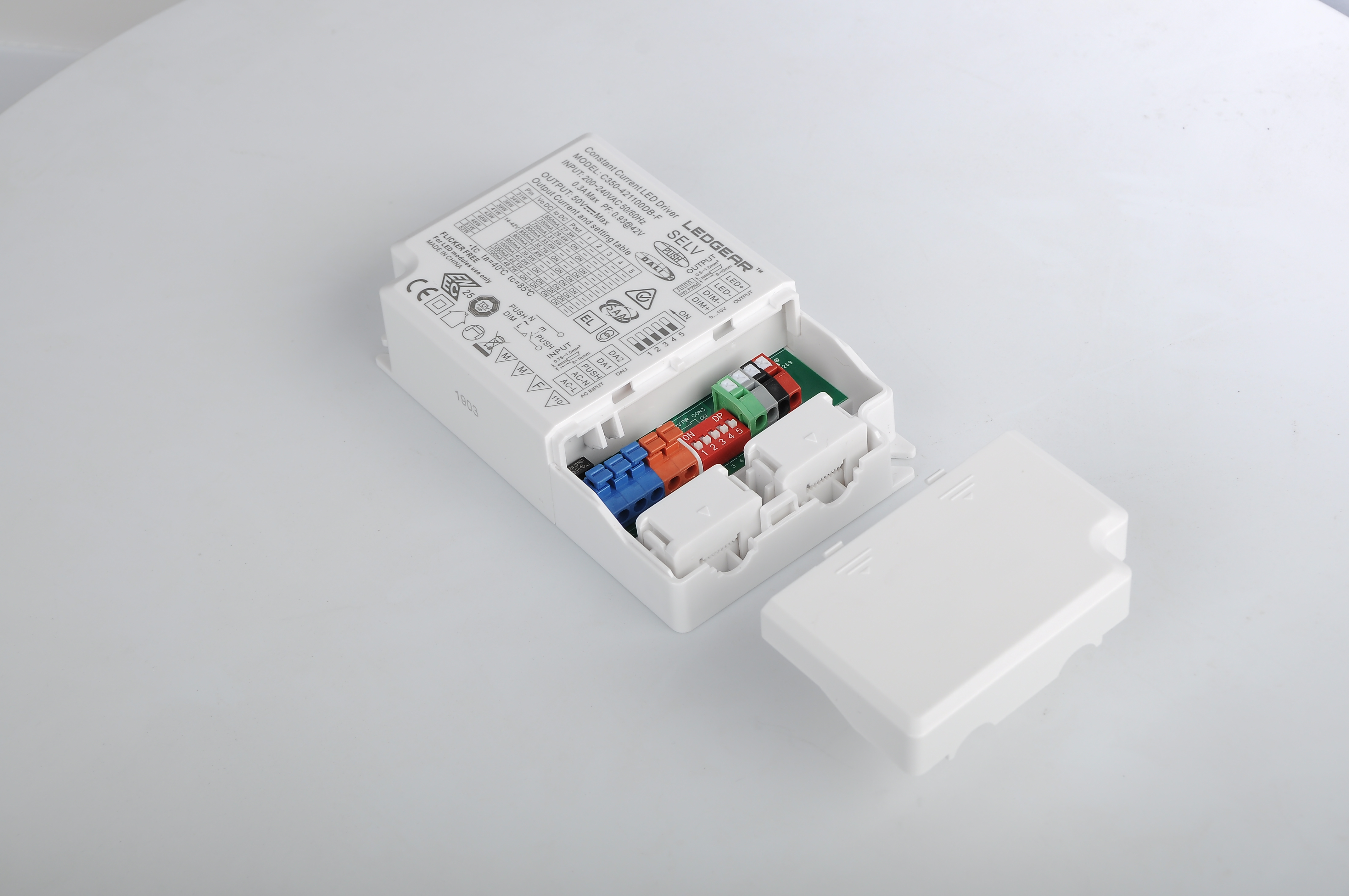

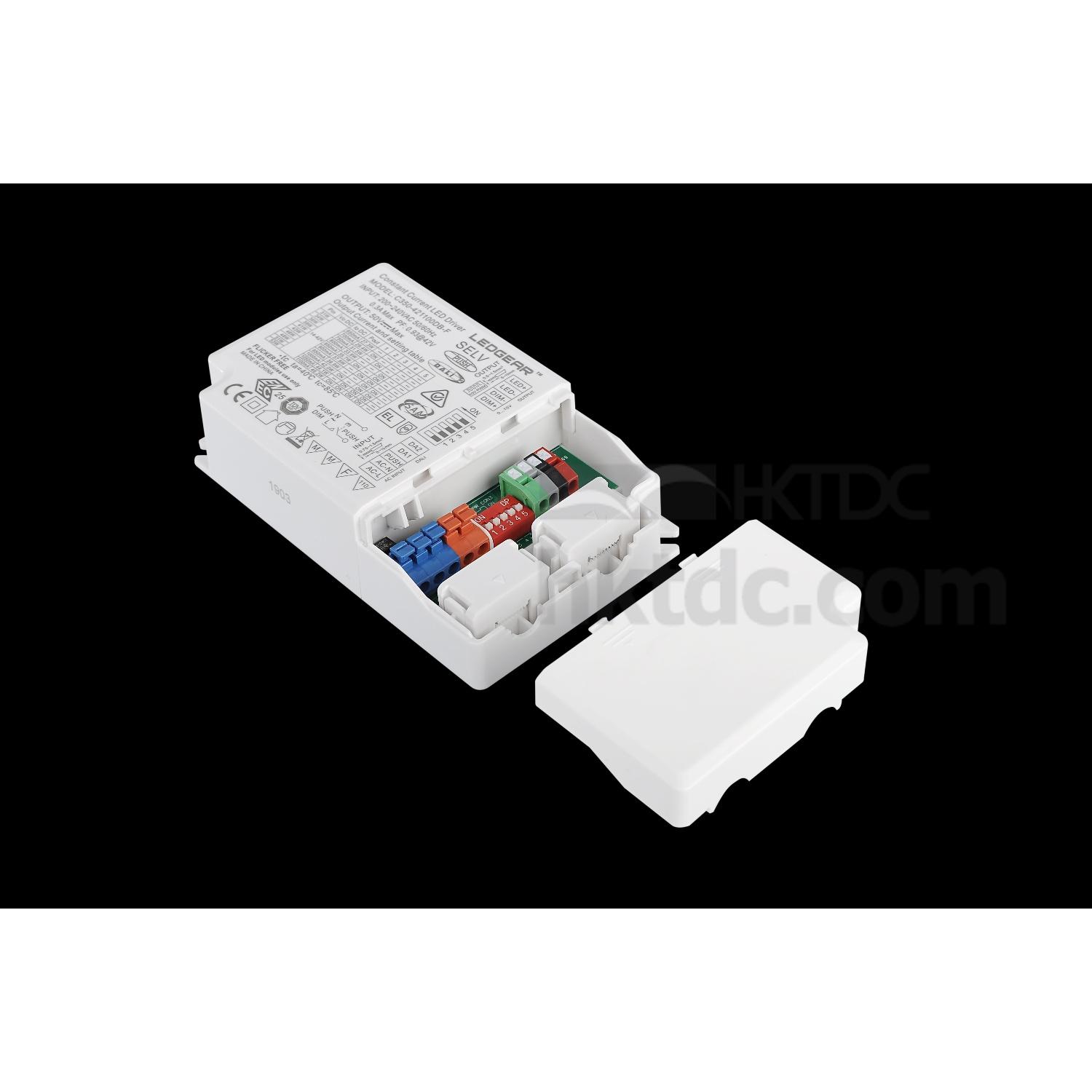

As a DALI member of DiiA, Kinglumi launched the fully functional LED electronics control gear(ECG) --LEDGEAR™ one4all version, it combinations DALI-2, Push-DIM, 0-10V and 10V PWM functions, and corridorFUNCTION for options. They are positioned and designed to reduce your inventory and make it one for all applications, with adjustable current from 650mA to 1100mA/250mA-600mA. LEDGEAR™ one4all ECG supply constant current output. Operation from 200-240VAC and offers output voltage ranging between 14V and 42V. The driver without fans is design to be able to operate ambient temperature from -20°C to 40°C under free air convection (no total enclosed). DALI Tested and approved according to IEC 62386 Part 102(DALI-2), 207.

Features

• One4all design(DALI-2, Push-DIM, 0-· 10V, 10V PWM, Resistance)
• Dimming range1%-100% (DALI, Push); 5-100%(0-10V, Resistance)
• DALI member, compatible with universal DALI masters
• Adjustable constant current output
• Independent ECG and with strain-relief
• ENHANCED amplitude dimming technology
• Permanent memory for DALI & Push dimming
• Grow wire tested 650° for 30S and 850° for 5S
• Reliable, Class II, SELV according EN 61347
• Working Ta=-25°C ~ +45°C
• 50,000 hrs nominal lifespan
• Five-year factory guarantee and lifetime technical support

Benefits

• Adjustable output current for less inventory
• Energy savings due to standby power<0.5W
• Flicker free with less than 3% flicker percentage
• Quick and easy installation

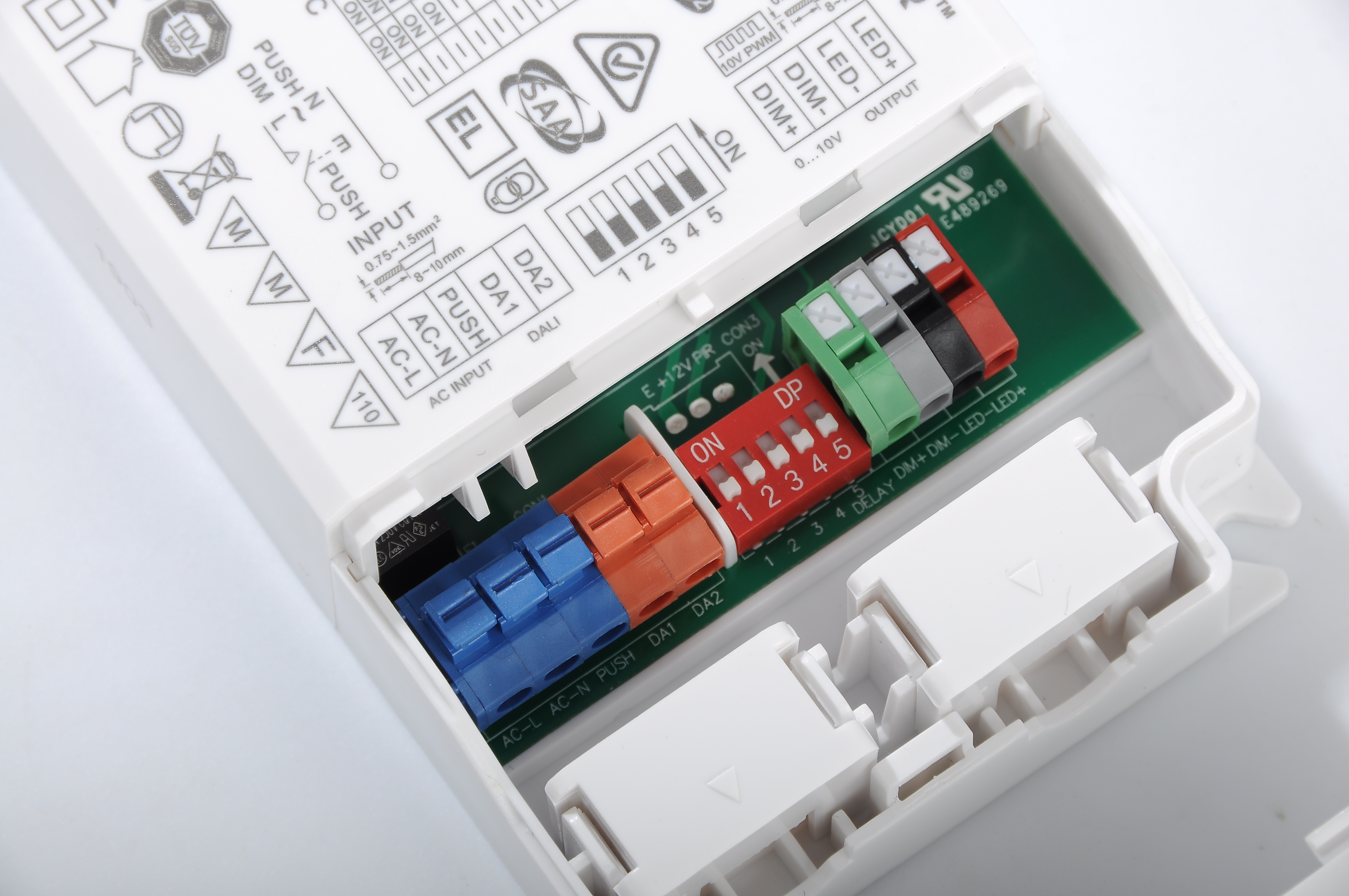

Connection Interface

• DALI DT6, Push-DIM, 0-10V(10V PWM, Resistance)
• Strain relief
• Terminal blocks: pus- fit terminals

Protections

• Over current
• Over voltage
• Short circuit
• Over temperature

Applications

• For spot light and downlight in retail and hospitality applications
• For panel light and area light in office and education applications

LEDGEAR® LED Drivers covers all indoor lighting with variety of Output Current and Voltage

1. Dimming Options: DALI-2, DALI DT8, Push-DIM, Bluetooth, Zigbee, Wifi, 0-10V, Triac, ON/OFF
2. Dimming Mode: AM, or AM+PWM
3. Driver Type: indepent with looping function, or built-in
4. Output channel: 1 channel, 2 channel(for tunable white)
5. Output current: 120mA to 2500mA
6. Output voltage: 4V to 150V
7. CLO, NTC, ELO functions programmable by NFC, or DALI
8. Both Constant current and constant voltage
9. AUX output for lighting sensors

More details: http://www.kinglumi.com/product-1613.html
