LEDLINE AG 1617S WHT
Production Lead Time:
25-35 day(s)
Shipping Method:
EXW
Brand:
JRLITE
Customization:
Yes
Feature:
Anti-glare UGR<19; Constant Current; IP67 outdoor
Material:
Silicone; Flexible PCB
Code:
:LEDLINE AG 1617S WHT
Light Emitting Direction:
Top Emitting / Horizontal Bend
Luminous Efficacy:
Up to 25 lm/W (Anti-glare output)
CCT Range:
2700K–4000K
Description
Certification & Document
Contact Supplier
Description

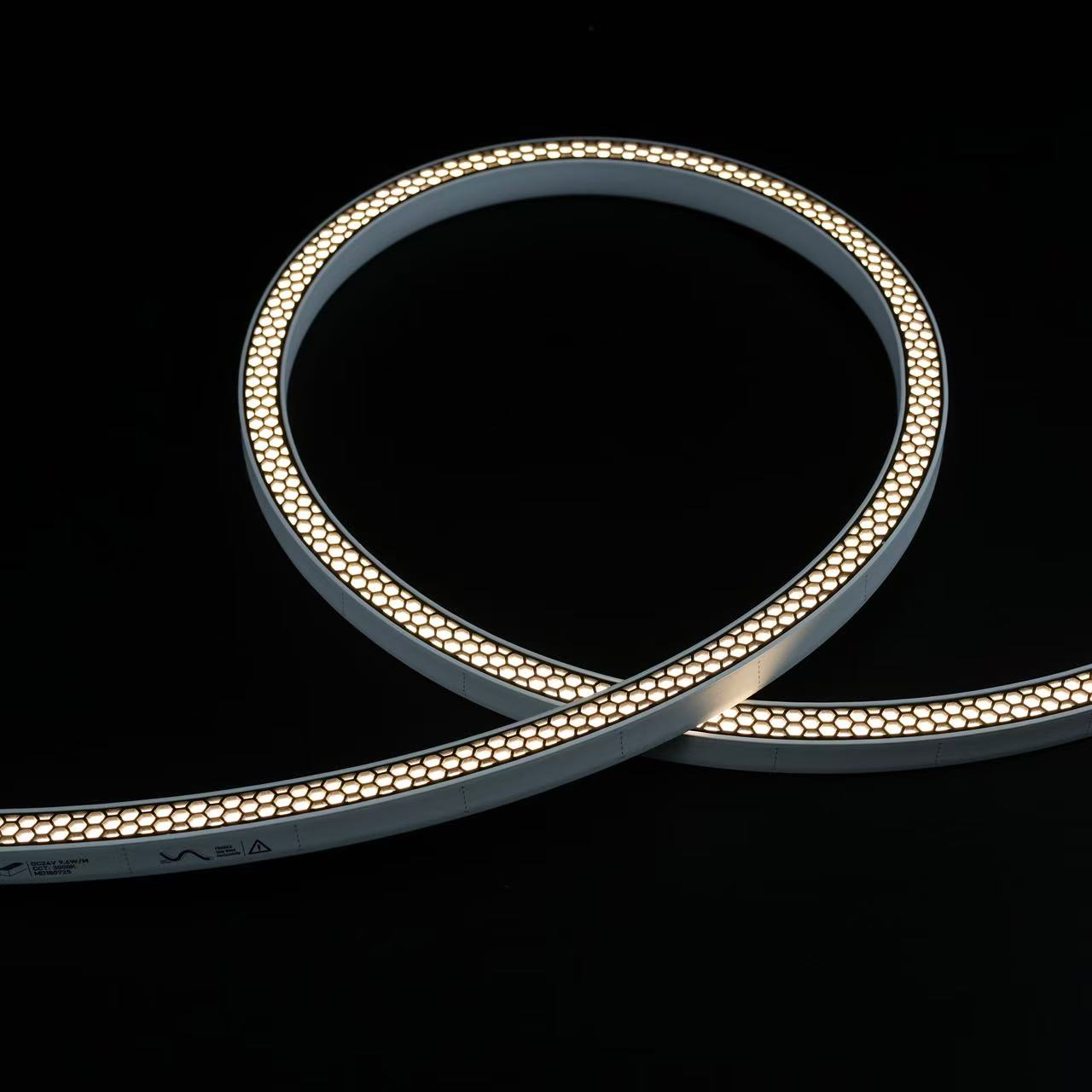

LEDLINE AG 1617S WHT is a direct view, matte profile, anti-glare flexible LED strip suitable for wet locations (IP67). Bends horizontally. It is designed to provide exceptional visual comfort with UGR<19 for office and premium architectural applications.
CCT: 2700K, 3000K, 4000K
CRI: 90+
Type: Horizontal Bending (Anti-Glare)
LED Type: Sanan
Output: 220 lm/m (@3000K, 9.6W/m)
Mounting: Aluminum Profile, Clips
Input Voltage: 24V DC
Color: White (Matte Surface)
Wattage: 9.6W/M (Constant Current)
Rating: IP67 (IK10 with profile)
Size: 16mm(W) x 17mm(H)
Height: 17mm
Lens: Diffused Silicone (Anti-Glare)
Operating Temperature: -40℃ to 45℃
Sustainability: Energy Efficient, UV & Chemical Resistant
Manufacturing Details: 3-Step MacAdam, 50mm Unit Cut, Integrated Endcap
Warranty: 5 Years
Certification: CE, RoHS
Certification & Document
Certificate Name
Issued By
Certificate Type
Valid Date
EPD
Issued By
CTI
Certificate Type
EPD
Valid Date
30 Sep 2024
-
30 Sep 2029
