LM-260 Optical Equipment Focimeter Auto Lensmeter | Eyewear Machinery | Industrial Machinery, Parts & Raw Materials

Chongqing Vision Star Optical Co., Ltd.

LM-260 Optical Equipment Focimeter Auto Lensmeter

US $350.00 - US $400.00

Production Lead Time:

7 day(s)

Shipping Method:

express way, sea, air

Brand:

Visionstar

Description

Contact Supplier

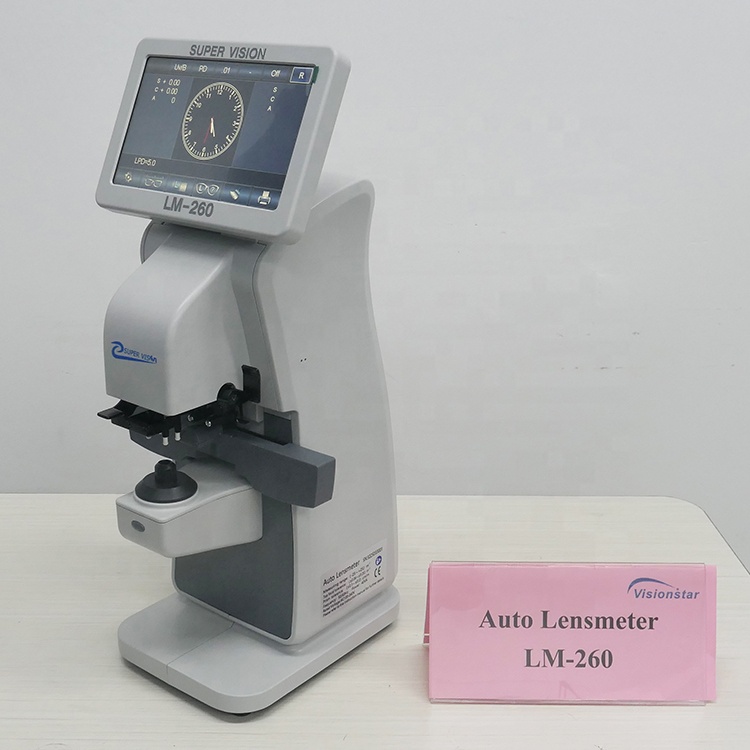

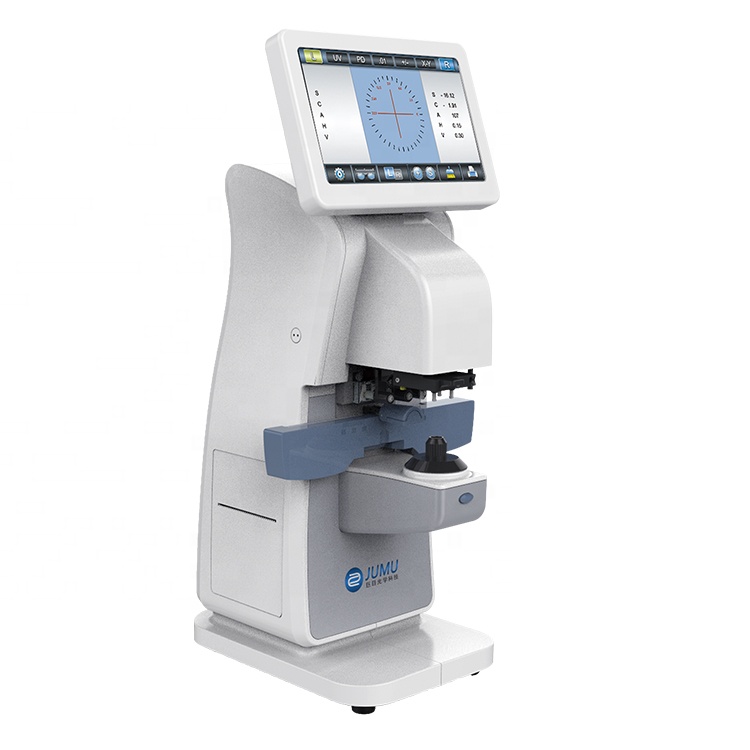

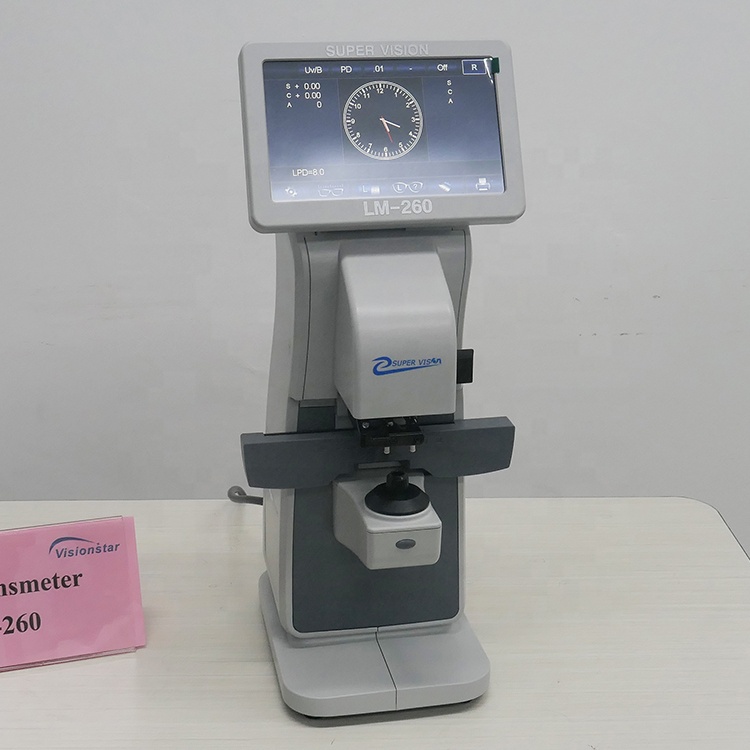

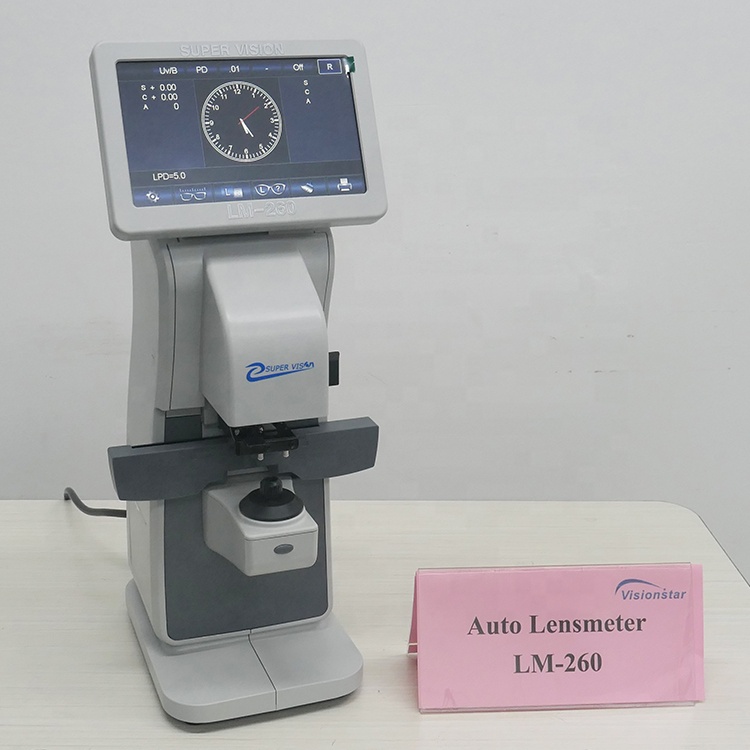

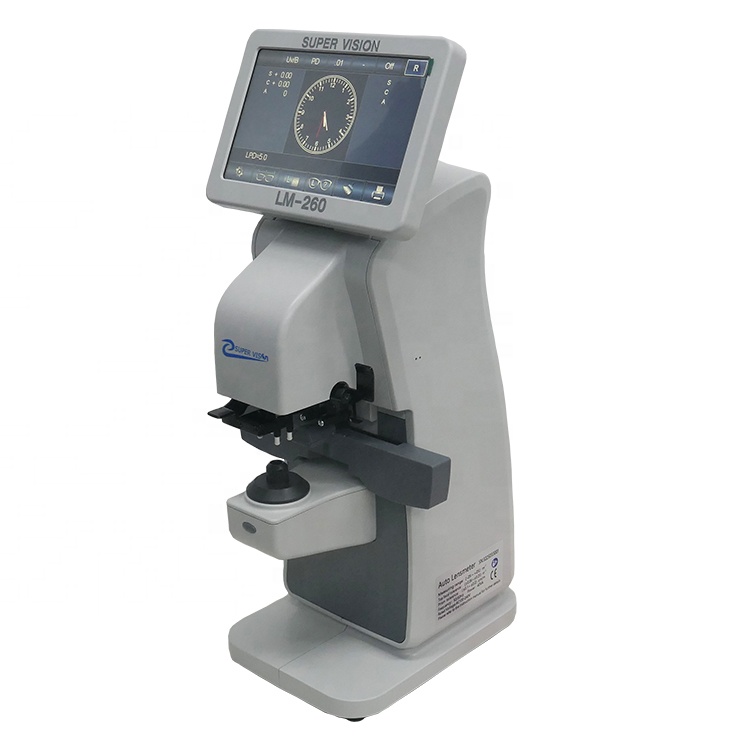

LM-260 Auto Lensmeter

Features:

* Reversible HD touch LCD display

* High-end technology, precision assembly

* Modern, simple and high-end appearance

* Rapid and automatic recognition of progressive multifocal lenses

* The green LED light source ,does not need ABBE coefficient compensation

* Optimized and upgraded Hartmann multi-point measurement technology

* Pupil distance measurement function

* Ultraviolet/blue light transmittance measurement function

* Contact lens measurement function

* Fine dotting device

* Selective dotting pen

* UV transmittance measurement

* Pupil height measurement of lens frame

* External equipment for data transmission

* It can measure single light, double light, astigmatism, progressive multifocal light and other lenses

More Details:


Tilting LCD Touch Screen	Detachable Lens Support

UV/Blue Light Measurement	PD Measurement

Lens Pressing Unit	Lens Marking Unit

Manual Read Key	USB and RS-232 Interface

Built-in Printer	Printed Measurement Results

Specifications

Transmission Ratio of Measurable Lens	> 10%, when the degree exceeds±10D, the transmittance of the lens is required to be > 20%
Contact Lens	0 to ±25D, BC 6.00 to 9.00
Display	7.0-inch HD touch LCD display
Menu	User friendly design, simple and easy to operate
Diameter of Lens Used	20mm-100mm
Power Supply	AC 100 (+ 10%) – 240 (+ 10%) V50/60Hz 40VA
Maximum Power	40W
Gross Weight	6kg
Box Size	550mm * 300mm * 290mm (length * width * height)
Environment Condition	A. Temperature: 5-40℃ (service temperature) – 20-60 ℃(storage/transportation temperature) B. Humidity: 30-85% (no condensation) (use humidity) 10-95% (storage transportation humidity) C. Atmospheric pressure: 700-1060hpa D. Altitude: up to 2000m E. Others: no harmful dust and smoke
Spherical Mirror	0 to ±35D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D)
Cylinder Sphere	0 to ±10D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D)
Cylindrical Mirror Axis Position	0°- 180°(reading accuracy: 1°）
ADD	0 to 10 D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D)
Prism	0 to 15△ (0.01△ )
Reading Resolution	0.01D/ 0.06D/ 0.12D/ 0.25D
