Laser Barcode Scanner | Computers & Peripherals

Canmax Technology Ltd

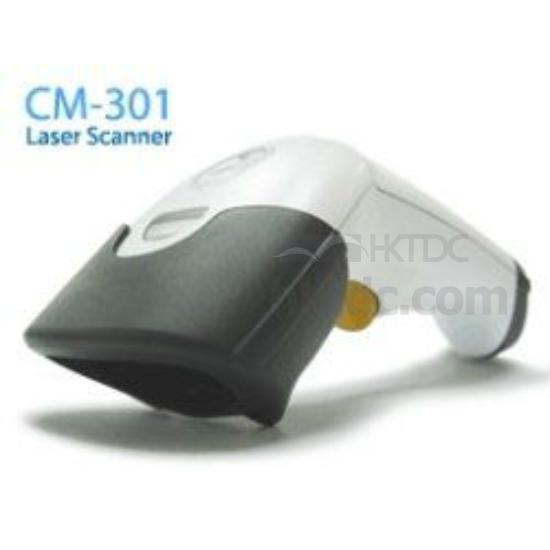

Laser Barcode Scanner

Model No.:

CM-301

Brand:

Canmax

Colour:

White, Black

Port:

Taiwan

Type of Payment:

T/T, L/C

Minimum Order Quantity:

1 piece(s)

Description

Contact Supplier

Scan speed: 100 scan/sec.
Tight beam tolerance for fixed applications.
Rugged design.
Provides consistency-position beam to scan the same place every time.
With optional stand for hands free application, presentation mode support.
Readable barcode type.
EAN-8, EAN-13, UPC-A, UPC-E, EAN/UPC add-on, code-39, code-32, codabar/Nw7, UCC/EAN/code-128, industrial-25, interleaved-25, martix-25, MSI/plessey, RSS (GS1 databar).
Light source visible laser diode: 650nm ±10 (25°C).
Laser engine option: MSL1000.
Scan rate: 100 scan/sec.
Reading distance: 50mm-350mm (5mil).
Sweep angle: 54 ± 5°.
PCS: 0.45.
Resolution: 0.3 (code 39, 9 digits, PCS: 0.9).
Reading indicator: green LED and buzzer, blue LED.
Configuration user manual.
Weight: 105g (without cable).
Cable: 1.8m straight type.
Drop durability: 1m drop onto concrete surface.
Safety standard: FCC class A and CE.
Voltage: 5V ± 5%.
Power consumption: 200mA.
Environmental temperature operation: -20-65°C, storage: -30-70°C.
Environmental humidity operation: 5-90% RH, storage: 5-90% RH.
Ambient light white light: 4000lx, fluorescent light: 4000lx, sun light: 80000lx.
