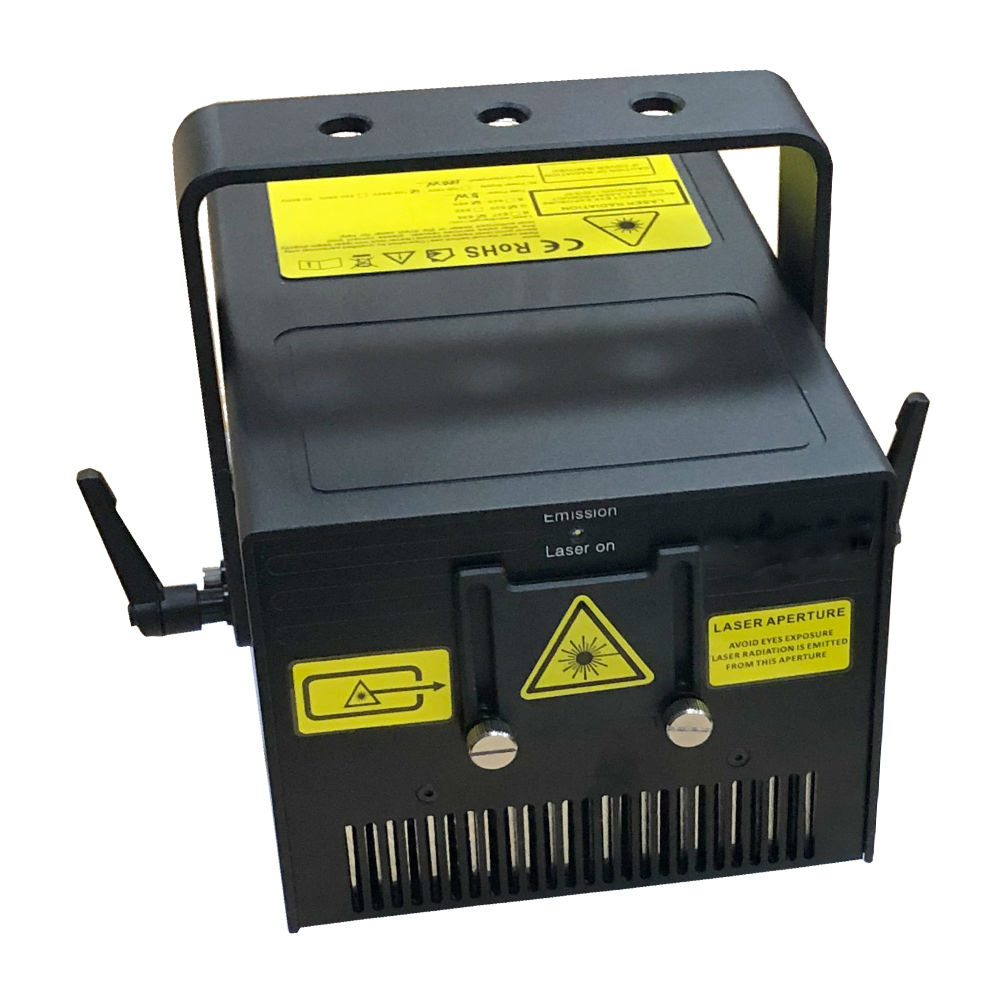

The PD3000-RGB unit comes with diode-only laser sources (""Pure Diode"") and thus have great beam specifications with beautiful analog color modulation. This system provides RGB solutions, as well as single green (520 nm) and single blue (445/465nm) show laser light systems with several power levels. The PD series can be controlled over ILDA and have a built-in memory with preset patterns, that can be easily triggered through DMX. They can also be operated in automatic and sound-to-light mode. Beginners as well as professionals use PD units, they are easy to use, versatile in their features and very compact and lightweight.

• Technical Data
• Guaranteed power: 3.0W
• Power Red: 650mW/638nm, Divergence<1.2mRad
• Power Green: 800mW/520nm, Divergence<1.2 mRad
• Power Blue: 1600mW/445nm, Divergence<1.2mRad
• Beam size: ca.3x3mm
• Operation Modes:  Auto, Sound, Master-slave, SD-Card, DMX512, ILDA.
• Scanner: 30kpps ILDA@8º
• Scan Angle: max 60º
• Safety: Key switch, Interlock, Safety scan-failed, (Mechanical Shutter on request)
• Power Supply: AC100-240V,50/60Hz
• Power consumption: 120W
• Modulation: Analog, >50KHz
• 156*224*125mm
• Metal Pure Aluminum
• Aluminum Alloy Optics
