LiFePO4 18500 1000mAh with UL1642
US $0.80 - US $2.00
Production Lead Time:
25-35 day(s)
Shipping Method:
Air/Sea
Application:
Lighting, Personal Care, Medical Device
Brand:
JYH
Model No.:
LFP18500-1000
IEC Designation:
IFpR19/51
Description
Contact Supplier
Description

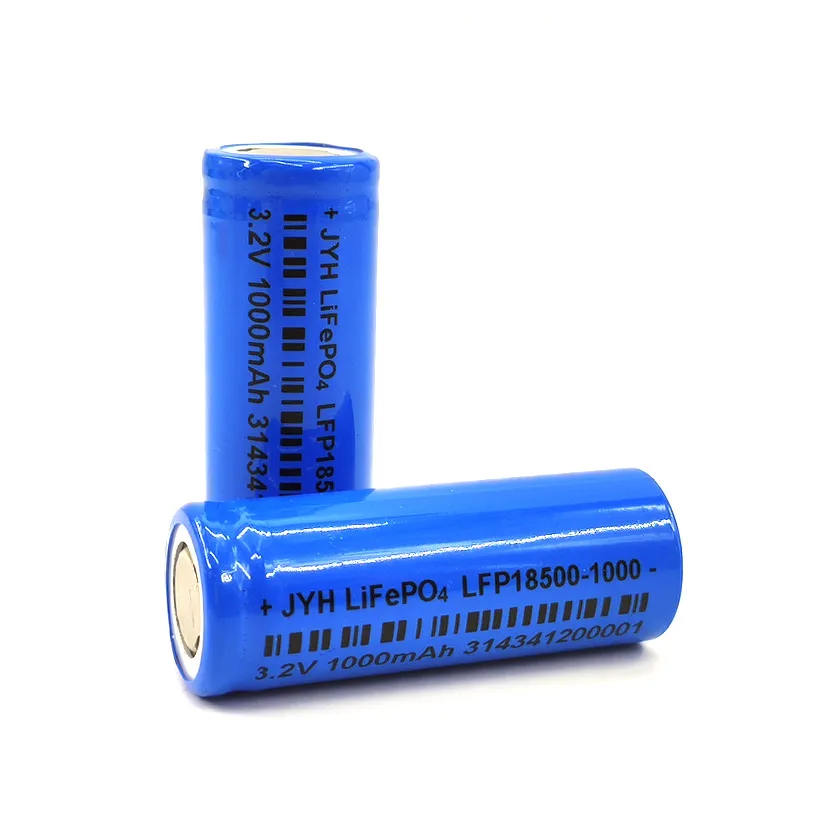

LiFePO4 18500 1000mAh with UL1642
Cylindrical Lithium Iron Phosphate cell, Ø14mm, flat top
PRODUCT FEATURES
- LiFePO4 has a good performance in high temperature environment, long cycle life and safety.
- Based on latest requirement of IEC/EN 60598-2-22, Lithium battery should comply with IEC 62133-2 and IEC 62620, JYH LiFePO4 batteries can fully meet above standards.
CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- IEC 62620
- IEC 62133-2
- UN38.3
PRODUCT FEATURES
- LiFePO4 has a good performance in high temperature environment, long cycle life and safety.
- Based on latest requirement of IEC/EN 60598-2-22, Lithium battery should comply with IEC 62133-2 and IEC 62620, JYH LiFePO4 batteries can fully meet above standards.
CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- IEC 62620
- IEC 62133-2
- UN38.3
| Nominal Voltage | 3.2V |
| Nominal Capacity | 1000mAh |
| Typical Capacity | 1040mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤10mA |
| Fast Charge | Constant current at 1000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤10mA |
| Standard Discharge | 200mA to 2.0V |
| Fast Discharge | 1000mA to 2.0V. |
| Maximum Continuous Charge Current | 1000mA |
| Maximum Continuous Discharge Current | 3000mA |
| Operating Temperature | Charge 0°C to 45°C Discharge -20°C to 60°C |
| Dimensions | Diameter 18.7mm Height 49.5mm |
| Typical Weight | 29g |
