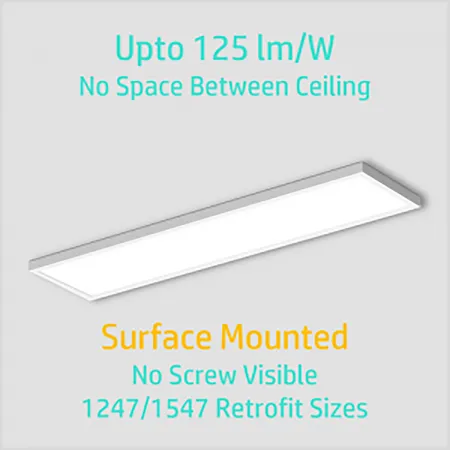

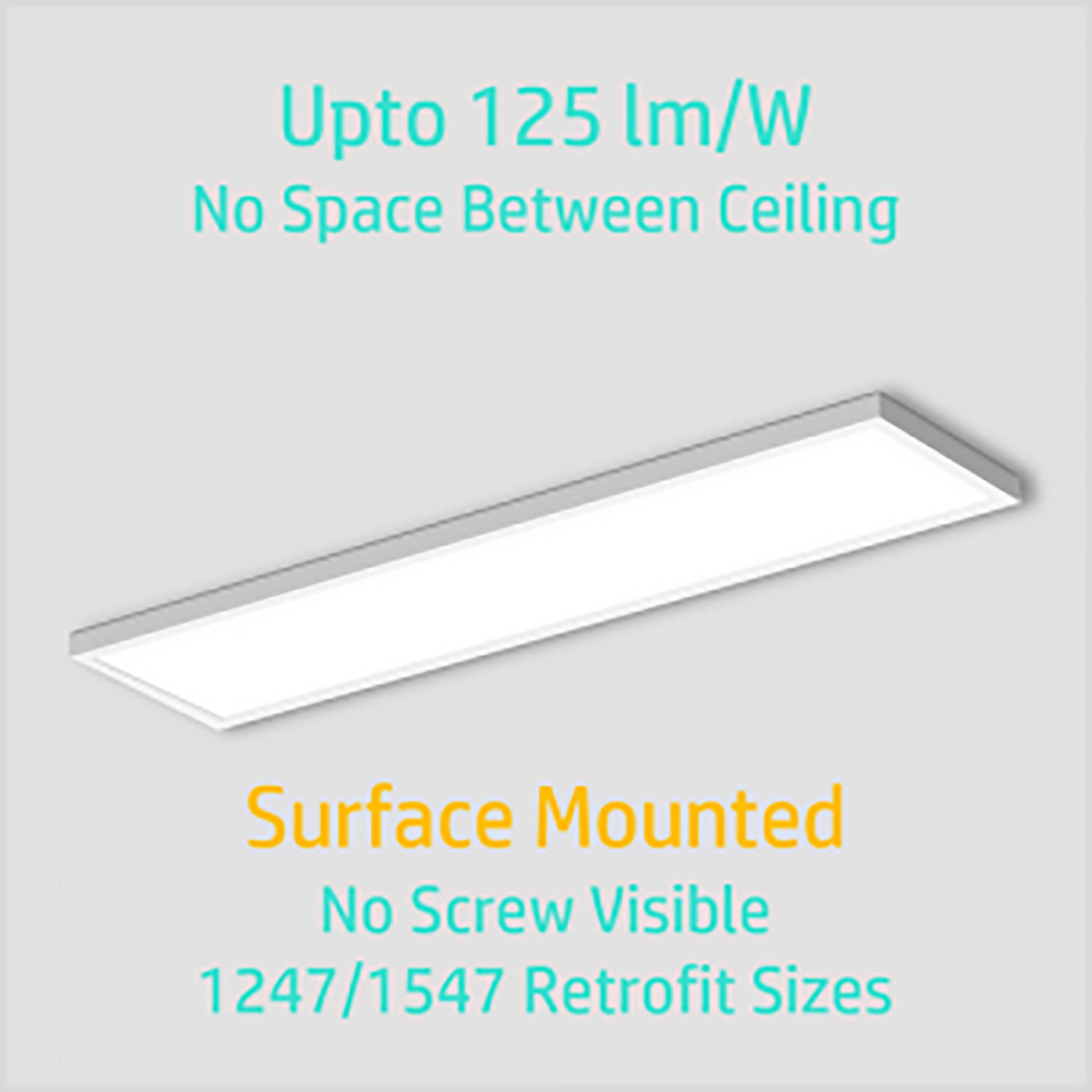

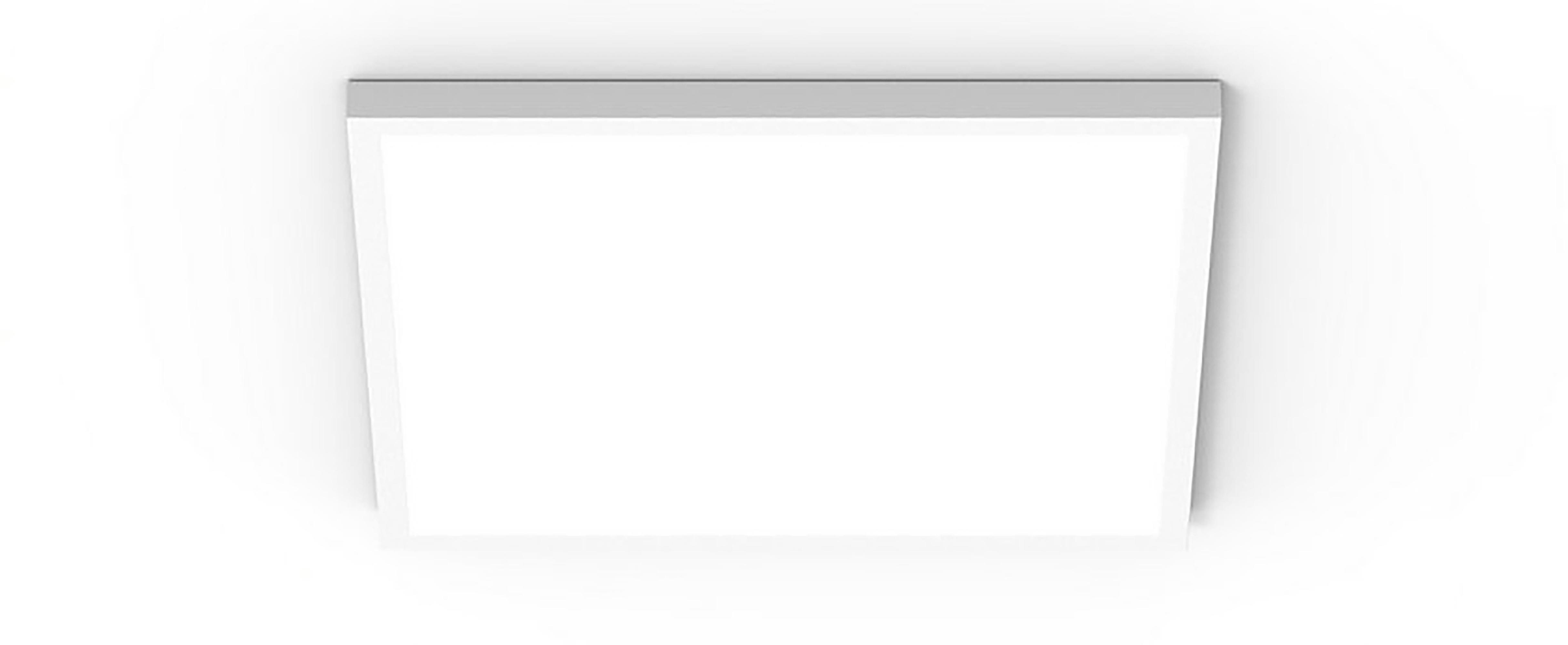

Cyanlite surface mounted LED panel light Libra

The Cyanlite™ LED panel lights LIBRA series has been designed specifically for Surface Mounted installation on Plasterboard and Concrete ceilings. The Libra series surface mounted luminaires have a wide product portfolio includes square and rectangular shape, as well as direct/indirect lighting options, and multiple sizes to retrofit and replace the traditional T8 troffer luminaires.

With Cyanlite patented mounting fixture, the installer no need to make the positioning when install, so the installation is simple and easy, also no need to dismantle and reassemble as traditional surface mounted luminaires, saving huge time for installers and enabling them to complete the project easily and quickly.

• Advantages

- Specifically designed for surface mounted installation, no space between light and ceiling*

- Libra has a wide product range for replacing traditional T8 troffer surface mounted luminaires

- Easy and fast installation, saving installation cost

- Flexible and customization oriented, bespoke sizes are welcome

- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

l Standard sizes (mm): 450x450, 600x600, 700x700; 300x1200, 300x1500; 184x1231, 184x1531; 284x1231, 284x1531; 310x1247, 310x1547
l RAL9016 as standard to match SAS ceiling colors, other RAL colors available on request
l System Efficiency upto 125 lm/W
l EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser
l Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K
l 5 Years Warranty
l Various dimming options, including 0-10V, DALI, Switch Dim etc.
l Emergency options available

• Dimensions

• Specifications

Model	Part No.	Power	Luminous Flux	Dimension (mm)
Model	Part No.	Power	Luminous Flux	Dimension (mm)
450x450	SM25W045	25W	3000 lm	450x450x45
600x600/620x620	SM30W060/062	35W	4200 lm	600x600x45/620x620x45
700x700	SM40W070	40W	4800 lm	700x700x45
300x1200	SM34W312	34W	4000 lm	300x1200x45
300x1500	SM42W315	42W	5000 lm	300x1500x45
184x1231	SM22W112	22W	2500 lm	184x1231x45
184x1531	SM42W115	42W	5000 lm	184x1531x45
284x1231	SM34W212	34W	4000 lm	284x1231x45
284x1531	SM42W215	42W	5000 lm	284x1531x45
310x1247	SM34W313	34W	4000 lm	310x1247x45
310x1547	SM42W316	42W	5000 lm	310x1547x45

- Light Distribution

- UGR22 with Opalic diffuser - UGR19 with Micro Prismatic diffuser

• Installation

Certification & Document

Certificate Name

Issued By

Certificate Type

Valid Date

CE Certificates

Issued By

Precise Testing

Certificate Type

Valid Date

23 Apr 2020

(N/A)

Supporting Document

Return & Refund

9.1 Q: What is Cyanlite’s product warranty policy?

A: Cyanlite offers 5 years warranty to our products. The detailed information on the 5-year warranty and the warranty conditions can be found under Cyanlite 5-Year Warranty Letter.

9.2 Q: What shall I do if I find a product failure?

A: If you have a product failure within the warranty period, please contact your account manager or our customer service department at customer@cyanlite.com. As a responsible company, Cyanlite will take care and be responsible for each failure caused by quality.

9.3 Q: Will I receive free replacement?
9.3.1 Failure rate less than 0.5%, Cyanlite will send the replacements directly.
9.3.2 Failure rate less than 1%, Cyanlite would need the application details, installation information, and defect product pictures for brief analysis and then send replacements.
9.3.3 Failure rate more than 1%, Cyanlite would require customers to send back the defect product samples for detailed analysis. If the failure is due to product quality, we will send replacements together with a full 8D report showing how to terminate it entirely in the short and long term.
