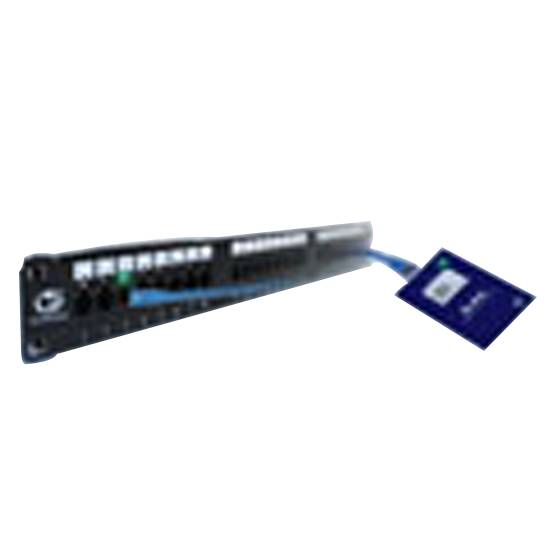

YFC BonEagle's newly designed light cable identification technology (LCI) is embedded as a regular patch panel. This particular technology allows LED to be built in to any patch panel to help installers quickly accurately locate cable connectors to work stations without degrading cat.5c / cat.6 performance. Guess work caused by hand-to-hear tones is a thing of the past, finding the right cable for adjustment, is as easy as turning on a light.

• Meets the TIA/EIA-568B.2-1 Cat.6, ISO/IEC 11801 and EN 50173-1 specification
• Support T568A & B wiring and easy installation
• Writable and re-writable marking surfaces for each port on the front panel
• Dual IDC connector can accept 22-26 AWG solid and stranded cables
• Terminates with 110 or Krone tool and standard EIA 19" width
• NaviLite™ Lighting Cable Identification Technology for saving cost and time on cable identification
• Two LED statuses (Steady/ Flashing) selectable for allowing two teams to work at the same time
• Two LED statuses (Green/Red) for identifying on-line or off-line. (Connected to switch or not)
