The YH28FA LED Light Driver Series boasts a compact design that is ideal for narrow installation spaces. With support for a wide lamp range, built-in protection and long-life battery options, light drivers here offer dependable performance for every commercial space.

LED Light Driver — the YH28FA Series

• Certifications: UL-listed for damp environments.
• DC output drives the LED module directly.
• Compact design suitable for narrow installation spaces.
• Suitable for 9–80W lamps with 0–10V dimming function.
• Suitable for lamps below 8W with or without 0–10V dimming function.
• 5-year warranty.

Temperature Management

• Operating temperature: 50°F to 140°F (10°C to >60°C).

Battery and Emergency Features

• Integrated emergency kit with a combined driver and battery pack.
• Initial functional self-check.
• Equipped with a high-capacity, long-life LFP (LiFePO₄) battery pack.
• Includes rest mode for extended storage life.
• Overcharging and discharging protection.
• Designed for a service life of up to 8 years under normal operating conditions.

Series Model Available

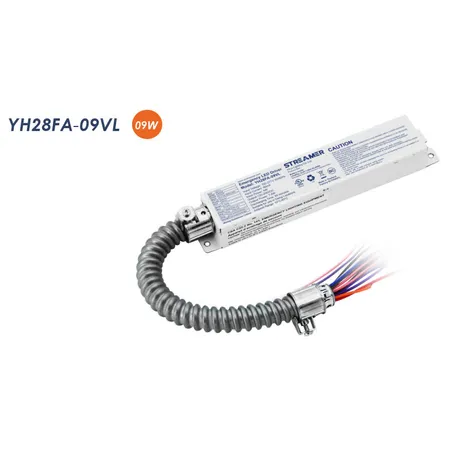

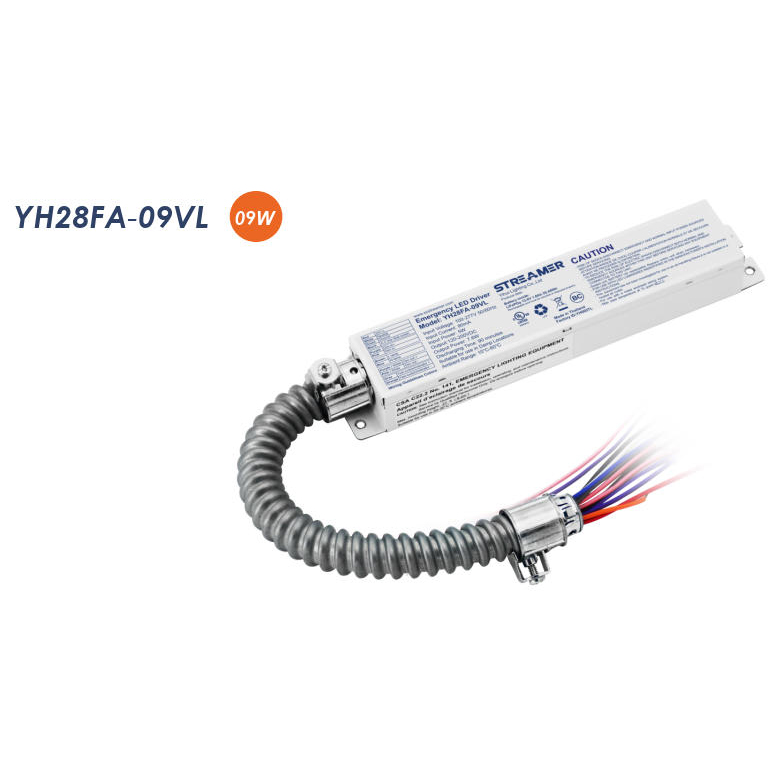

• YH28FA-09VL
