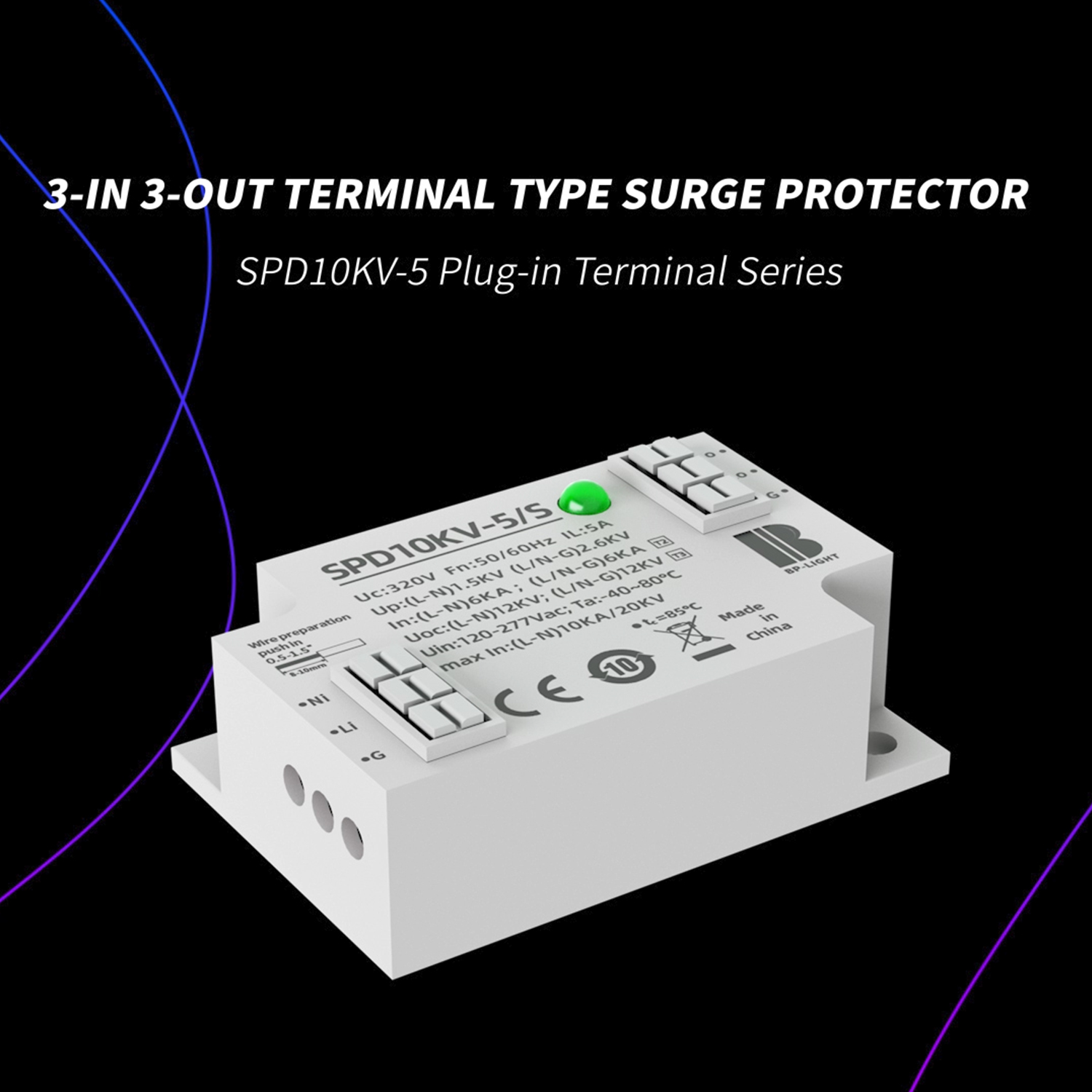

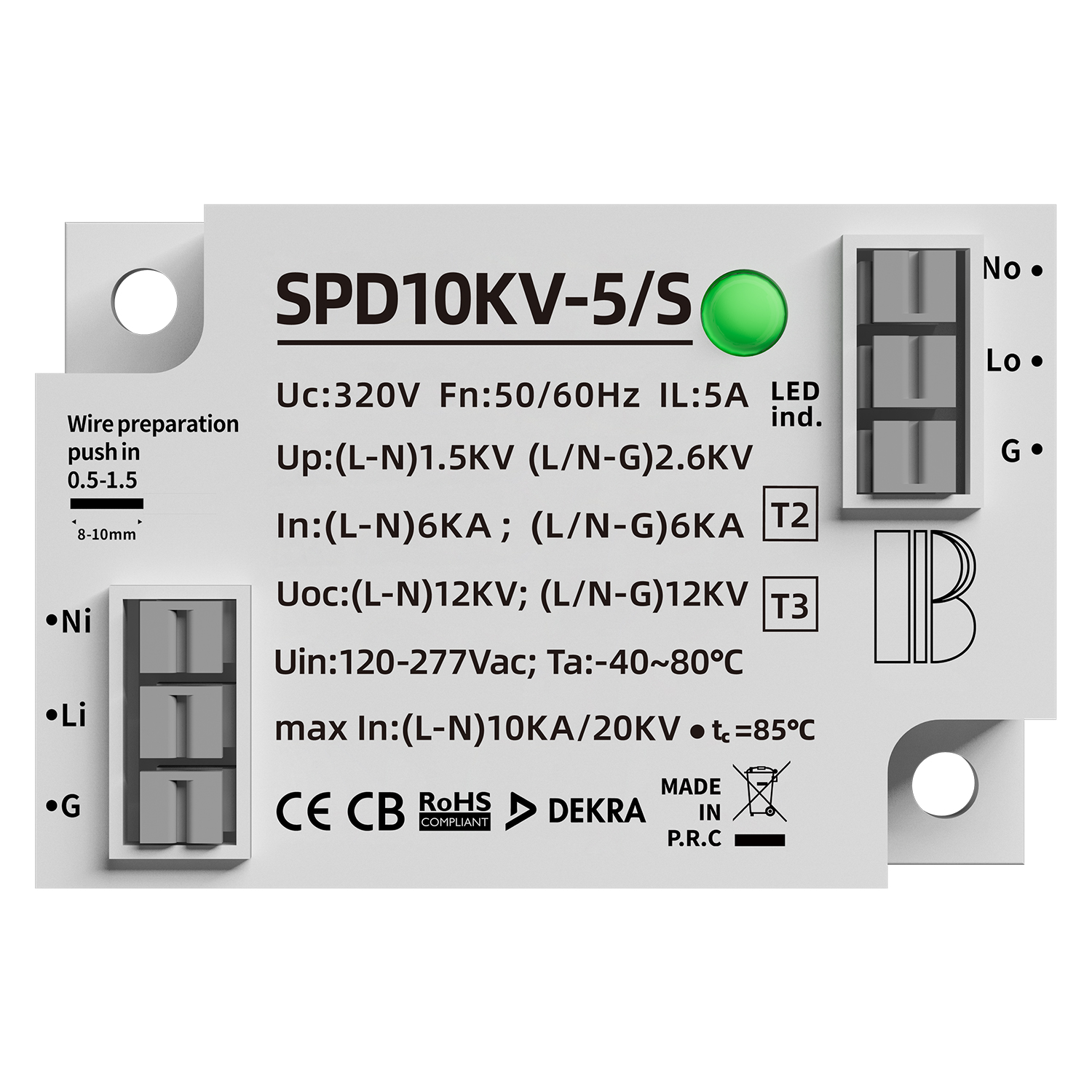

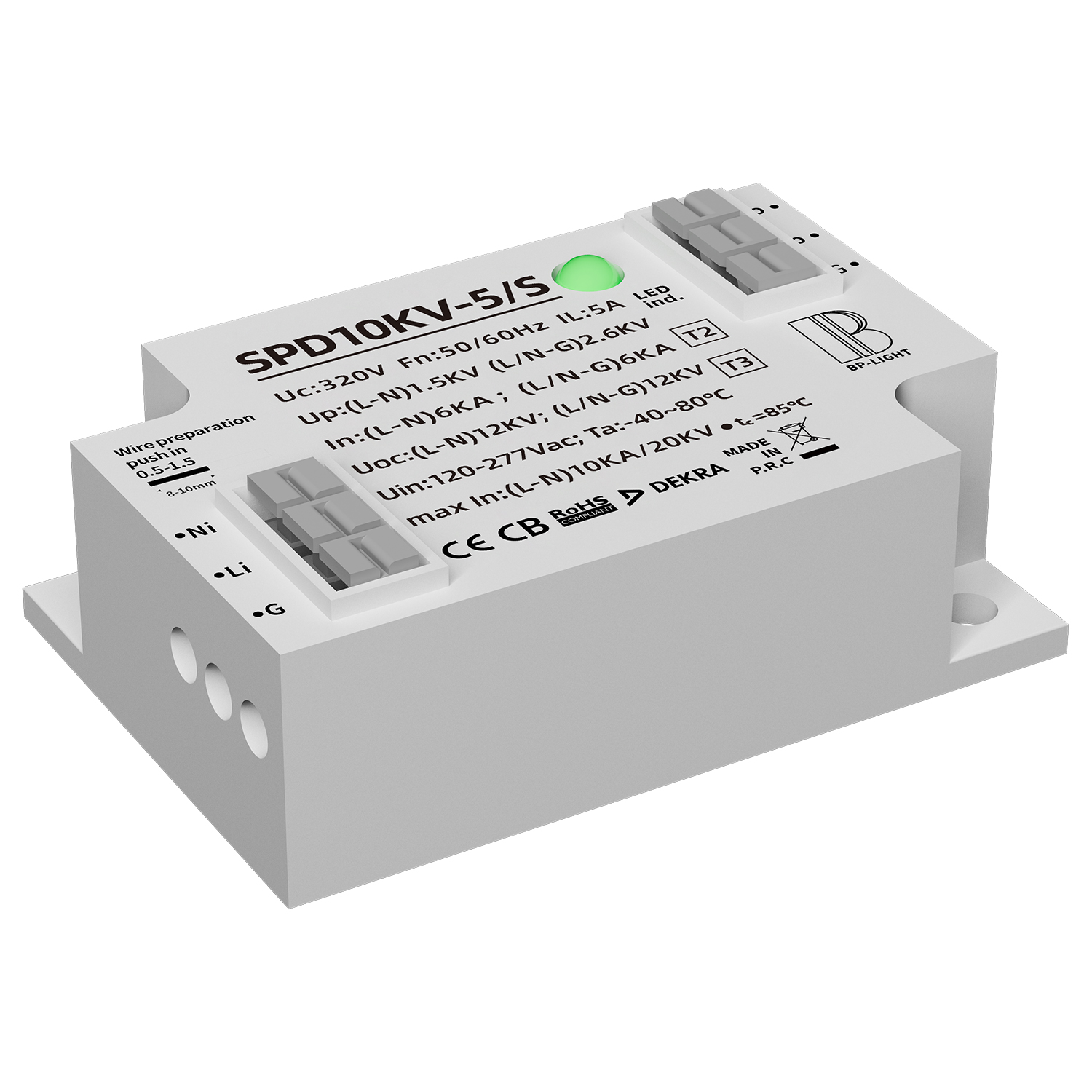

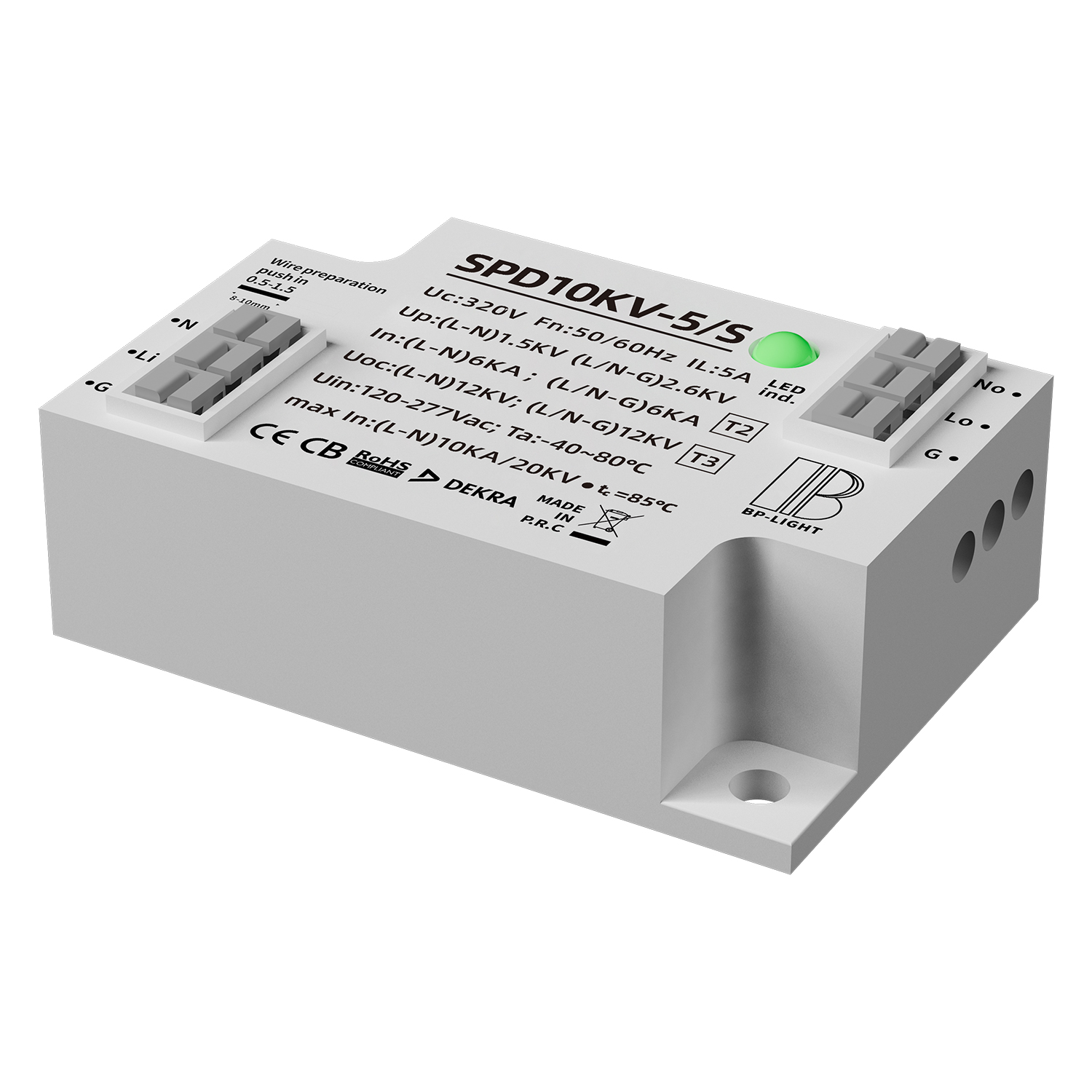

Light SPD Surge Protection Device Lightning Surge Protector Suitable for Outdoor LED Street Light Flood Light Luminaires
Brand:
BP
Model:
BP-SPD10KV-5/S
Applicable luminaires:
Class l luminaire
Certifications:
CB, CE, RoHS
Connection:
Series
IP Rating:
IP20
Max Discharge Current:
10KA
Nominal Discharge Current:
5KA
Max input voltage (Un):
220-240V
SPD Category:
SPD
Description
Contact Supplier
Description
Series Connection Light SPD, Type 2+3 Power Surge Strip for Class I Outdoor LED Luminaires, IEC 61643-11 Standard, Screw Connection with Working Indicator, 10KV Surge Protection, CE CB RoHS Certified.
- Max Discharge Current:10KA
- Response time - tA (L-N/N-PE) [ns]：≤25/≤100
- Maximum continuous operating voltage:320V
KEY FEATURES
✓Maximum continuous operating voltage (AC) Uc (L-N) V]：320/255
✓Nominal voltage AC 50-60 Hz - Un M]：230/400
✓Nominal voltage AC 50-60 Hz - Un (L-N) M]：230
✓Nominal discharge current (8/20)- In (L-N) [kA]：5
✓Max Discharge Current (8/20) - Imax (L-N) [kA]：10
✓Rated current load - IL [A]：5
✓Voltage protection level at In - Up (L-N)[kV]：1.5
✓Open circuit Voltage(L-N)[kV]：10
✓Short-circuit Current rating-Isccr [A]:300
✓Response time tA (L-N) [ns]：≤25/≤100
✓TOV Ut 5s (LV systems, withstand) M]：337
✓TOV Ut 120min (HV systems, withstand) M]:442
✓Dynamic thermal disconnection：Yes
APPLICATIONS
✓Outdoor Road Lighting
✓Tunnel & Underground Traffic Lighting
✓Landscape Lighting & Outdoor Signage
✓Outdoor Lighting for Industrial Plants
✓Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
