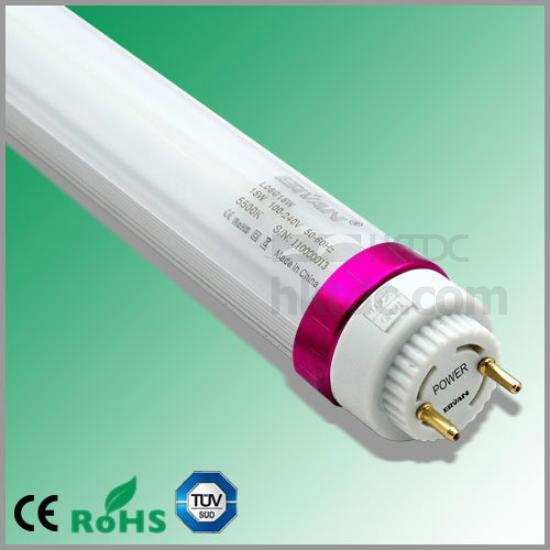

Light T8 LED Tube

Model No.:

L05G-I33V

Brand:

ERVAN

Colour:

Warm White, Daylight White, Pure White, Cool White

Size:

D26 x 588/1198/1498mm

Port:

Shenzhen

Type of Payment:

Western Union, L/C, T/T

Minimum Order Quantity:

10 piece(s)/model

Description

Contact Supplier

Material: aluminum, PC.
LED tube with a replaceable power supply as a unique ERVAN patented feature.
High-brightness LED tube with easy installation and extended life.
Replace the power supply instead of changing the whole tube for extra money saving in case the tube fails,
Lockable rotating end caps allow optimization of the lighting direction, meeting your different angle demands.
Plastic end caps ensure to pass 4000V Hi-pot test.
Certificate: CE, RoHS, FCC.
3 years warranty and lifespan of more than 50,000 hours.
Light source: SMD3528/3020 LED.
Ballast bypassed/removed.
Instant on.
High shock/vibration resistance.
No buzzing.
No mercury/poisons.
No radio frequency interference.
No flickering.
L03F-9W 30 x 588 (2ft) 144 piece(s).
L03F-18W 30 x 1198 (4ft) 288 piece(s).
L03F-18W 30 x 1498 (5ft) 360 piece(s).
Luminous (frosted lens) (clear lens).
900lm±10% 1000lm±10%.
1820lm±10% 1950lm±10%.
2250lm±10% 2400lm±10%.
Operation temperature: -20°C to 40°C.
Storage temperature: -40° to 85°.
Voltage: 110V/220V.
Frequency: 60Hz/50Hz.
Power factor: >0.85.
Power supply efficiency: >92%.
LED luminous efficiency: up to 100lm/W.
CRL: Ra: >70.
CCT: warm white 3000K, daylight white 4000K, pure white 5500K, cold white 6500K.
Beam angle: 120°.
Light-emitting surface: 230°.
Non-isolated power supply.
Latest lockable rotating end cap.
Frosted or clear cover available on request.
Weight: 588mm/196g, 1198mm/383.8g, 1498mm/479g.
Can be placed in conventional T8 or T10 fluorescent brackets and replace fluorescent tubes.
Packing:
Length Qty/box Box size (cm).
0.6m 25pcs 72 x 24 x 24.
1.2m 25pcs 133 x 24 x 24.
1.5m 25pcs 163 x 24 x 24.
Qty/carton Carton size (cm) V/weight.
50pcs 74 x 48 x 26 18.5kg.
50pcs 135 x 48 x 26 34kg.
50pcs 165 x 48 x 26 41kg.
Applications:
Replacement for conventional fluorescent tubes.
Hotels/factories/warehouses/offices/buildings.
Schools/colleges/hospitals.
Supermarkets/subways.
Railway stations/airports, etc.
Note: make sure the power is turned off before installation.
When the LED tube is replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse.
Attention: only suitable for magnetic ballast, not electronic ballast.
Electronic ballast must be by-passed by a registered electrician.
Warranty:
3 years since the date of purchase.
