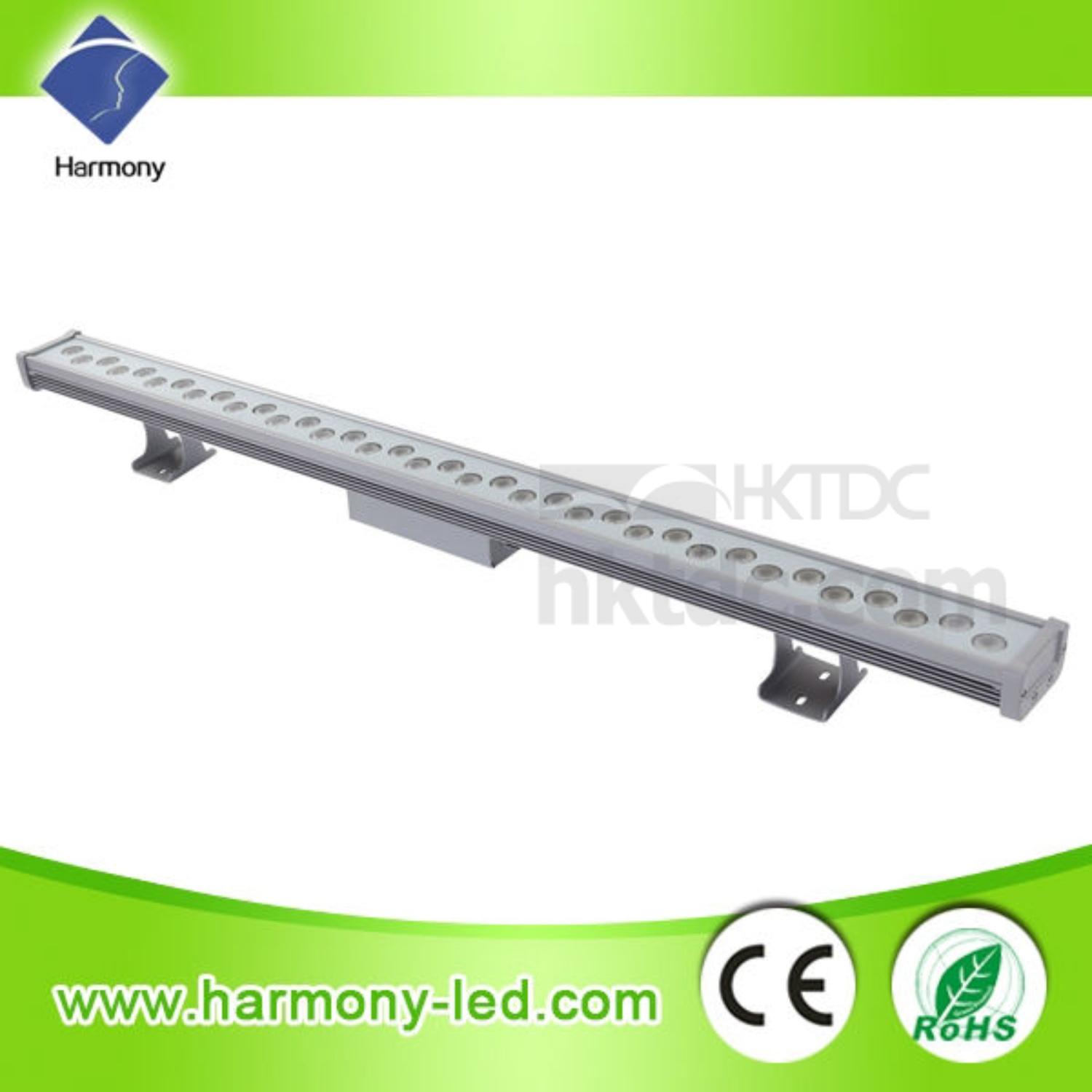

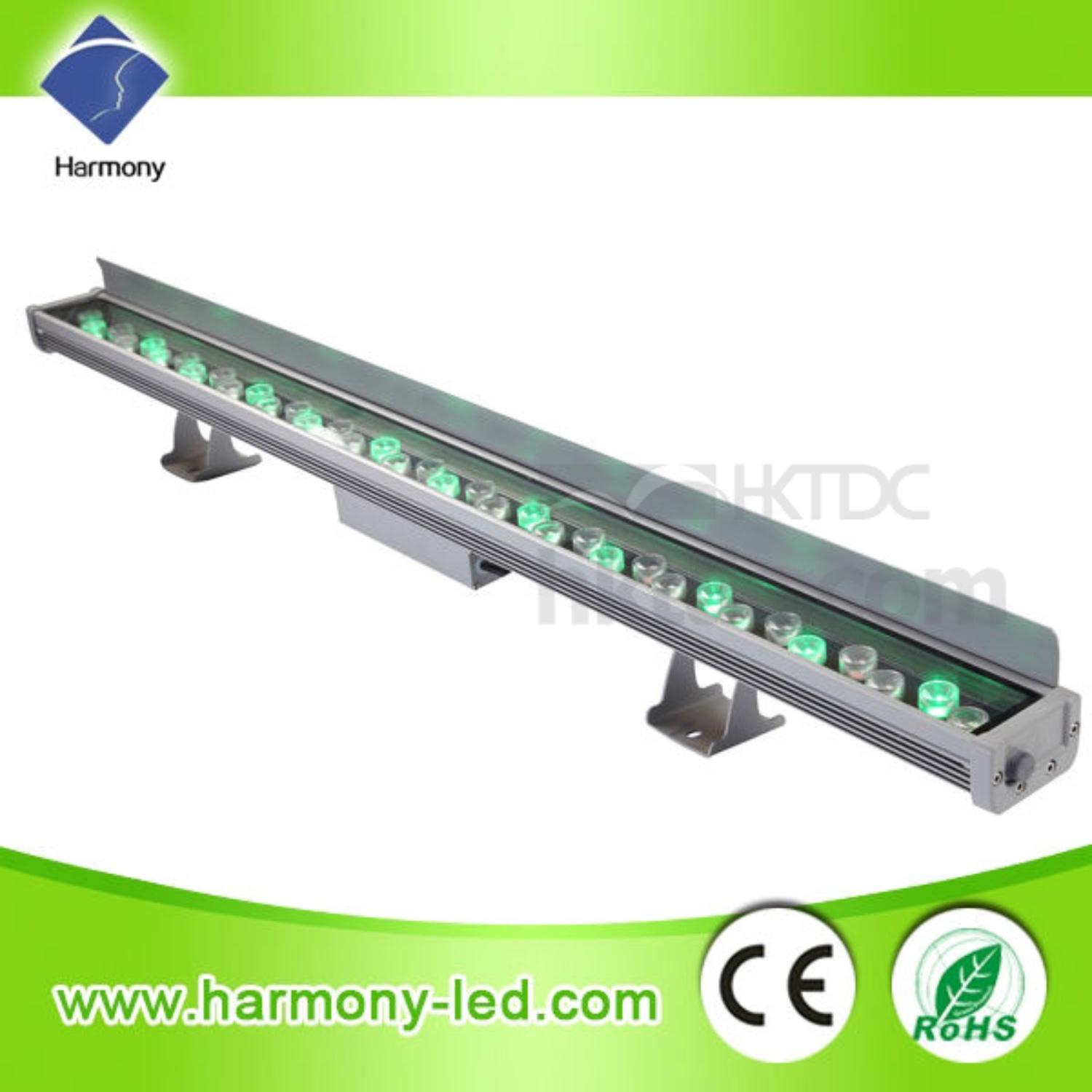

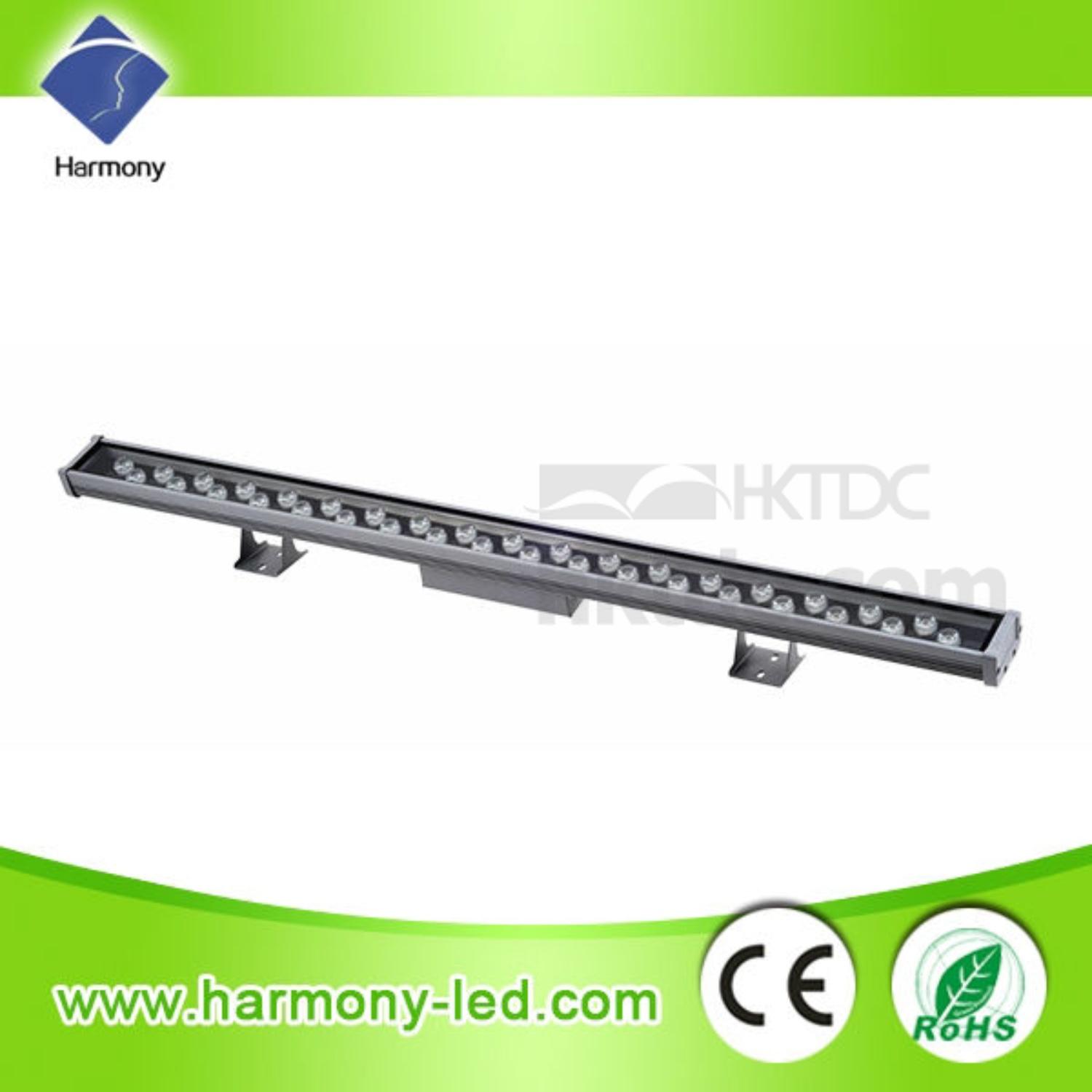

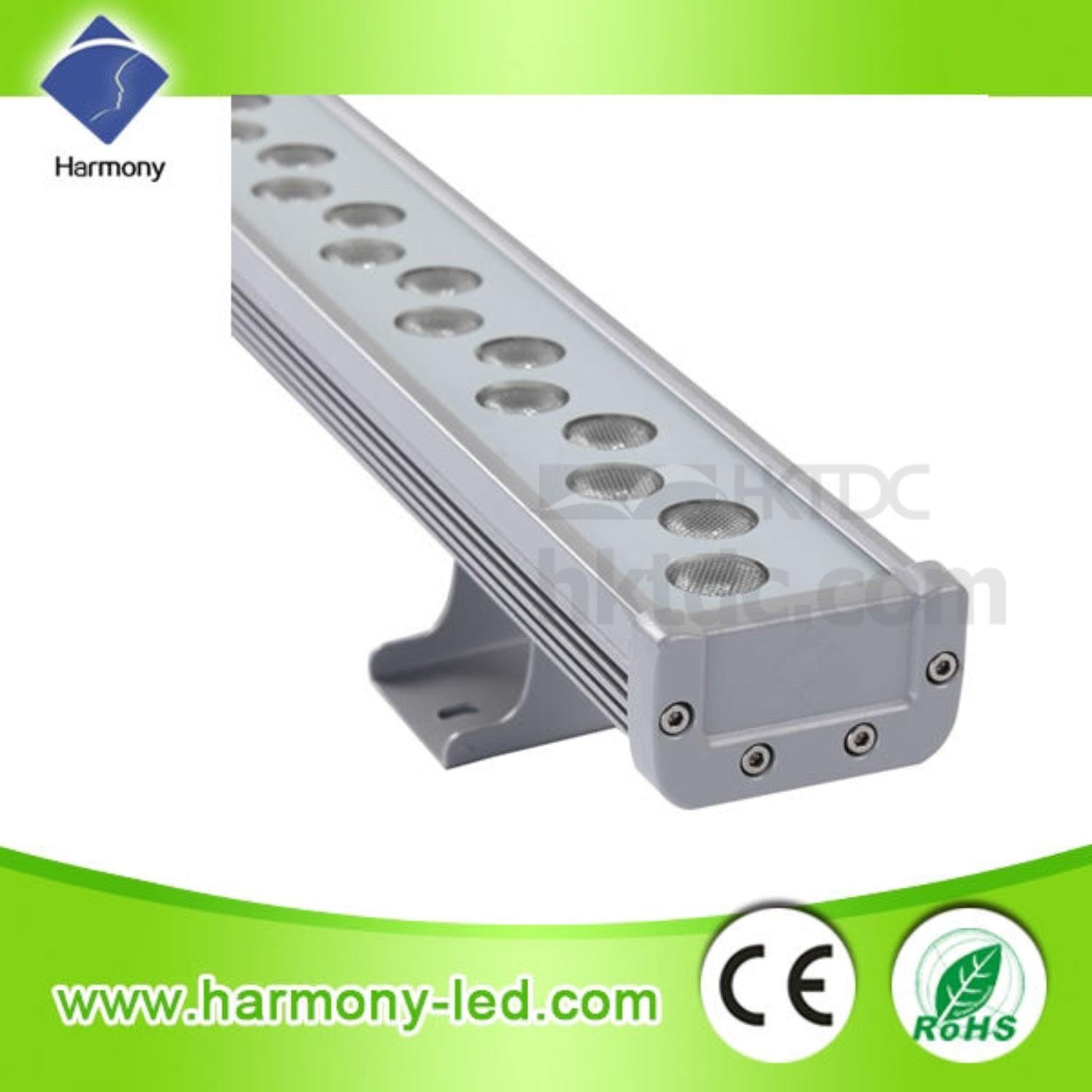

Linear 36 x 1W LED Wall Washer 36p IP65
Share this page
Production Lead Time:
7 day(s)
Model No.:
RH-48
Brand:
Harmony
Colour:
Black, Silver
Size:
L1000 x W70 x H90MM
Port:
Jiangmen
Type of Payment:
T/T, westunion, paypal, cash
Minimum Order Quantity:
100
Voltage(V):
24V
Wattage(W):
36*1W
Power Source:
DC
Use:
Lighting project
Description
Contact Supplier
Description
  • Product Description
  • Linear 36*1w led wall washer 36p ip65
  • New design and new Features:
  • 1.Respirator :could let the water and fog out of the body,  much better waterproof.
  • 2.Crescent-shaped bracket :can be mounted at 90degree.
  • 3.External LED driver (in the bottom of the body) ,much better heatsink and Easier repair.
  • 4.Shading plate for selection.
  • 5.Transparent or Silk Screen Tempered glass for selection.
  • Designing by our engineers , We are the sole owner. So we could control good quality in every step.
  • 6.AC220V, Internal control,without Controller.
  • Applications:
  • 1) Ambience lighting for bar, dance hall
  • 2) Lighting for billboard, factory,hotle,building of the outside wall
  • 3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas
  • Remarks:
  • 1)LED Wall Washer should be used in accordance with the environment requirement
  • 2)DMX512 control System:
  • A: Set one as a host, the others set as address mode when many sets wall washer working together.
  • B: Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
  • C: Setting the same address code, the lighting change with the same effect;
  • D: To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
  • E: The input and output port should meet the requirements, otherwise it will damage lighting.
  • Harmony's main products:
  • LED Wall washer;  Flood light; street lamp;LED module light

  • Our service:
  • 1. Your inquiry related to our products or prices will be replied in 24hours.
  • 2. Well-trained and experienced staffs to answer all your enquires in fluent English
  • 3. OEM&ODM, any your customized lightings we can help you to design and put into production.
  • 4. Protection of your sales area, ideas of design and all your private information.
  • 5. Best quality and competitive price

  • Delivery and Packaging
  • 3-9workdays for 1000-3000PCS after deposit, 1-3days for sample
  • Packaging size: 107*21*31cm/6pcs

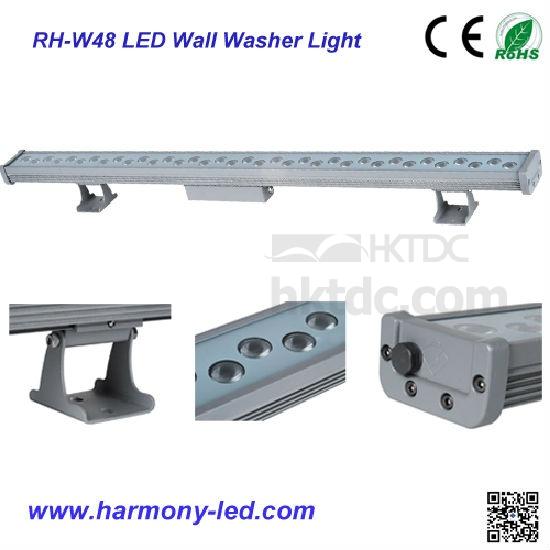

  • Item NO. RH-W48
  • Power 36*1W
  • Size L1000*W70*H90MM
  • LED chip Bridgelux,Edison,Epistar
  • Material Aluminum    alloy
  • Light efficiency 90-120LM/W
  • Protection level IP65
  • Power Factor 0.95
  • CCT 2700-7500K
  • Lamp cover Silver,black,
  • Light color RGB,W/WW/R/G/B is available
  • Voltage DC24V / AC85V~265V
  • Beam angle 30°/45°/60°
  • Life span 50,000hrs
  • Warranty time 2-3years
  • Certificate CE&ROHS&CCC&ISO9001[Linear 36*1W LED Wall Washer 36p IP65
