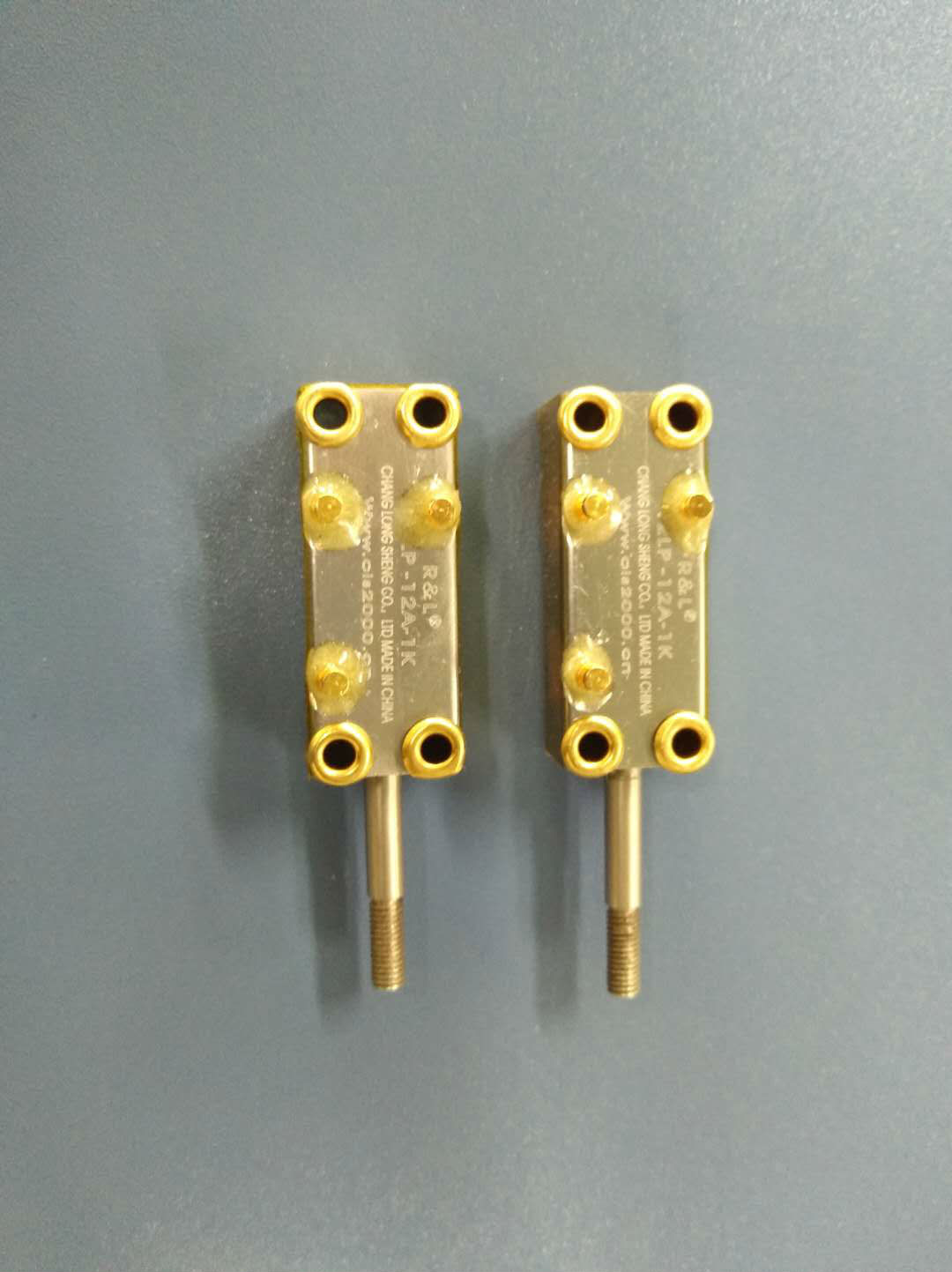

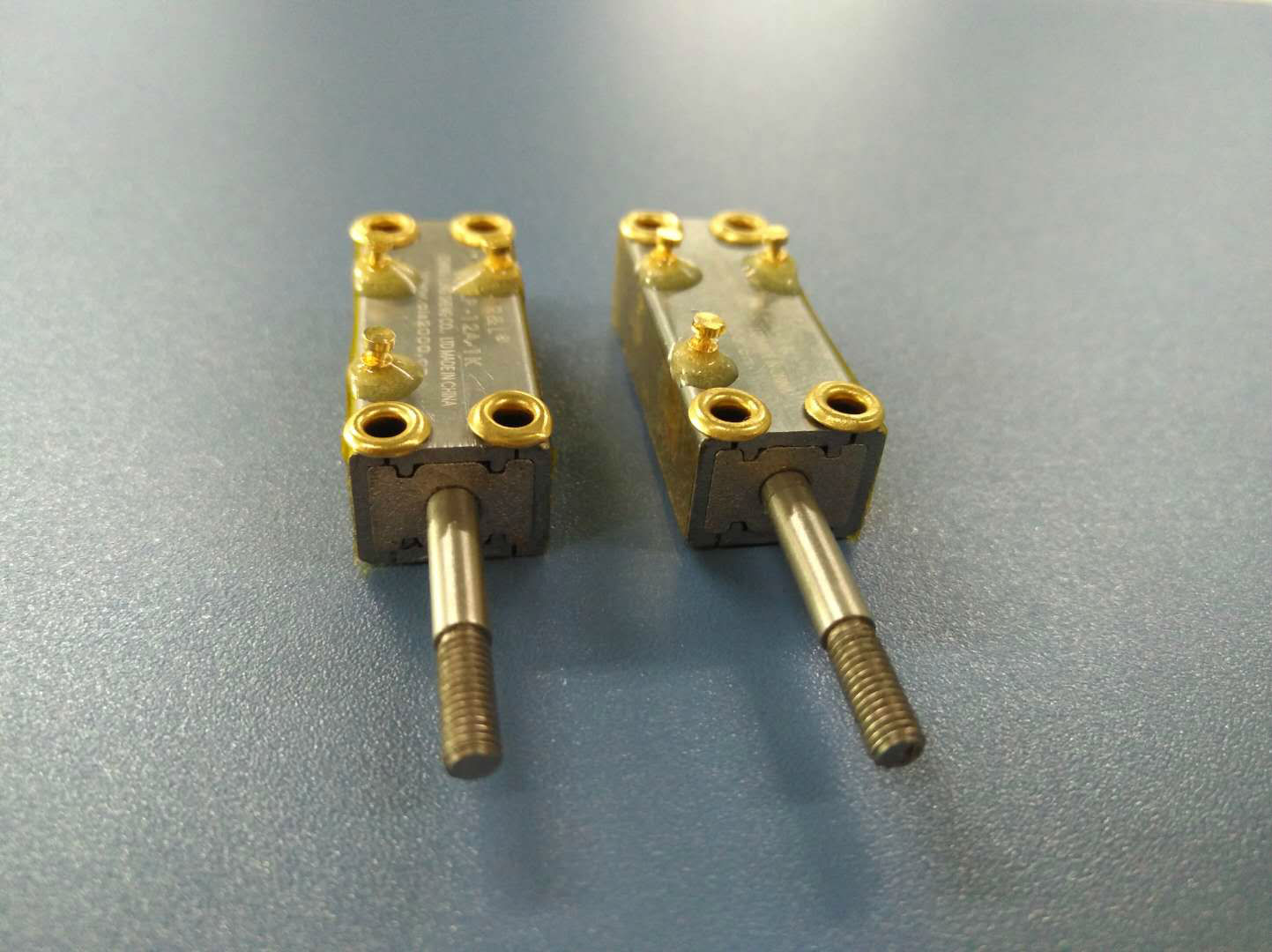

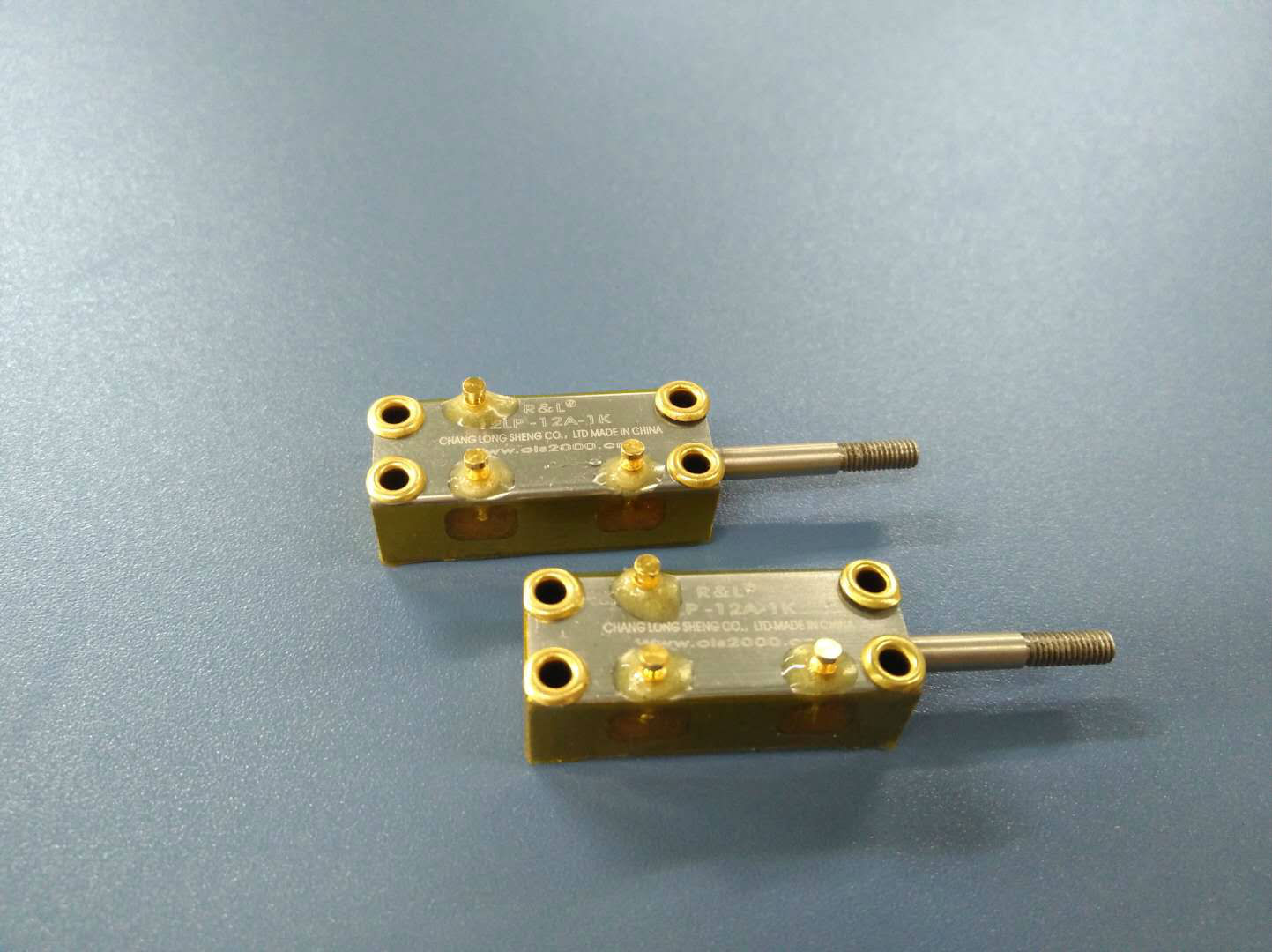

Linear Displacement Sensor
Model No.:
12LP
Brand:
CHANG LONG SHENG
Colour:
Metal
Port:
Shenzhen
Type of Payment:
PayPal, T/T (China Bank, Not Hong Kong Bank)
Minimum Order Quantity:
10 piece(s)
Package:
Yes
Customised:
Yes
Theory:
Resistance Sensing
Description
Contact Supplier
Description

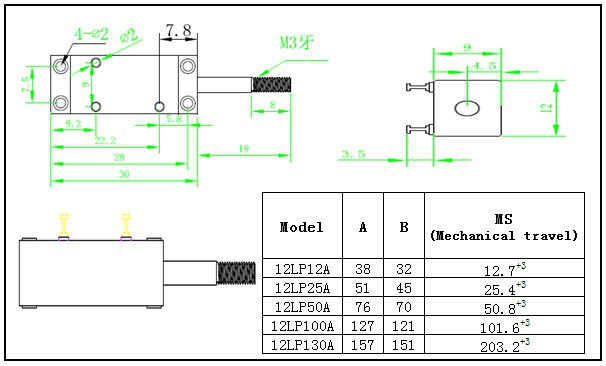

- Model: 12LP 12A, 12LP 25A, 12LP 50A, 12LP 100A, 12LP 130A
- Resistance: 500~20K
- Resistance Tolerance: ±20%（M）
- Independent Linearity: ±0.25%~±1.0%
- Resolution: P=0.025mm---0.045mm
- Power Rating: 1.5~5W
- Electrical Travel: 12.7~203.2 ±0.5mm
- Mechanical Travel: 12.7+30mm~203.2+30mm
- Insulation Resistance: ＞1000MΩ（500V.D.C.)
- Dielectric Withstanding Voltage: 1 min(500V.A.C)
- Friction: ＜0.5N(50gf), ＜1.0N(100gf)
- End Voltage: about 20N（2kgf）
- Temperature Coefficient of Resistance: ±50p.p.m./℃
- Weight: about 10g~45g
- 12LP series (wire wound resistor type) can be customized with spring return device, the spring return device is mounted on the outer shaft .
