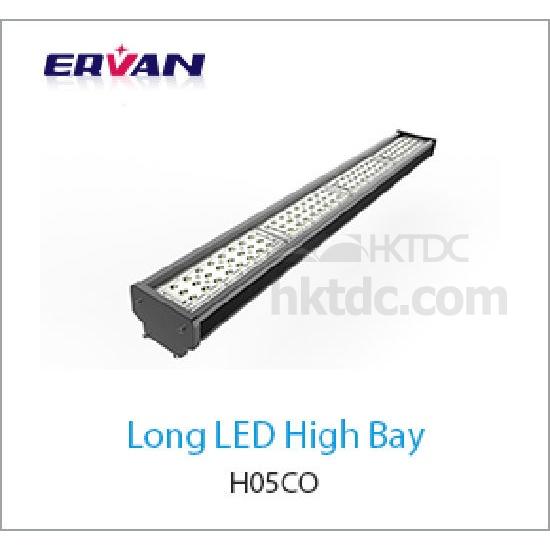

Linear LED High/Low Bay
Production Lead Time:
7 - 12 day(s)
Model No.:
H05CO 1200mm
Brand:
ERVAN
Colour:
Black
Size:
1200 x 97 x 142mm
Port:
Shenzhen
Type of Payment:
T/T, L/C
Minimum Order Quantity:
5 piece(s)
Voltage(V):
100~277VAC
Certification:
CE, EMC, FCC, LVD, RoHS, SAA, TUV
Wattage(W):
80W
Warranty:
5 year
Light Source:
NICHIA
Body Material:
Aluminum, Polycarbonate (PC)
Is Dimmable:
No
Power Source:
AC
Including Bulbs:
No
Customized:
Yes
Description
Contact Supplier
Description
- linear led high/low bay
PRODUCT INFORMATION - LED Type NICHIA LED
- Warranty 5 Year
- Part L Compliant Yes
- Dimensions 1200*97*142MM
- Weight 12.85kg
- Equivalent to 250W MHL / 400W SON / 6 x 36W Flourescent Flow Bay
- TECHNICAL SPECIFICATIONS
- Power Consumption 80W
- Input Voltage 100-277V AC
- Power Factor >0.95
- Operating Temperature -20°C to 50°C
- L70 Rated Lifetime +50,000hrs
- Ingress Protection IP21
linear led high/low bay LUMEN PERFORMANCE
- Luminous Efficiency 120LM/W or 140lm/W
- Beam Angle 30*70˚, 60*90˚, 90*150˚
- CRI (Colour Rendering Index) >80Ra or >90Ra
- Lumen Output 9600lm-11200lm
- AVAILABLE OPTIONS
- Colour Temperature Pure White (5500-6000K)
3-Hour Emergency Version Available Variant
Microwave Occupancy Detector Available Variant
1-10V Dimmable Available Variant
DALI Dimmable Available Variant
