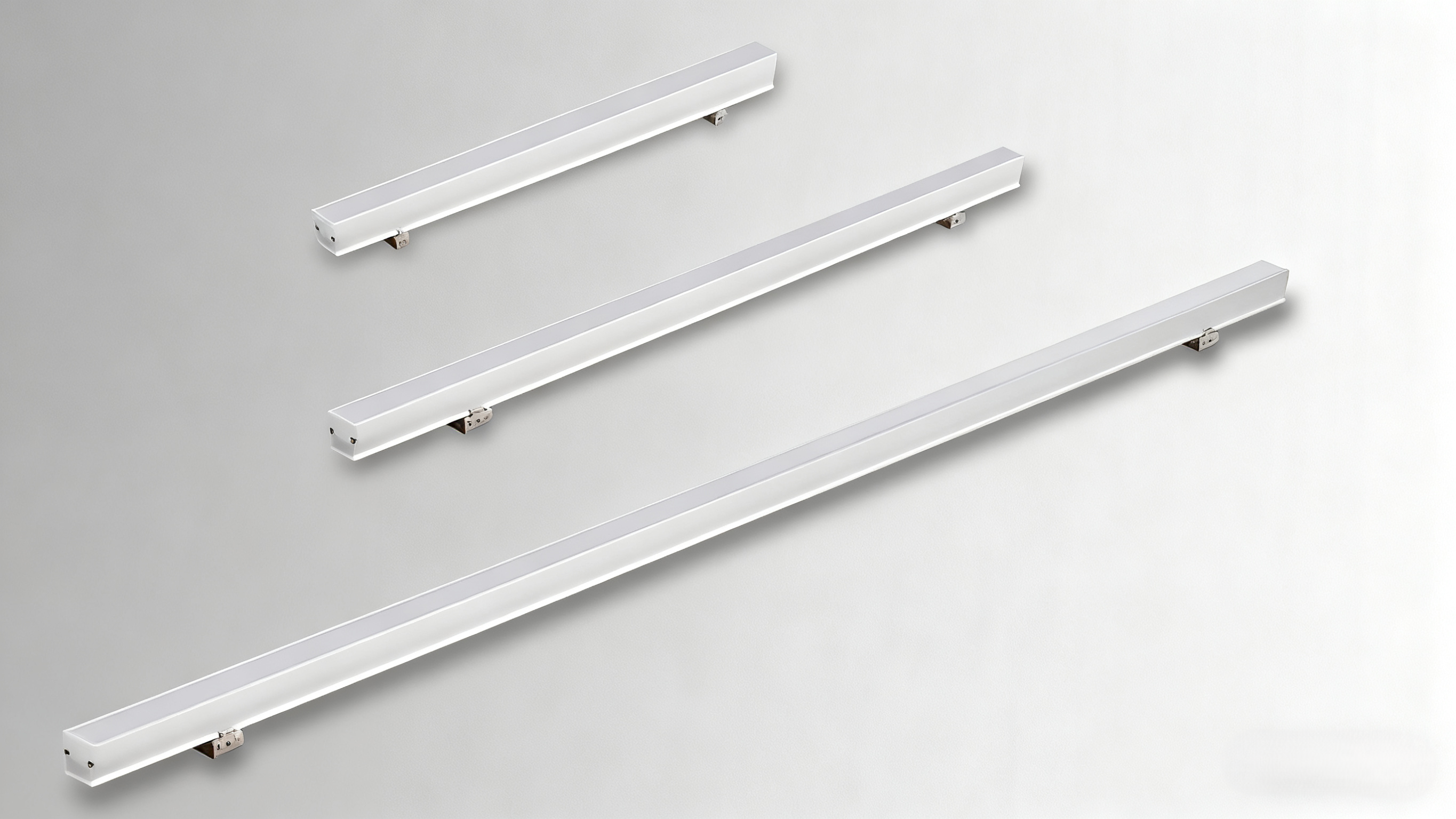

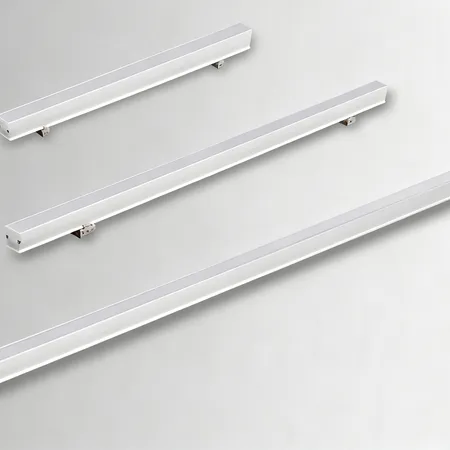

Linear Lights HRCV3E

US $20.00 - US $35.00

Production Lead Time:

60 day(s)

Shipping Method:

Sea

Description

Contact Supplier

DESCRIPTION

1. Elegant ultra-slim profile high brightness LED pixel linear light that integrated easily into architectural features for outdoor applications or formed into scalable large LED video display with high light transparency for building facades and commercial building

2. Choice of Cree, Orsam, Lumileds in range of whites, mono colour, RGB and RGBW viewing angle at ≥110°

3. High corrosion resist anodized aluminum profile and PMMA cover

4. Complete weather-sealed fixture, IP65

5. Easy and fast installation with fixed or adjustable stainless steel brackets

6. Seamless line of light with no dark spaces when fixtures are connected in cascade

7. DC24V input. PLC controllable version available, enable infinite color hues and real time color wheel control

8. High brightness contrast level for smooth and consistent color change effect

Model #	HRCV3E	HRCV3E120
LED Quantity	96(48RGB+48W)	120(60RGB+60W)
Power	11.52W	14.4W
Lumen	454 lm	567 lm
Luminous Efficacy	46.1 lm/W	46.1 lm/W
Beam Angle	110°
Voltage	DC24V
CCT	RGB W
Ra	80
Life time (hrs)	50,000
IP	65
Environmental Range	-40°C ~ 50℃ (temperature)/10%-95% RH (humidity)
Material	High strength stretched aluminum
Cable interconnect	Signal/power supply.outdoor specialized rubber sheath wine
Dimension	10002020mm
Weight	0.37Kg
