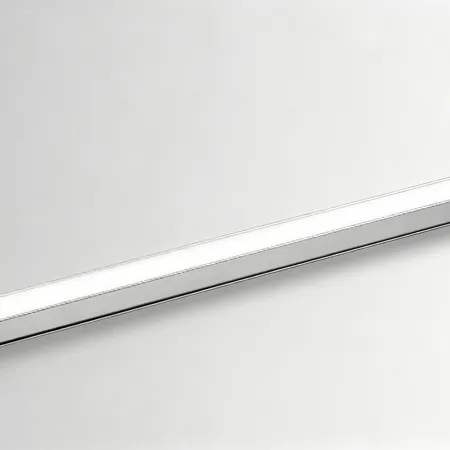

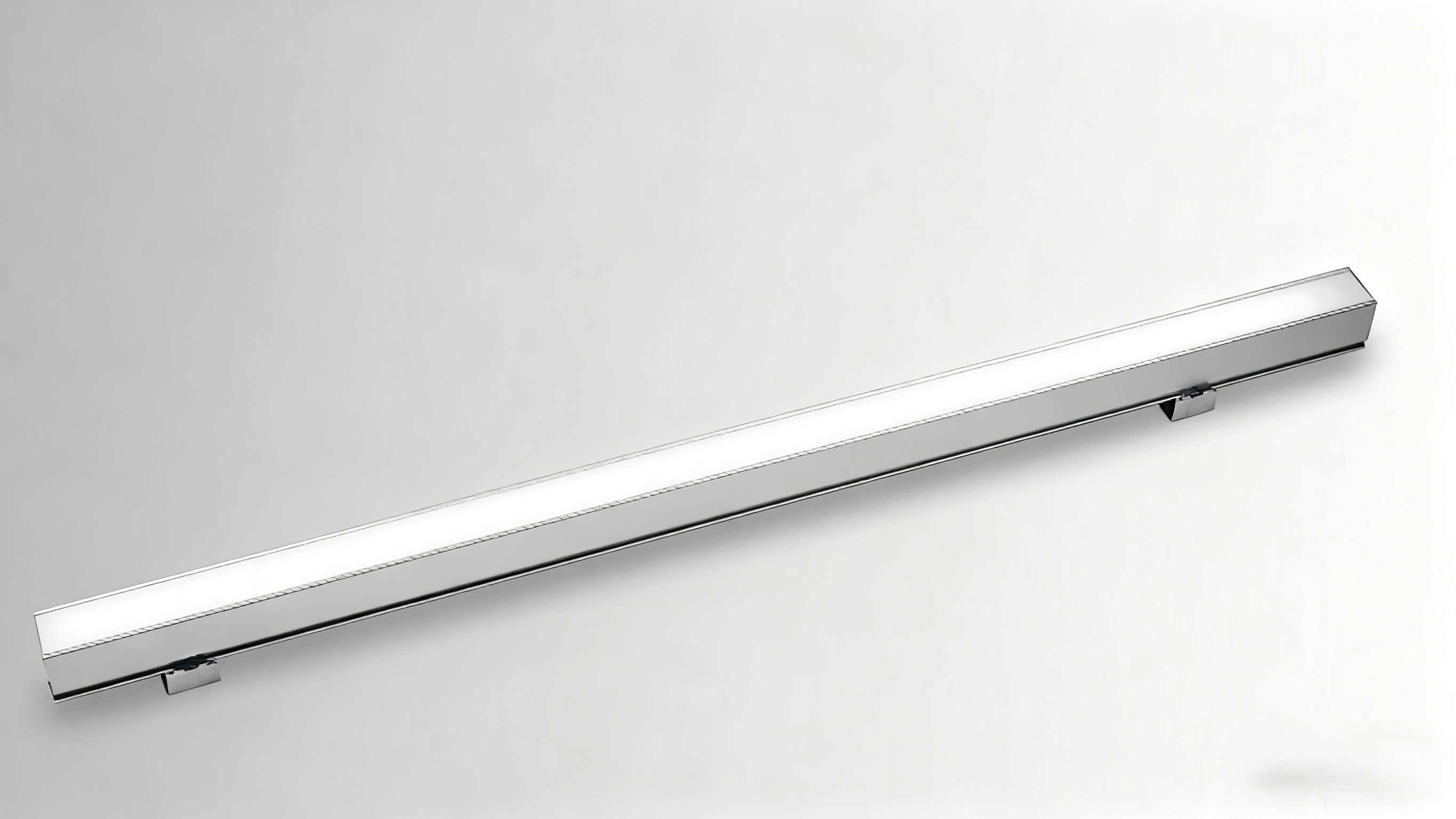

Linear Lights HRCX3C
US $20.00 - US $35.00
Production Lead Time:
60 day(s)
Shipping Method:
Sea
Description
Contact Supplier
Description
DESCRIPTION
1. Elegant ultra-slim profile high brightness LED pixel linear light that integrated easily into architectural features for outdoor applications or formed into scalable large LED video display with high light transparency for building facades and commercial building
2. Choice of Cree, Orsam, Lumileds in range of whites, mono colour, RGB and RGB+W
3. High corrosion resist anodized aluminum profile and PMMA cover
4. Completely weather-sealed fixture, IP65
5. Easy and fast installation with fixed or adjustable stainless steel brackets and high wind resistance level
6. Seamless line of light with no dark spaces when fixtures are connected in cascade
7. DC24V input. PLC controllable version available, enable infinite color hues and real time color wheel control
8. Easy and neat installation with adjustable mounting brackets and cable stowed compartment
| Model # | HRCX3C | HRCX3C60 |
| LED Quantity | 48(24RGB+24W) | 60(30RGB+30WV) |
| Power | 11.52W | 14.4W |
| Lumen | 454 lm | 567 lm |
| Luminous Efficacy | 39.4 lm/W | 39.4 lm/W |
| Beam Angle | 120° | |
| Voltage | DC24V | |
| CCT | RGB W | |
| Ra | 80 | |
| Life time (hrs) | 50,000 | |
| IP | 65 | |
| Environmental Range | -40°C~50°C(temperature)/10%-95% RH (humidity) | |
| Material | High strength stretched aluminum | |
| Cable interconnect | Signal/power supply.outdoor specialized rubber sheath wine | |
| Dimension | 1000*23.5*43mm | |
| Weight | 1Kg | |
