Linear Narrow Frame Panel Series

US $25.00 - US $80.00

Production Lead Time:

30 day(s)

Shipping Method:

by sea

Model No.:

DWN1010024

Input Voltage:

AC220-240V

Power:

24W

LED Source:

SMD2835

Color Temp:

3000K,4000K,5700K

CRI:

Ra>80

Power Factor:

>0.9

IP Rate:

IP40

Optional:

0-10V dimming, Dali dimming, or traic dimming

MOQ:

300PCS

Certificate:

CE, RoHS, CB,SAA

Warranty Time:

5 Years

Payment Terms:

T/T

Supply Ability:

7000pcs per month

Description

Contact Supplier

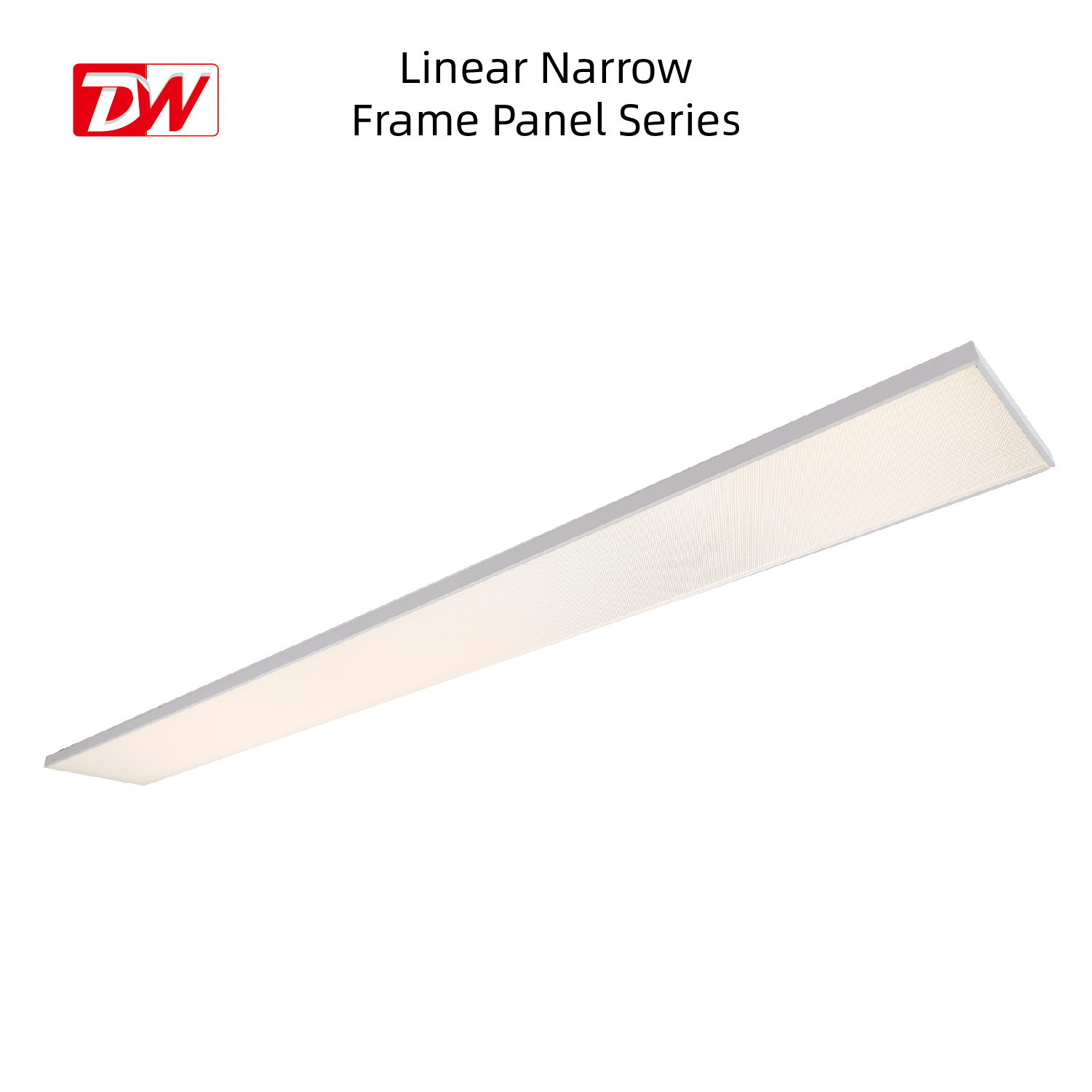

Linear Narrow Frame Panel Series

◈ FEATURES

Only 4mm width frame;

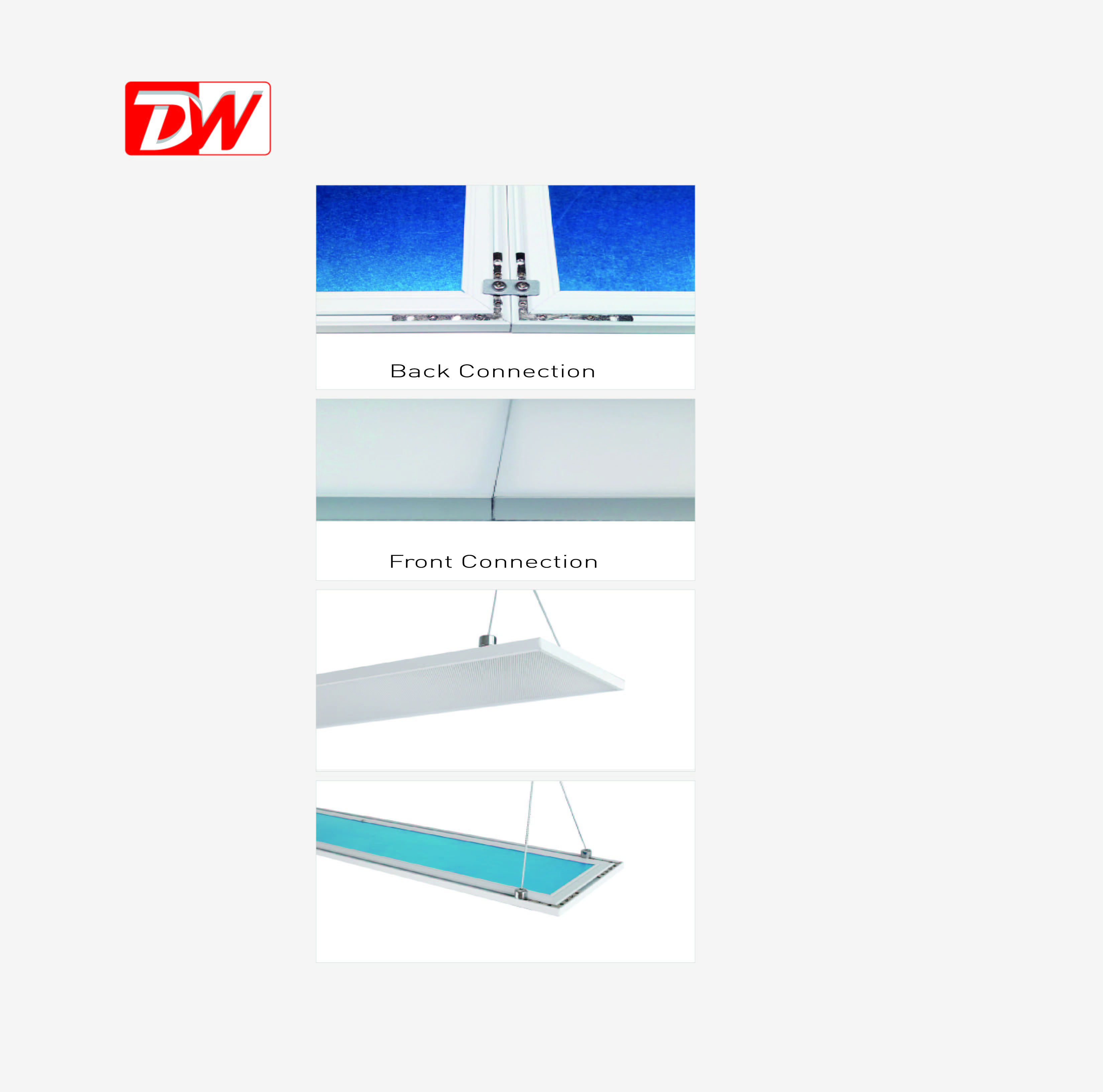

Linear Linkable features enable users to expand the space easily and install these panels as long as they want;

Pure PMMA LGP, resistant color becoming yellowing;

Be able to connect one by one into different shapes􀀙

Diversiﬁed installation way;

UGR<19 is also very good choice;

◈ ADVANTAGE

TUV Listed CE, CB, and RoHS, SAA,ISO9001;

Linear Linkable features enable users to expand the space easily and install these panels as long as you want;

High efficient lumen output to be 100lm/w;

Same theory as standard panel is used together with innovation technology to achieve such frameless functions;

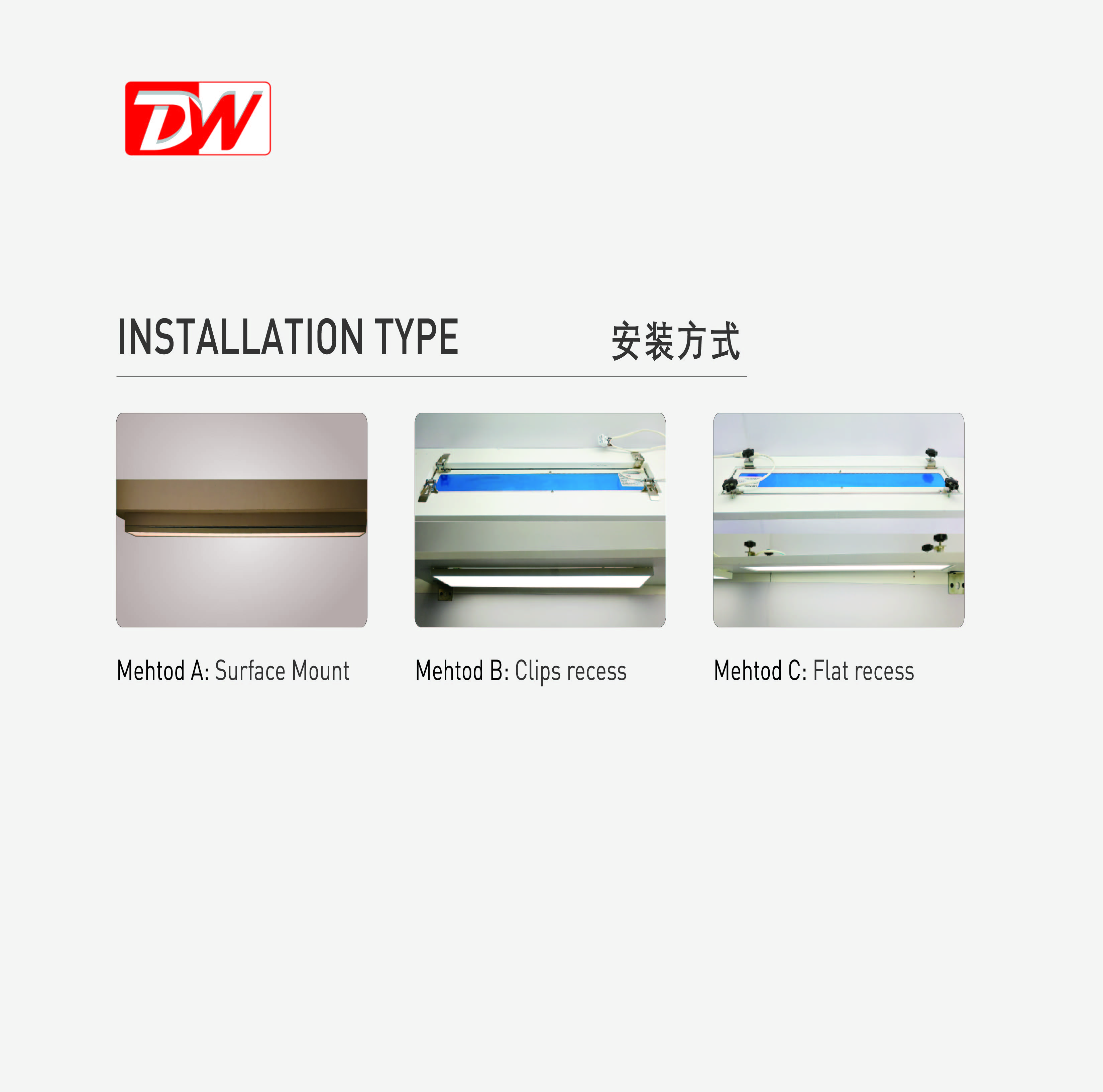

Diversified installation way: Suspending, clips recessed, flat recessed, surface mount,Tunner track installation.

◈ SPECIFICATION

Linear Narrow Frame Panel Light
Photometric Parameters
NO.	Project	Parameter
1	Size	14559530mm;145119530mm;
2	LED	High luminous ﬂux SMD LED Samsung/Osram
3	Luminous Efﬁciency	100 Lm/W
4	CCT	3000K-6500K (warm white, natural white, cool white)
5	CRI	≥80
6	Beam Angle	120°
7	LED Lifespan	≥50000 Hours
Electrical Parameters
8	Driver Input Voltage	AC220-240V /50-60Hz
9	OutputVoltage	DC30-40V
10	Power Supply Efﬁciency	≥88%
11	Power Factor	≥0.9
12	Protection Class	Class II
General Parameters
13	Rating IP	IP40
14	Material	Aluminum + PMMA
15	Frame Finishing	White
16	Installation	Recessed/Pendant
17	Working Temperature	-20～+45℃
18	Storing Temperature	-40～+60℃
19	Working Humidity	15%~90%RH

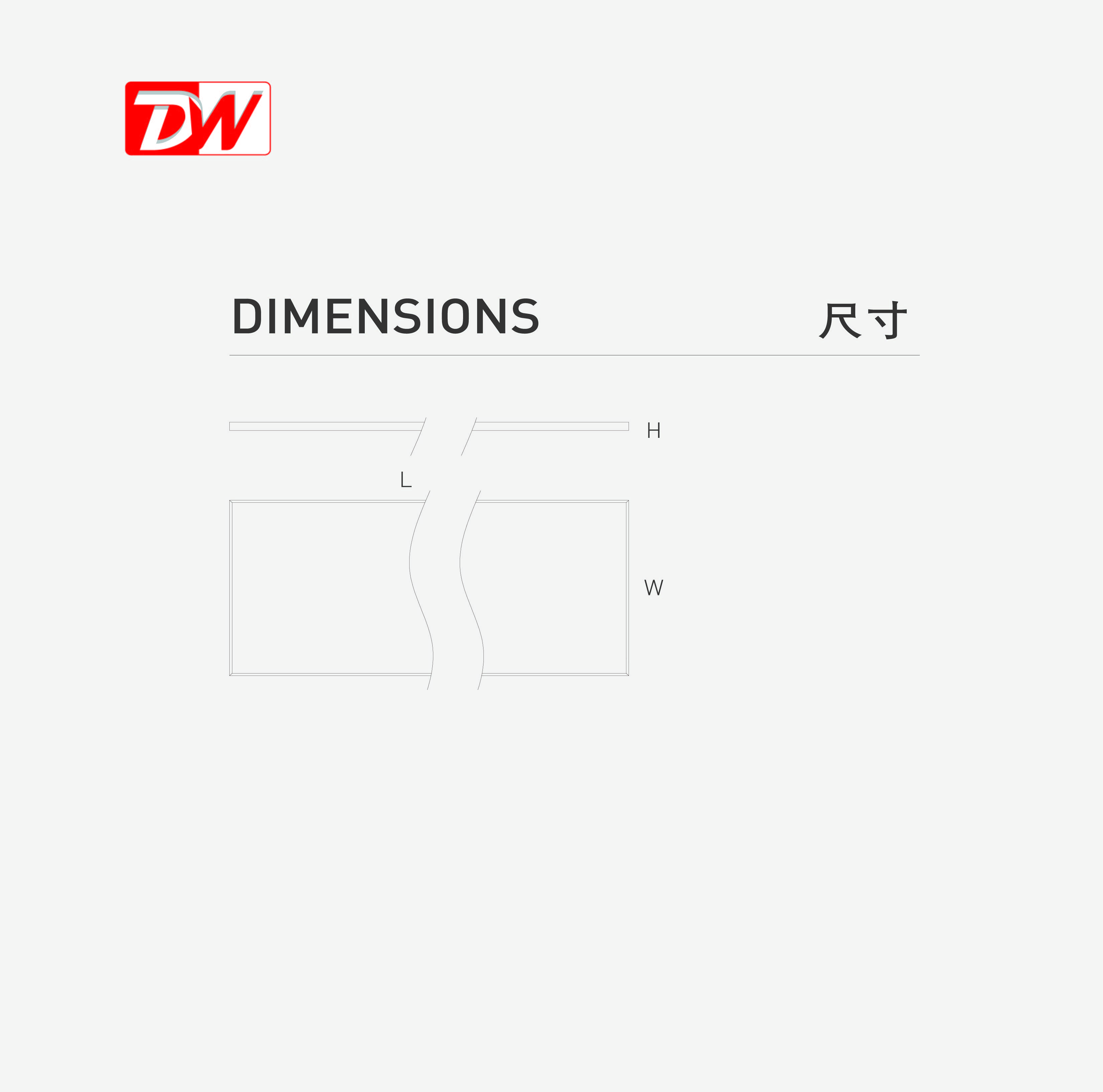

◈ SIZE

Efficiency	Model No.	Wattage	Luminous flux	CRI	LED	Dimension
100lm/W	DWF146036	36W	2800lm	80Ra	SMD4014	145x595x30mm
	DWF1412036	36W	3600lm	80Ra	SMD4014	145x1195x30mm
	DWF1412048	48W	4800lm	80Ra	SMD4014	145x1195x30mm
