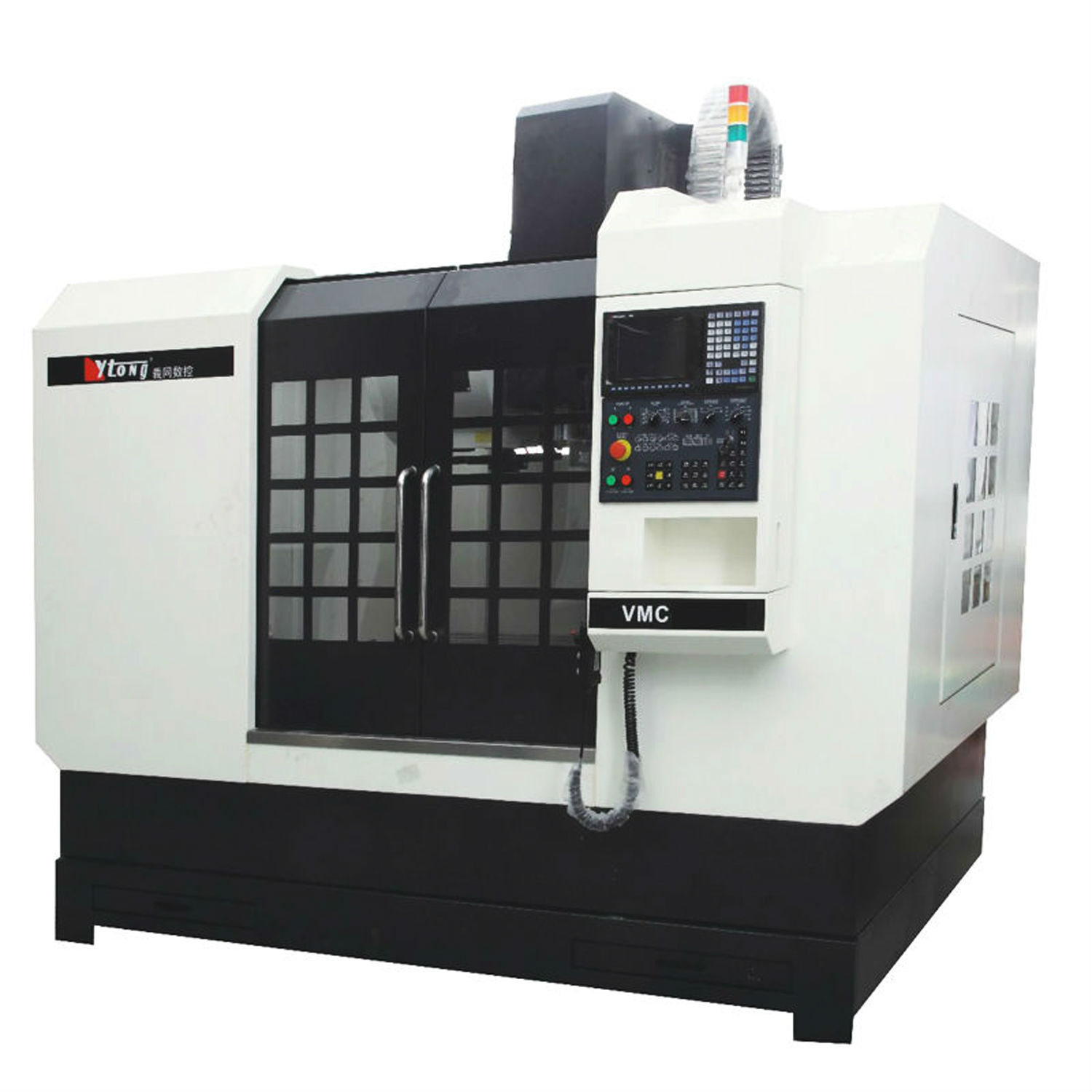

Linear Way CNC Milling Machine Center Vertical Machine Center

Model No.:

VMC-540L3

Brand:

Yitong

Size:

(L x W x H) (mm) 2200 x 2300 x 2200

Customised:

Yes

Type:

Vertical

Description

Contact Supplier

Model VMC-540L3
Table size (mm) 700x420
Travel Longitude(X) (mm) 560
Travel Crossward(Y) (mm) 410
Travel Vertical (Z) (mm) 450
Distance between Spindle and table (mm) 110-560
Distance between Spindle and column (mm) 453
Spindle Rotation speed (rpm) 8000/10000*/12000*/15000*
Spindle Taper BT40
Spindle Motor (KW) 5.5
RAPID Longitude (X) (m/min) 24
RAPID Crossward (Y) (m/min) 24
RAPID Vertical (Z) (m/min) 24
Cutting Feed (m/min) 10
Positioning accuracy (m/min) 0.008
Min.set moving unit (mm) 0.001
Dimension (L*W*H) (mm) 2200x2300x2200
Net Weight (KG) 3800
Max.load of table (KG) 300
L: X Y axis Linear way. L3: X Y Z axis linear way.
* means optional
With rapid and percise performance. The best choice for parts processing.
Linear guideway,fast response,perfect dynamic performance,fast feed rate,high positioning accuracy.
Machine's quick travel feature assure maximum efficiency of parts mass and precise processing.
Combination with fast feed,high speed spindle and high efficiency chip removal to meet coustomers'personalized choice with different processing demand.
Adopt global top brand key parts which determine whole machine with high quality level.
Elaborate physical design and manufacturing technique assure low failure rate of equipment even under high speed running.
Industrial highlights
Car pump body
Security equipment parts
Car disc brake
