Lithium Coin Cell Retainer

Model No.:

BK-6219-TR

Brand:

Memory Protection Devices

Colour:

nickel

Package:

Yes

Customised:

Yes

Description

Contact Supplier

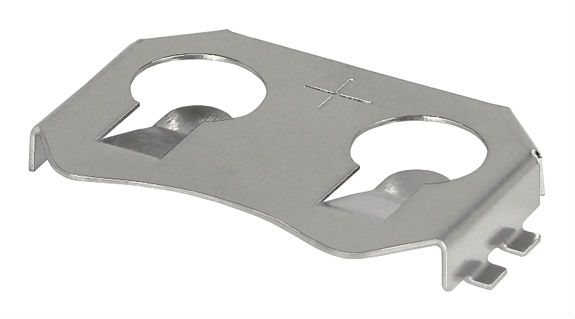

New narrow profile CR2025 battery retainer, P/N: BK-6219-TR.
MPD newest edition to the retainer family is P/N BK-6219-TR for 20 mm diameter batteries.
Its slim profile offers a 23% narrower width than other competing designs.
A low cost alternative to traditional battery holders, coin cell retainers do a great job of price versus performance.
MPD P/N: BK-6219-TR is suitable for use in greeting cards, consumer products, electronic toll tags, single-use devices, RFID and other price sensitive applications that use lithium coin cells for primary power.
MPDs lithium battery retainer has four SMD leads to solder and is made of nickel-plated phosphor bronze.
Dual pressure contacts offer low electrical resistance and are optimized to keep a tight connection with the battery.
Shock and vibration resistant per EIA-364 assures designers of trouble free use in typical applications.
The battery is easily changed without tools or instructions due to the intuitive design, and the narrow width contributes to the ease of removal.
It is sized at 22.1 mm length by 15.6 mm width and just 3mm high.
Surface mounting with four SMD leads for exceptional strength Packaged on tape and reel for automation
Economical solution Dual beam pressure contacts
Ultra-light weight, 0.48g low profile and very compact Phos-Bronze with nickel plating Typical lithium coin cells used in the BK-6219-TR retainer include the ever popular BR2025, CR2025 and DL2025 batteries.
Rechargeable types include ML2025, VL2025 and LIR2025 batteries.
The BK-6219-TR also accepts other types of batteries with a similar size and shape.
