Lock Push button Switch Vert. right angle

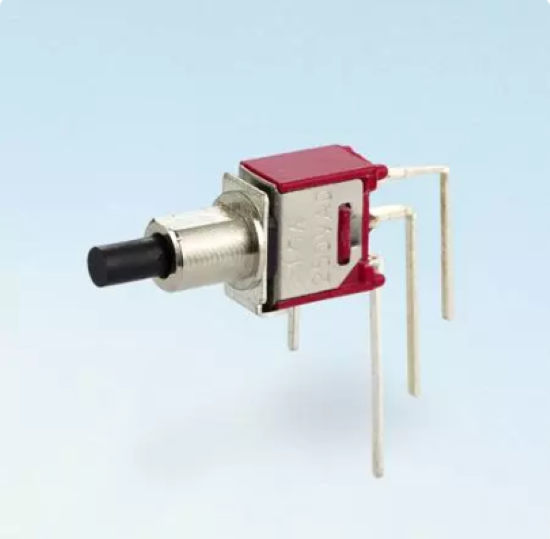

TS40-P(Lock) Sub-miniature Pushbutton Switches

This subminiature pushbutton switch is lock type and comes with vertical right angle, PC thru-hole termination. Single pole double throw. It is perfect for Telecommunications and networking equipment, Instrumentation and controls, Computers and peripherals.

Features

• Configuration: SPDT
• Function: On-On

Specification

• Contact Rating: 1.5A @250 VAC or 28 VDC
• Life Cycle: 6,000 make and break cycles at full load
• Contact Resistance: 20 mΩ max. initial
• Insulation Resistance: 1,000 MΩ min.
• Dielectric Strength: 1,500 VAC for 1 min.
• Operating Temperature: -30°C to 85°C

Materials

• CASE: Diallyl phthalate (DAP)
• PLUNGER: Nylon
• BUSHING: Copper alloy, nickel plated
• HOUSING: Stainless Steel
• CONTACT & TERMINAL: Copper alloy, silver plated
• SWITCH SUPPORT: Copper alloy, tin-plated

•


• Application

  • Instrumentation and controls
  • Telecommunication equipment
  • Computer peripherals
