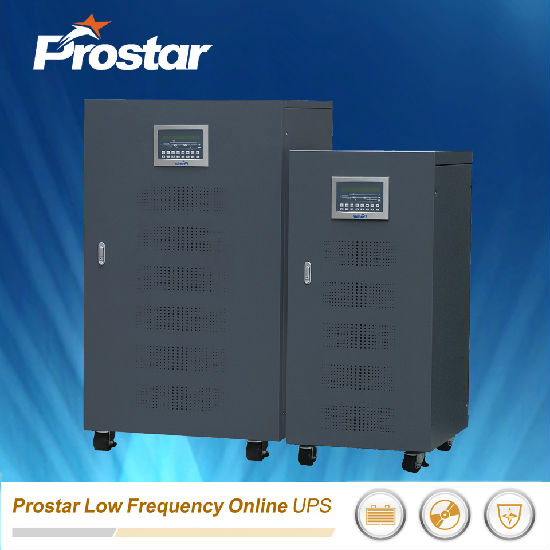

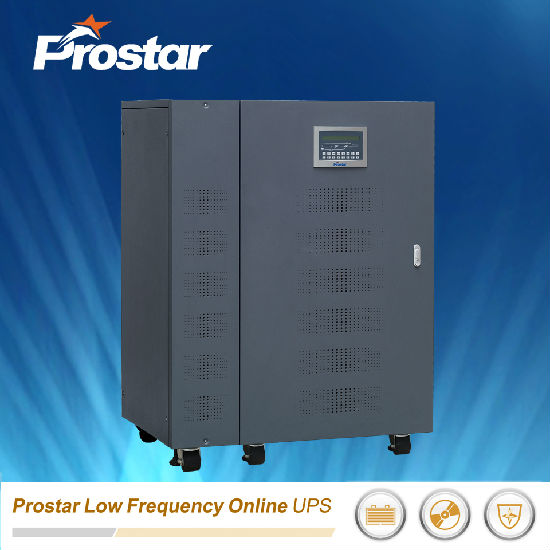

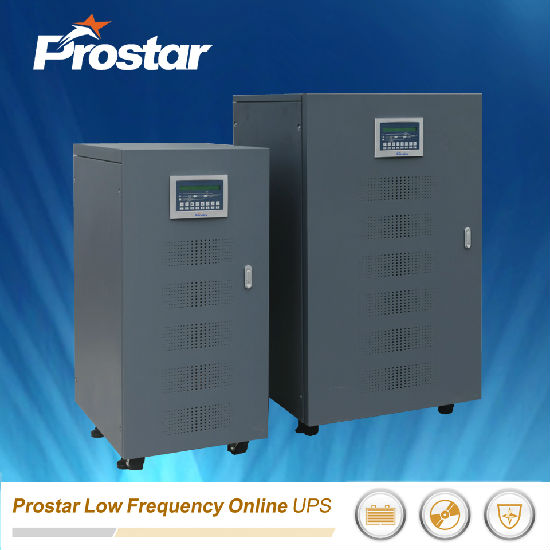

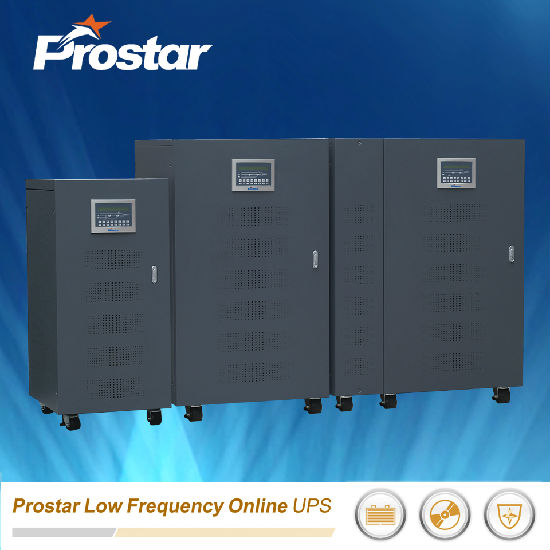

Low Frequency UPS with 6KVA to 400kVA Power
Model No.:
HT6K-HT400K
Brand:
Prostar
Port:
Foshan, China
Type of Payment:
T/T, L/C
Minimum Order Quantity:
1 piece
Protection:
Unbalanced Loads
Current Type:
AC
Input Voltage:
380V
Output Frequency:
50/60Hz
Input Frequency:
50/60Hz
Package:
Yes
Customised:
Yes
Type:
On-line
Output Voltage:
380V
Phase:
Three Phase
Application:
Instrumentation
Description
Contact Supplier
Description
DSP digital control technology:
- Core system uses the world's most advanced all-digital DSP control technology, which can effectively guarantee the UPS' core system accurate, and fast running.
- Combined high-reliable and high-efficiency IGBT inverter technology with high-frequency Pulse Width Modulation technology (PWM).
- Reliable and stable, after filtered and regulated, the output sine wave from pure-online double conversion technology, not only has the atmospheric disturbance suppression filter, but also with the standard output isolation transformers, static bypass, maintenance bypass, make this product with higher ability to engage in short circuit current. And it can be applied to the worst working environment.
- Perfectly system protection functions: It has AC over-voltage, under-voltage, output over-voltage, under-voltage, output overload, short circuit protection, inverter, rectifier over-temperature protection, voltage under-voltage warning, battery over charging protection and other protections in one to ensure the system to operate stably and reliably.
- Durable and reliable design of industrial-type modular structure, combined with full digital DSP control technology core system, make this product not only can be used for N + 1/N + X redundancy and the ability of enlarge the capacity, but also permit different power and different times of the UPS could be in parallel. It greatly reduced the user's pre-and post-purchasing costs, and increased capacity costs, but also expanded upper spaces of increasing capacity.
- The standard equipped with RS232 interface, do contact relays, emergency switching device EPO input interface.
- To achieve more than 98% of ultra-high efficiency under ECO economic model, which can effectively bring down the amount of electricity, and effective in accordance with the requirements of energy-saving target of the country.
- LCD panel automatic detection function and timely warning in advance, with the boot self-diagnosis function. It could avoid the hidden danger in time due to UPS' failure, which caused risks. Also it could automatically alarm by setting the battery discharge to standby time is less than a set value.
- Humanized panel settings, the users can set system parameters, date, output voltage, battery capacity, alarm function, light-load shutdown, system boot time, MODEM settings, such as orders, also it can be up to 120 abnormal failure information for users to query.
