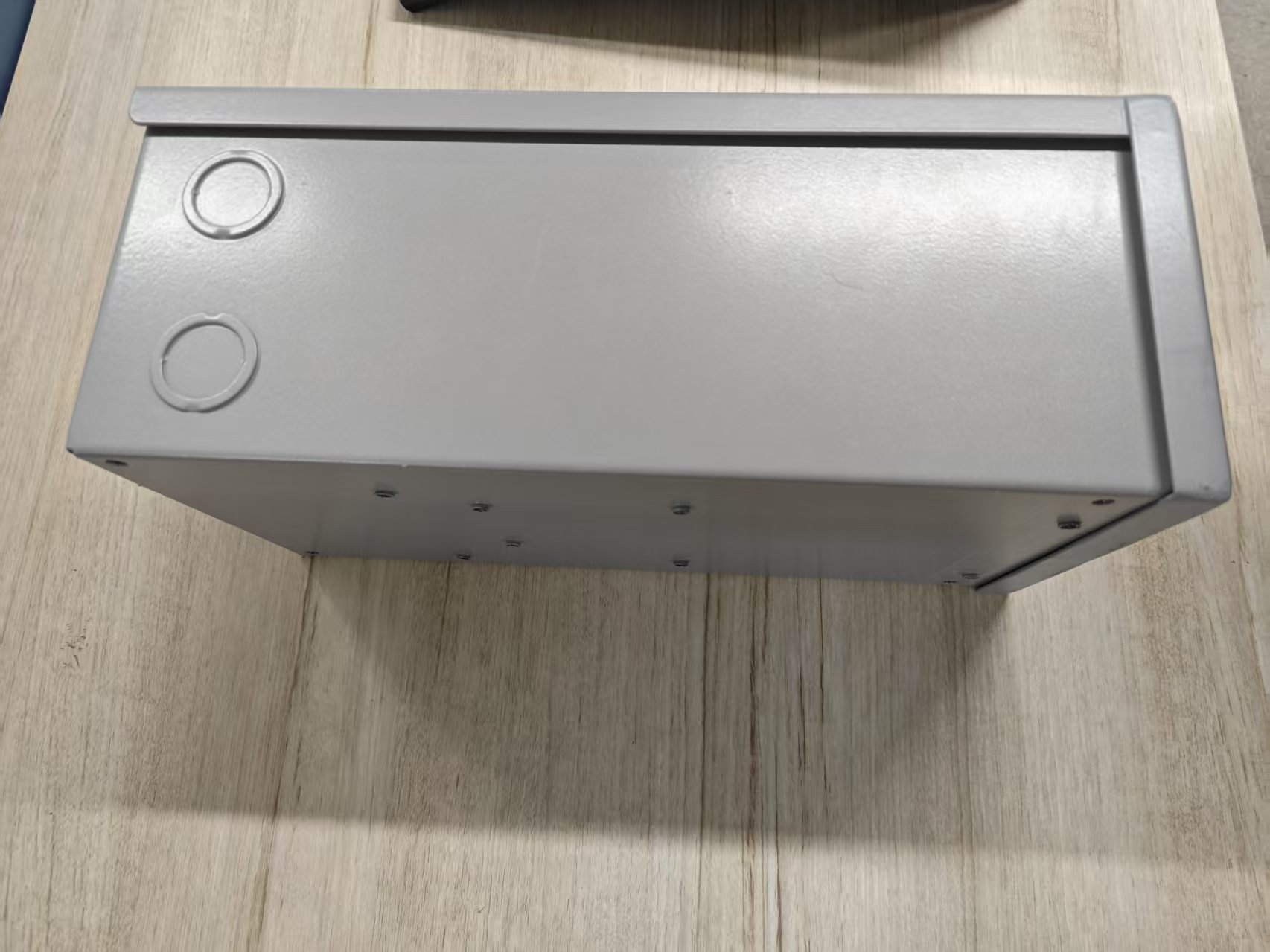

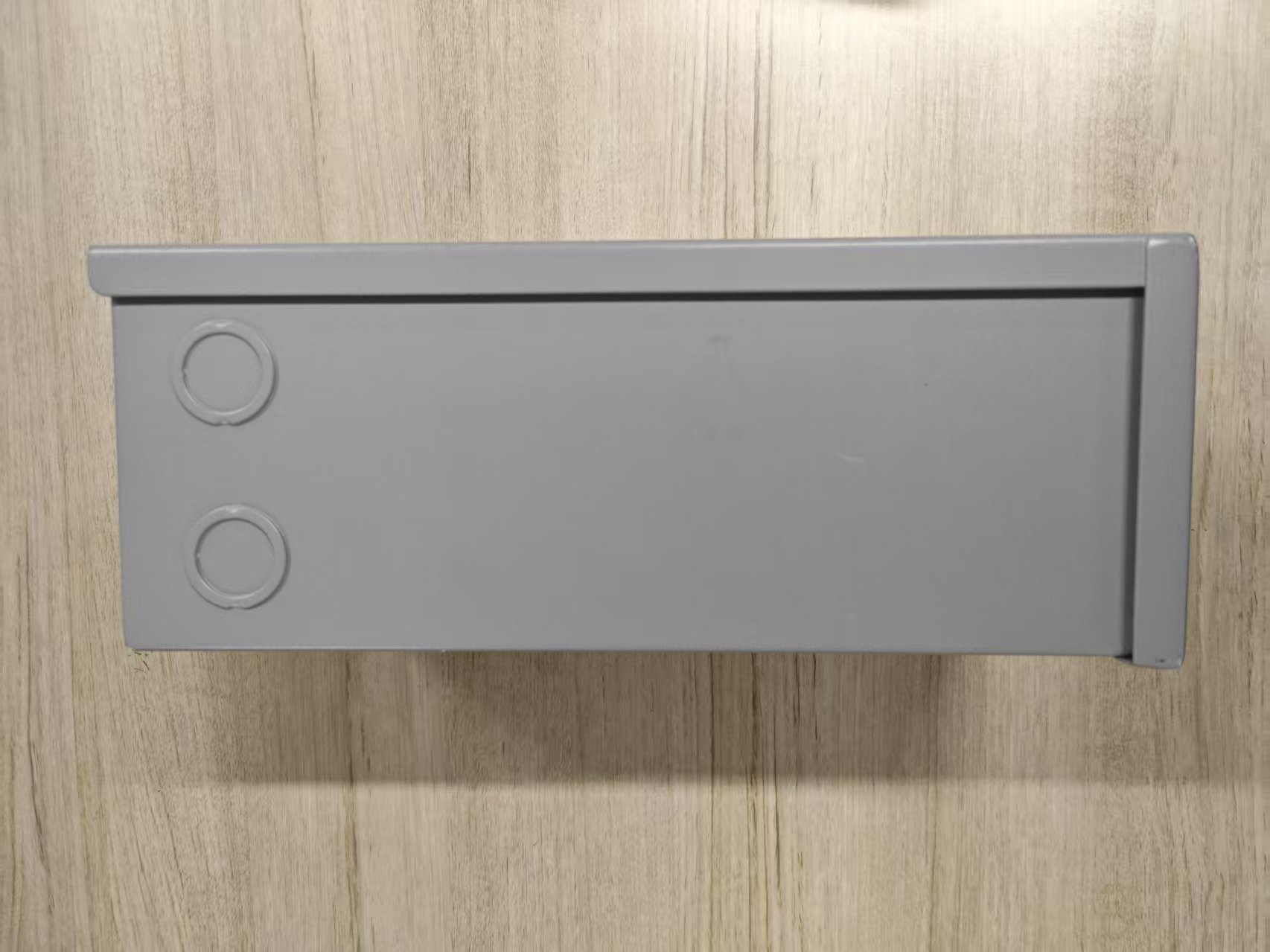

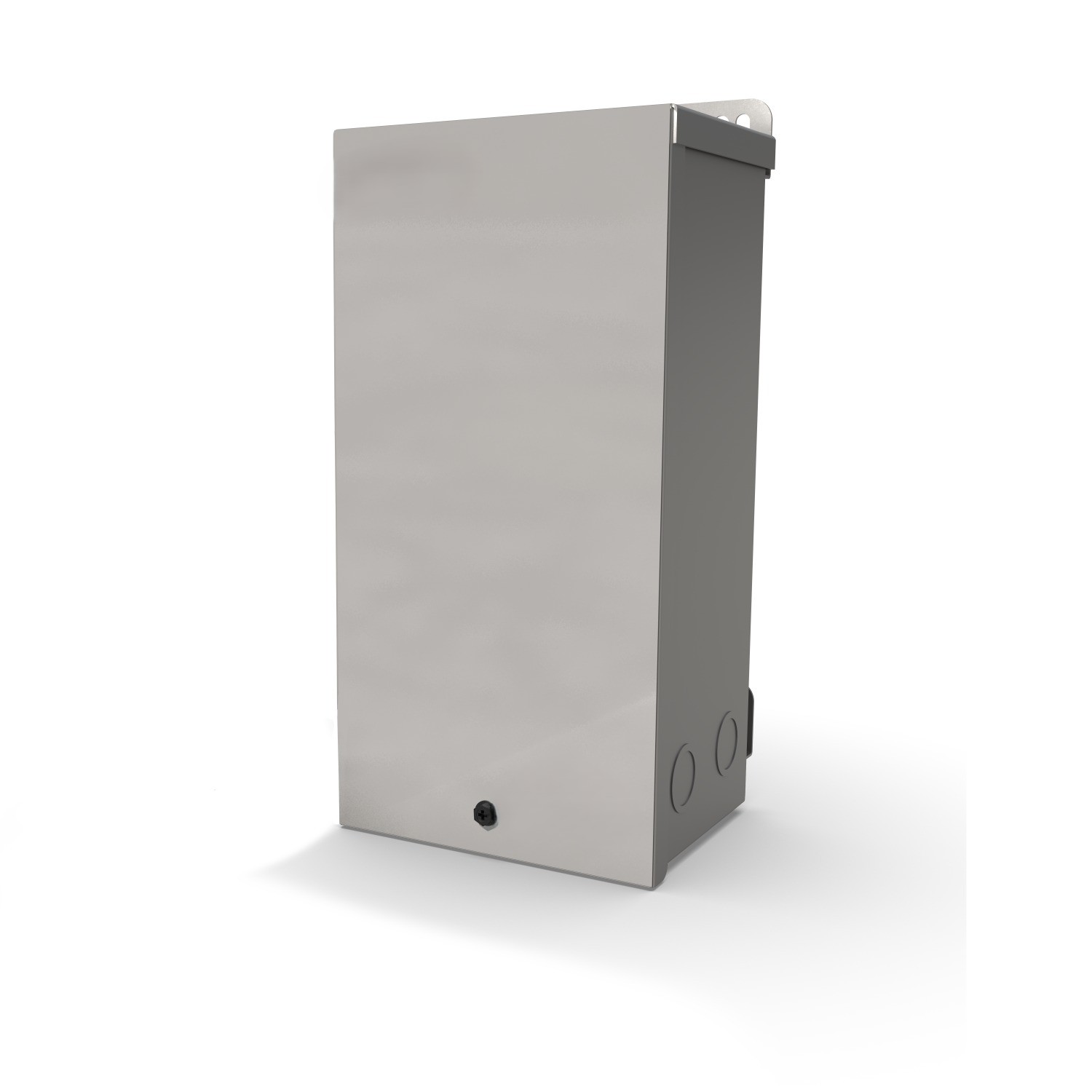

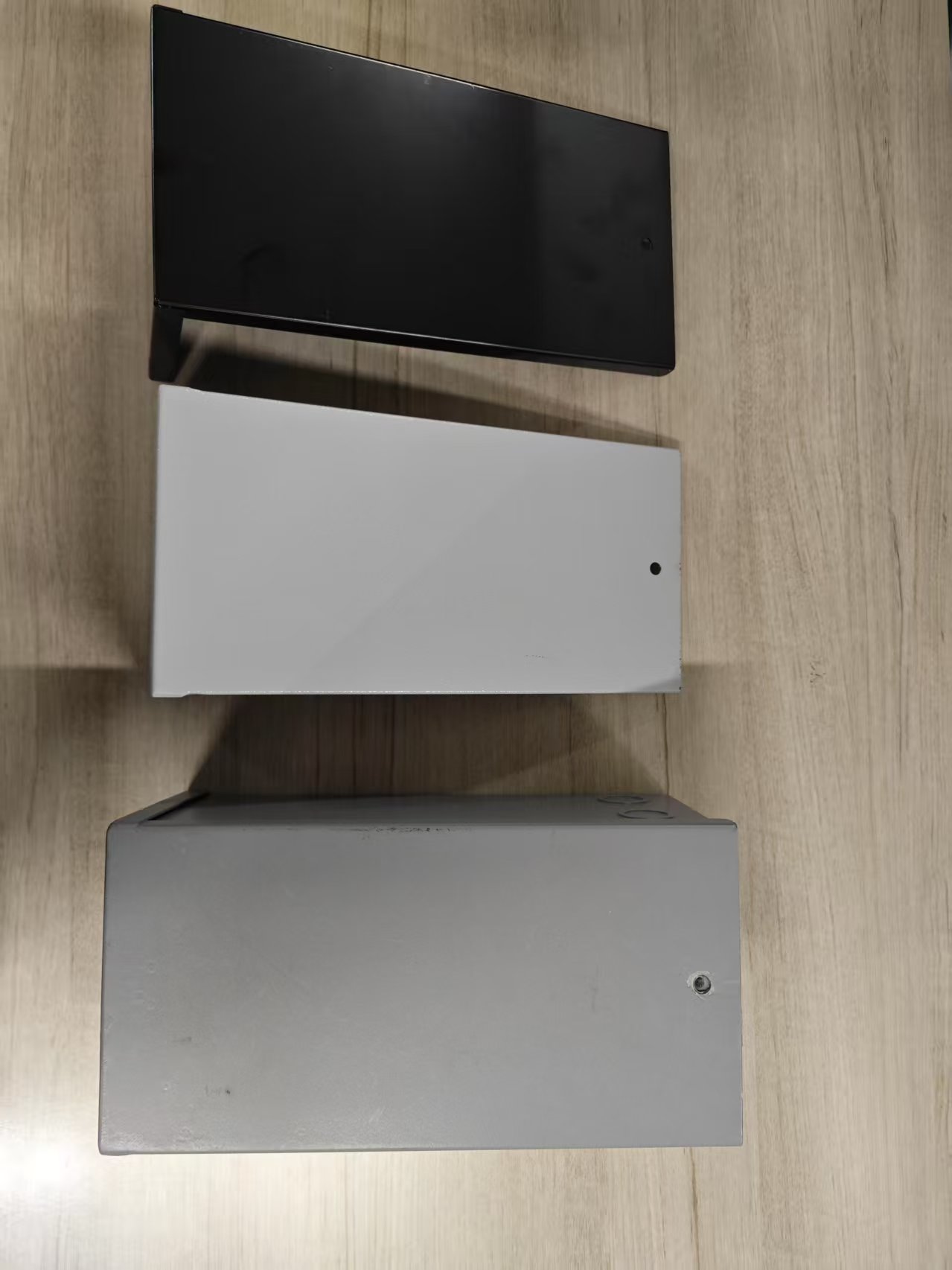

Low Voltage Transformer (Steel coating)
Share this page
US $100.00 - US $200.00
Production Lead Time:
60 day(s)
Shipping Method:
Sea
Description
Contact Supplier
Description

TRANSFORMER FEATURES

Fully-potted, insulated, single-core transformer

  • Easy on/off, secondary breaker switches on each common tap
  • Two common lug terminals
  • Amp loop to check the primary amperage on the transformer
  • Accepts plug-in-timers, has direct photocell connection
  • Angled terminal strip for easy wire connections, eliminates blind spots
  • Removable bottom panel, 5 knockouts for wire connections
  • Integrated short circuit and overoad protection
  • Includes 5' grounded heavy-gauge power cord
  • ETL tested, in conformance to ANSI/UL1838
Wattage150W300W600W
FinishPainted SteelPainted SteelPainted Steel
TimerCompatibleCompatibleCompatible
Secondary Circuit BreakerOrangeWhiteCircuit#1 & Circuit #2, White
Multi Tap12V,13V,14V,I5V12V,13V,14V,I5V12V,13V,14V,I5V
Dimensions(mm)286.5x137.4x152.4286.5x137.4x152.4286.5x137.4x152.4
DimmableNoNoNo
Warranty5 years5 years5 years
