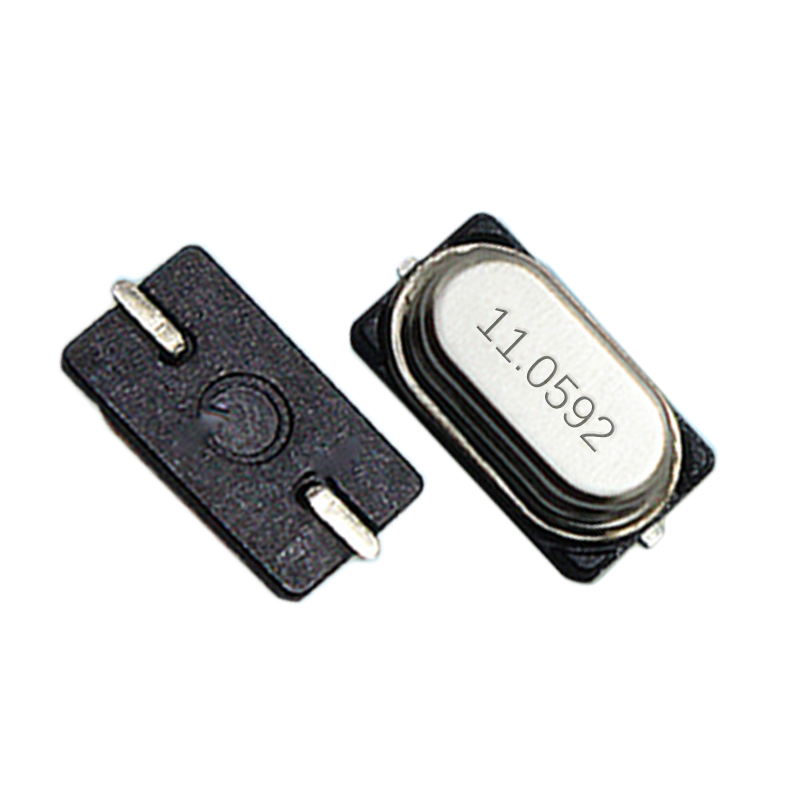

Metal Can Type SMD Crystal HC-49S SMD MS7 Series
External dimensions: 7.0x4.1x2.0mm.
Surface mount type crystal units.
Highly mass production capability.
Application: bluetooth audio.
ROHS Compliant / Pb Free.
Crystals specifications:
ITEMS/TYPE | MS7 |
Frequency Range | 8~54MHz |
Load Capacitance | 20pF, or specify |
Frequency Tolerance (at 25 ℃) | ± 10 ppm, or specify |
Frequency Stability Over Operating Temperature Range | ± 10 ppm, or specify |
Operating Temperature Range | -40 ~ +85℃, or specify |
Shunt Capacitance (C0) | 5 pF Max. |
Drive Level | 10μW (200μW Max.) |
Aging (at 25 ℃) | ± 3 ppm / year Max. |
Storage Temperature Range | - 40~+85℃ |
Insulation Resistance | 500MΩ min./DC100V |
