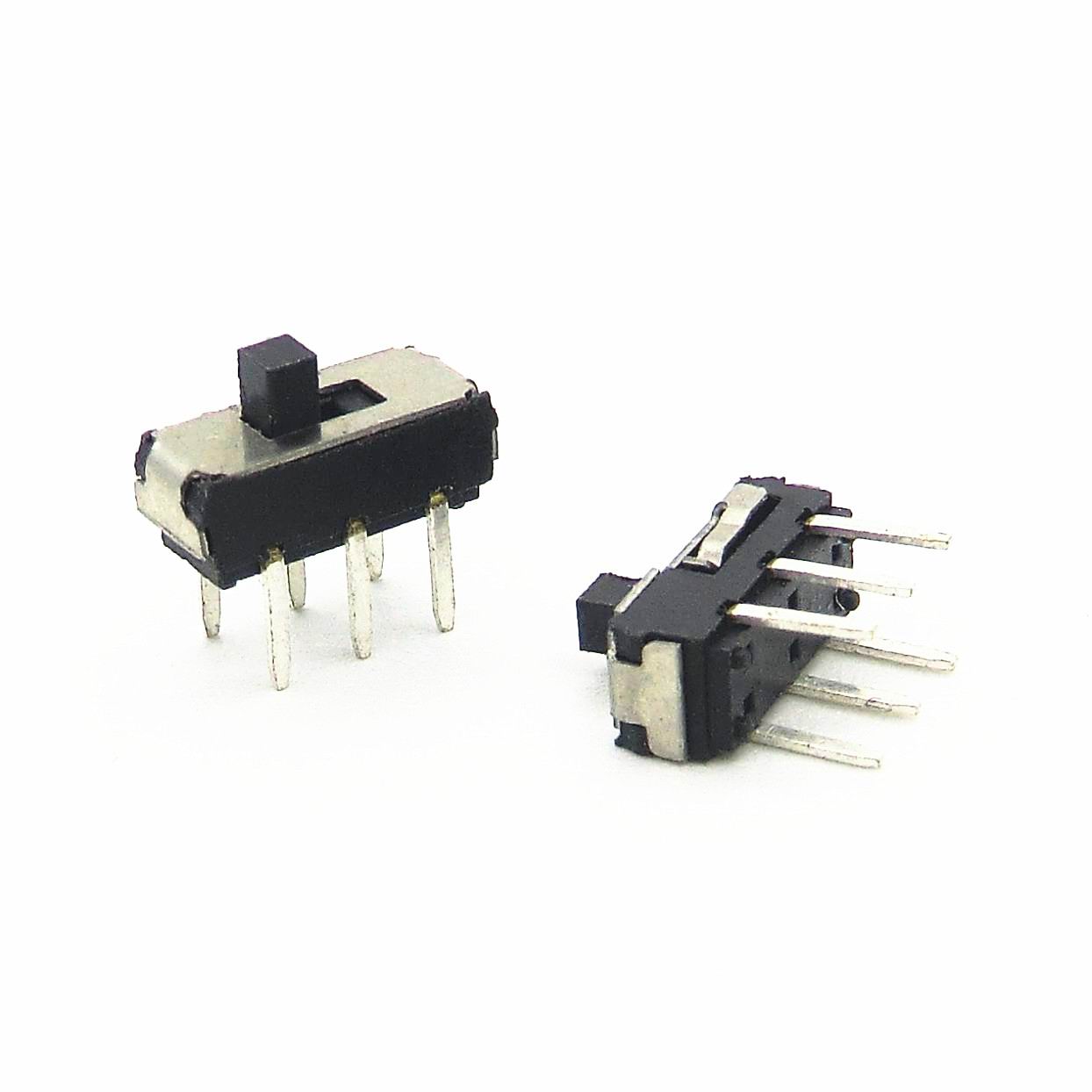

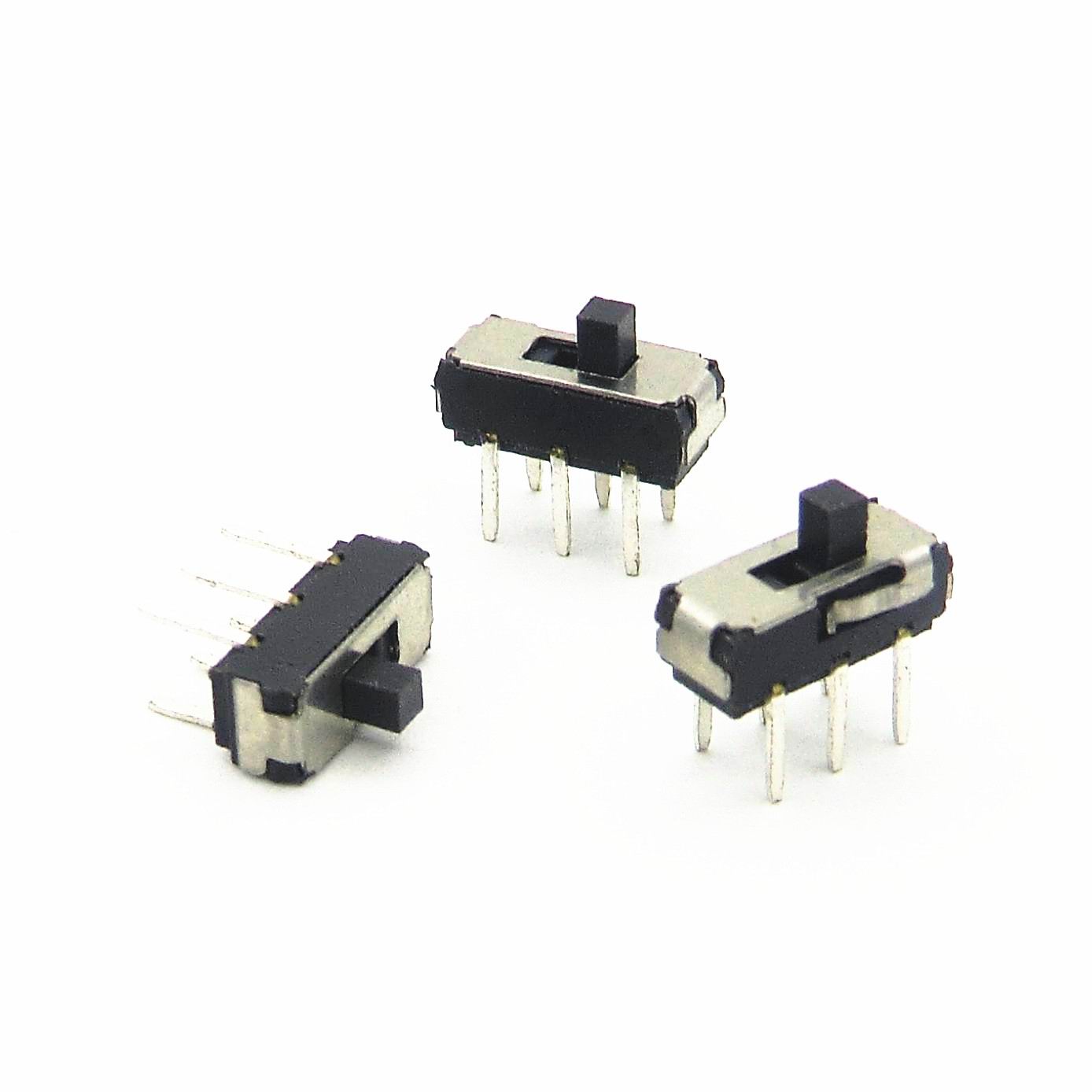

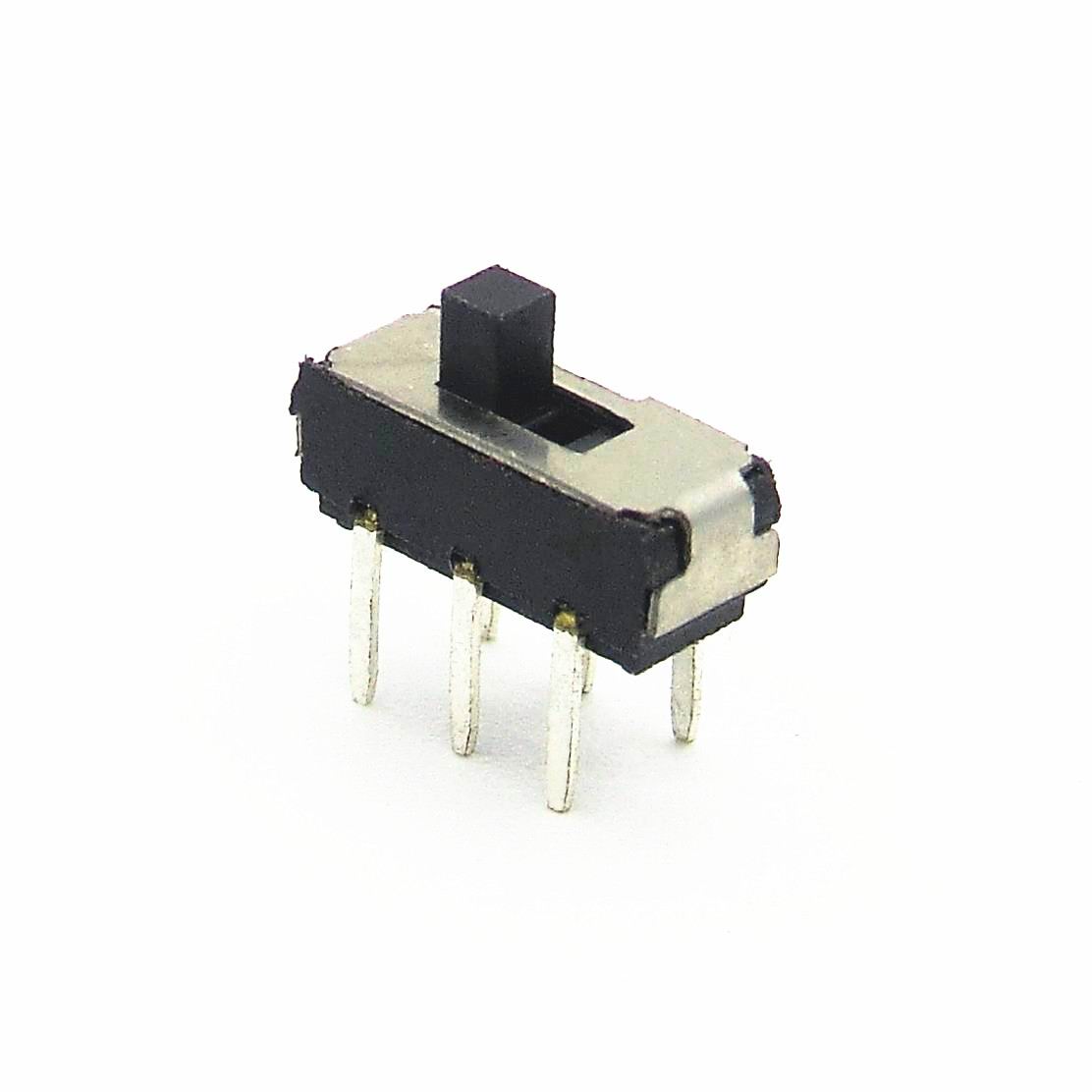

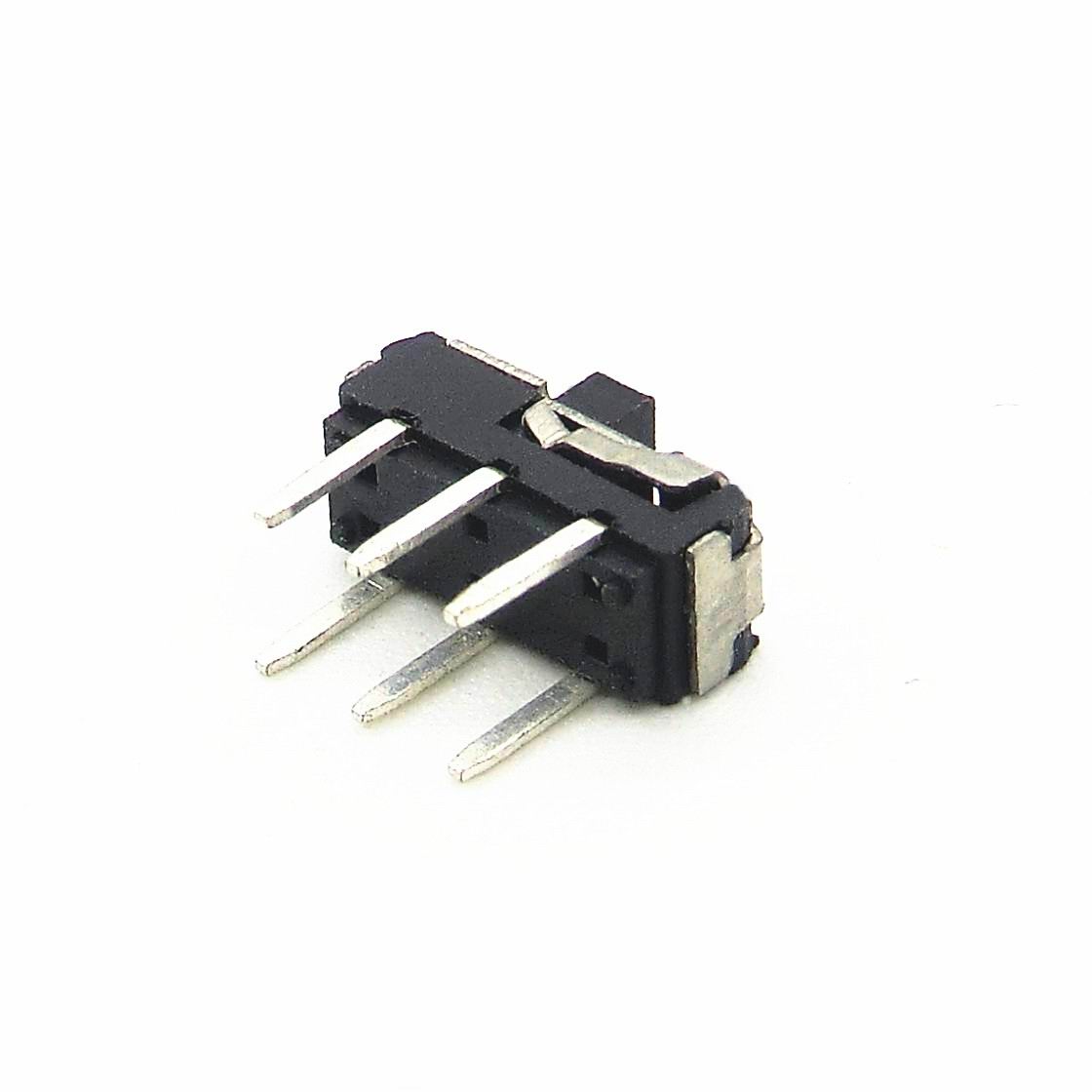

MINI SLIDE SWITCH( 2P2T)

US $0.05 - US $0.06

Production Lead Time:

15 day(s)

Shipping Method:

EXW

Application:

Power tool,Communication equipment,Medical device industry,The electronic toy industry

Brand:

Model No.:

MSS22D18

Customised:

Yes

Size:

9.0*3.5*3.5

港口:

Shenzhen or HK

付款方式:

T/T

最小订单量:

10k Piece(s)

Description

Contact Supplier

ITEM	PERFORMANCE
Title	MINI SLIDE SWITCH
Model	MSS22D18
Rating	0.3A 6V DC
Function	2P2T
Timing	Non-shorting
ContactResistance(mohms)	70mΩ max
Insulation Resistanc(Mohms)	100MΩ min at500V DC
Dielectric Strength(V)	AC 500V for 1 min
LifeTest	10000 Cycles
