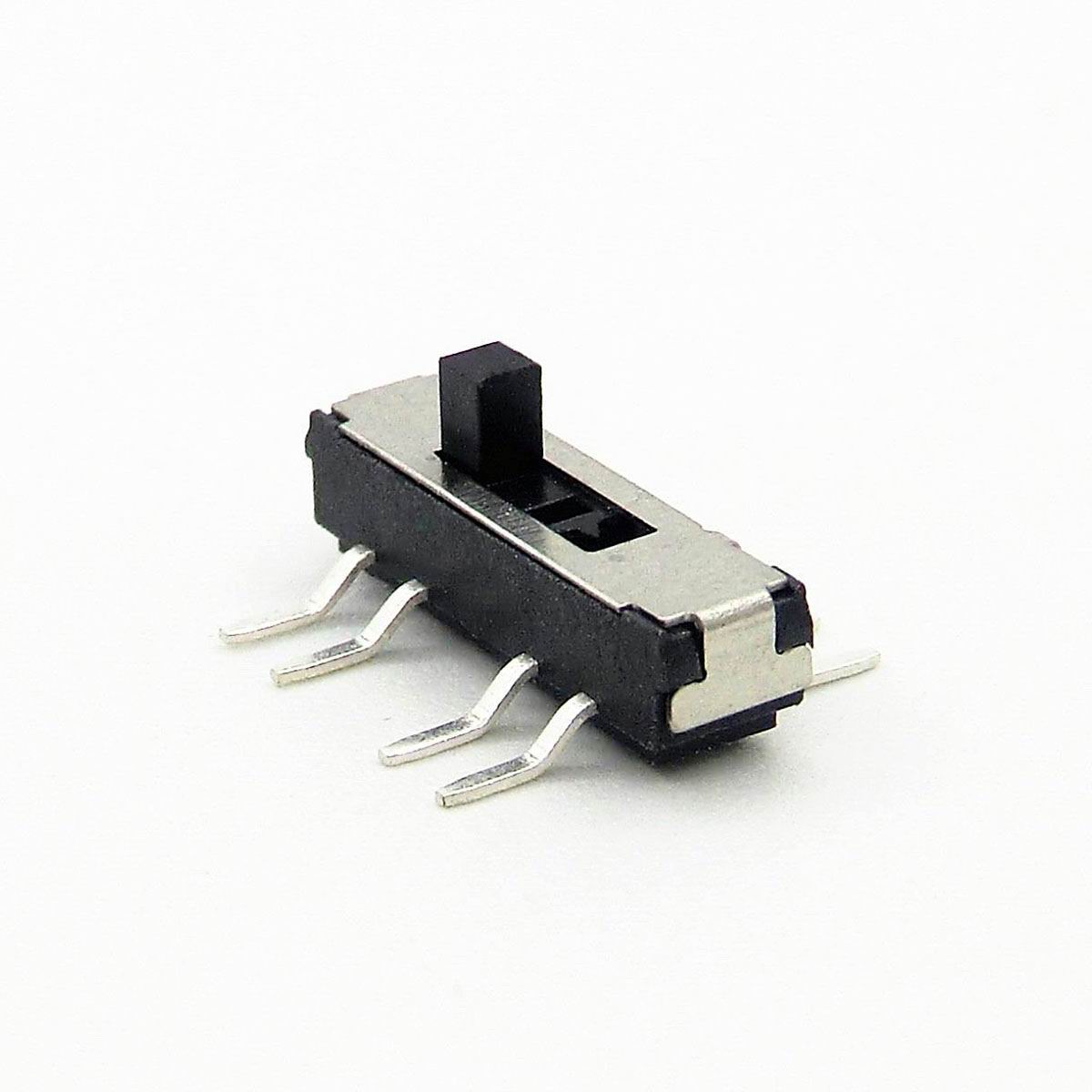

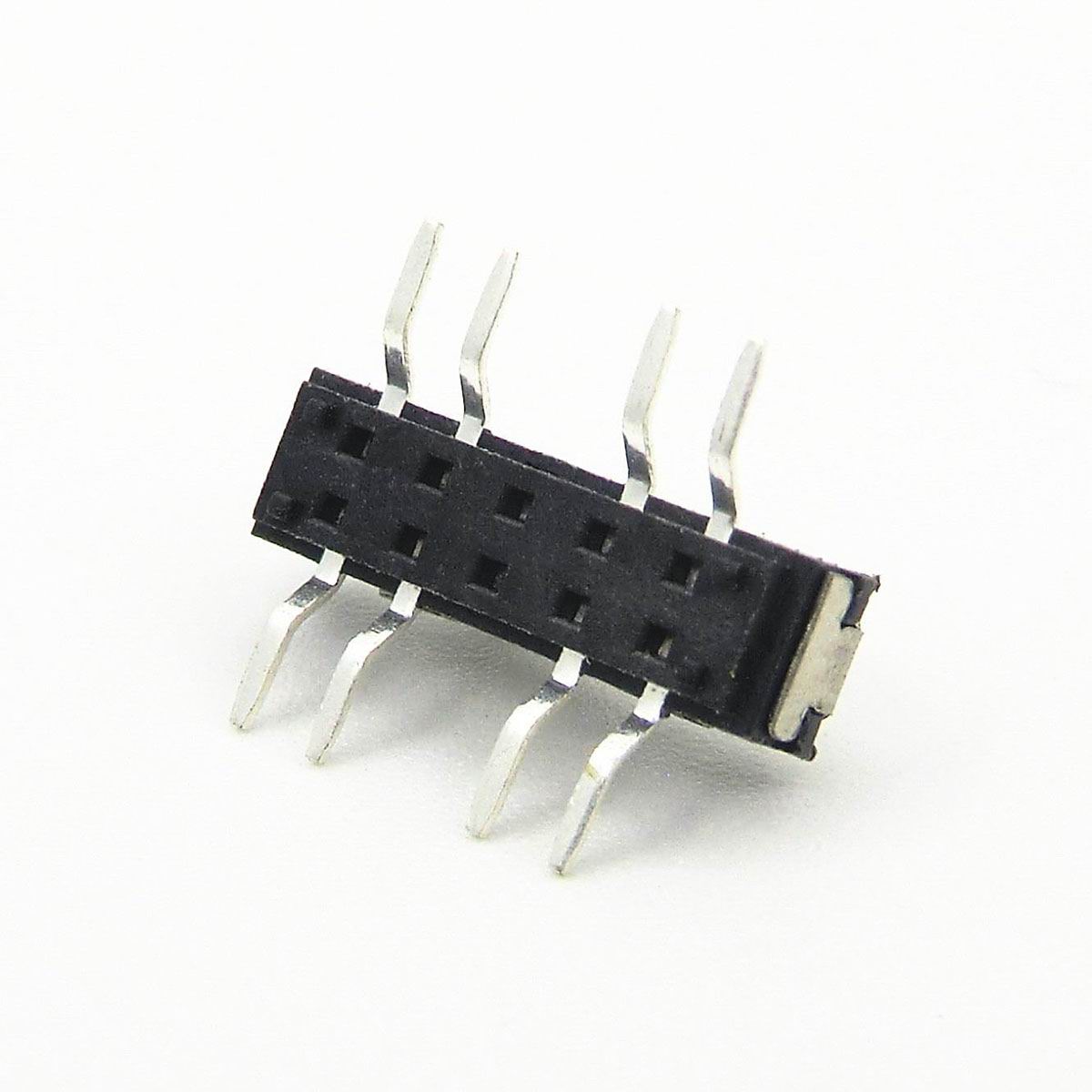

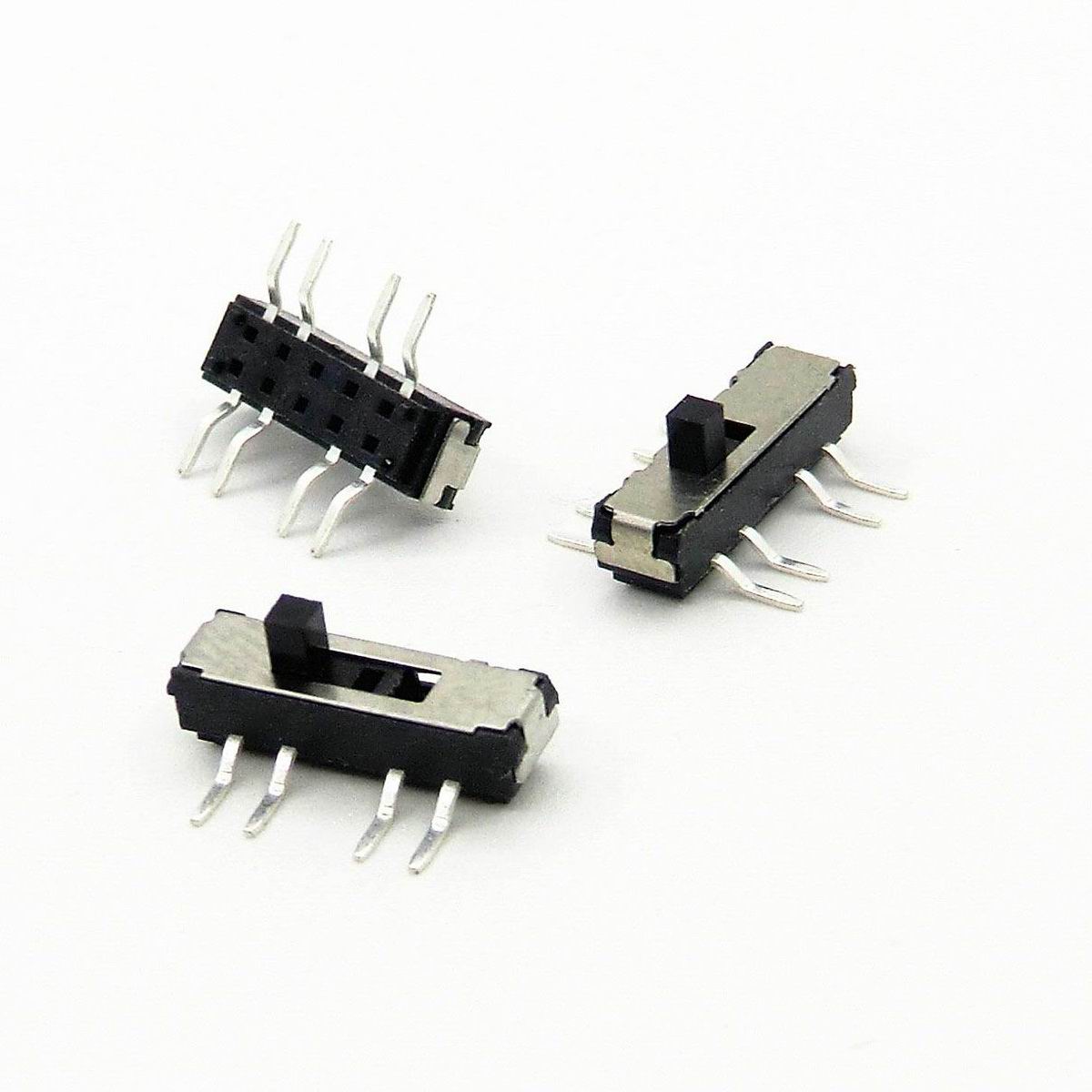

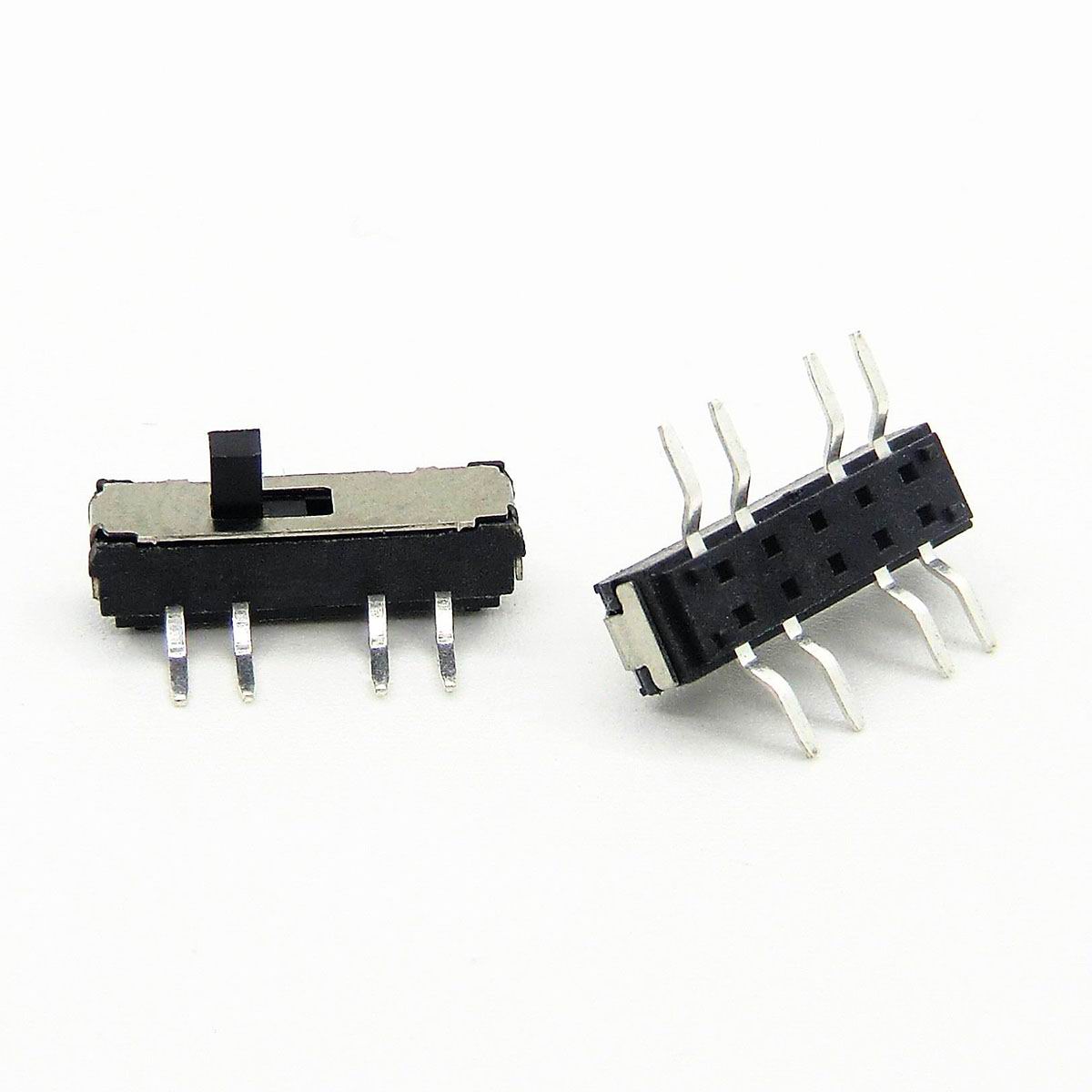

MINI Slide Switch(2P3T)
Share this page
US $0.05 - US $0.06
Production Lead Time:
15 day(s)
Shipping Method:
EXW
Application:
Power tool,Communication equipment,Medical device industry,The electronic toy industry
Brand:
KD
Model No.:
MSS23D20
Customised:
Yes
Size:
13.0*3.6*3.6
港口:
Shenzhen or HK
付款方式:
T/T
最小订单量:
10k Piece(s)
Description
Contact Supplier
Description

ITEM

  PERFORMANCE

  Title

  MINI SLIDE SWITCH

  Model

  MSS23D20

  Rating

  0.3A 6V DC

  Function

  2P3T

  Timing

  Non-shorting

  ContactResistance(mohms)

  70mΩ max

  Insulation Resistanc(Mohms)

  100MΩ min at500V DC

  Dielectric Strength(V)

  AC 500V for 1 min

  LifeTest

  10000 Cycles
