MTD003 Mini Cuttable Touch Dimmer

Production Lead Time:

7 day(s)

Shipping Method:

FEDEX, UPS, DHL, SF

Model No.:

MTD003

Power Source:

AC Power

Light Source:

LED

Application:

led wardrobe lighting, indoor lighting, led shelf lighting

Brand:

Surmountor

Customised:

Yes

Feature:

Touch switch ON/OFF with dimming and memory

Size:

55*6mm

Material:

PCB

Description

Contact Supplier

12V 24V Cuttable Switch Turn on/off touch dimmer switch touch switch with dimming function memory function for led light

Product Parameters:

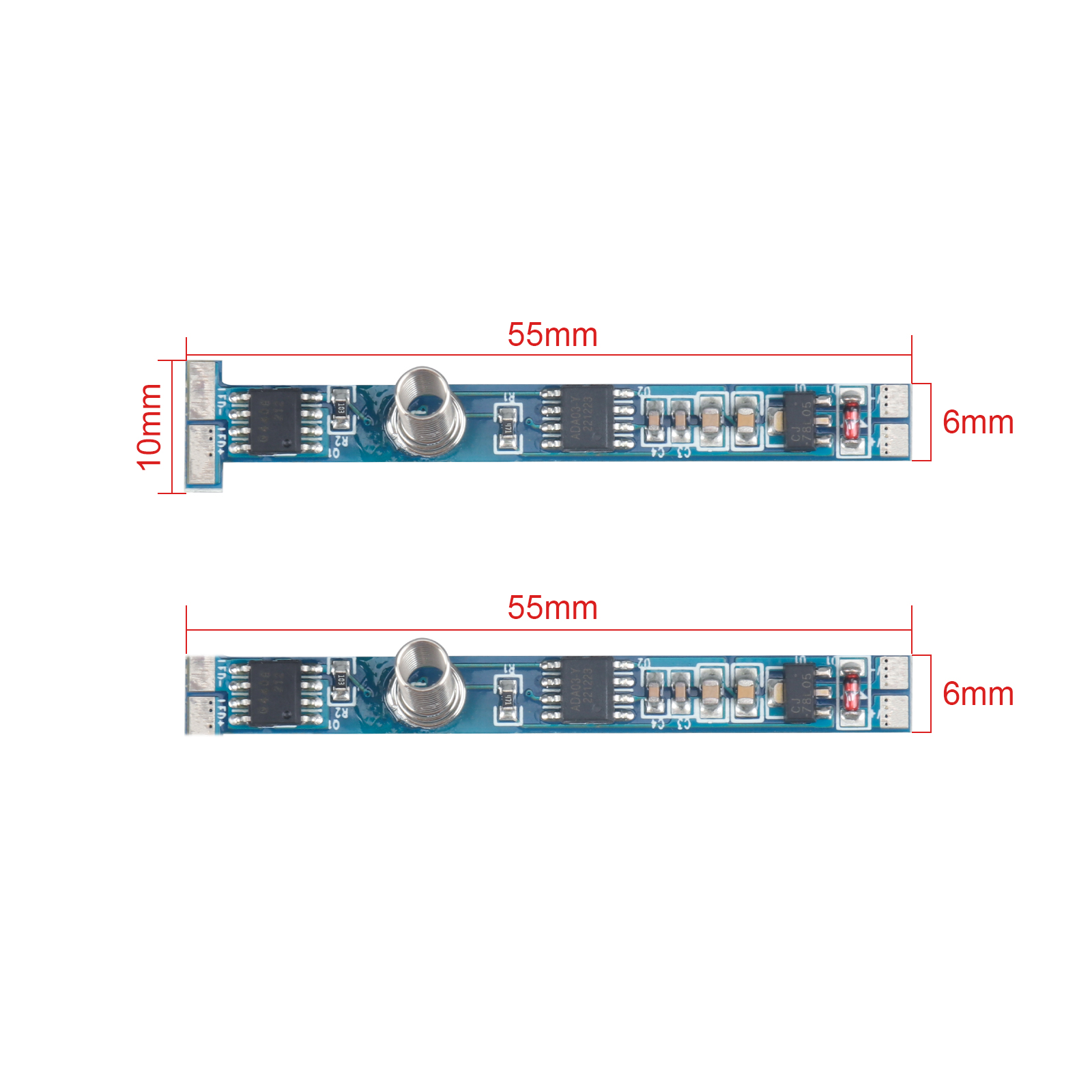

Input/Output Voltage	12-24V	Dimension	55*6mm
Current	4A	Watt	96W (12V); 192W(24V)
Model	MTD003	Certificated	CE, RoHS
Height of Spring	20mm	Function	Touch switch ON/OFF with dimming and memory
Load Around	48W for 12V, and 96W for 24V	LED Strip Width	4-12mm

Product Description:

The conductive spring needs to be covered by insulation material, such as glass, plastic or ceramic material (thickness< 3mm).
Cheap price, high cost-effective.

With memory external switch on/off and dimmer:

Originally "OFF" when the power is connected.
Quick touch (time is less than 550ms) can turn the light on and off. One touch to turn on; Another touch to turn off. The lamp is 90% bright when it is on.
Hold on touching (time is above 550ms) can adjust the brightness endlessly; It will reduce the brightness endlessly to the minimum in 3 seconds holding on when the light on.
Quick touch and hold on touching can be chosen anytime without any collision.
This sensor will memorize the status of the dimming in DC12V–24V.
