Product Description

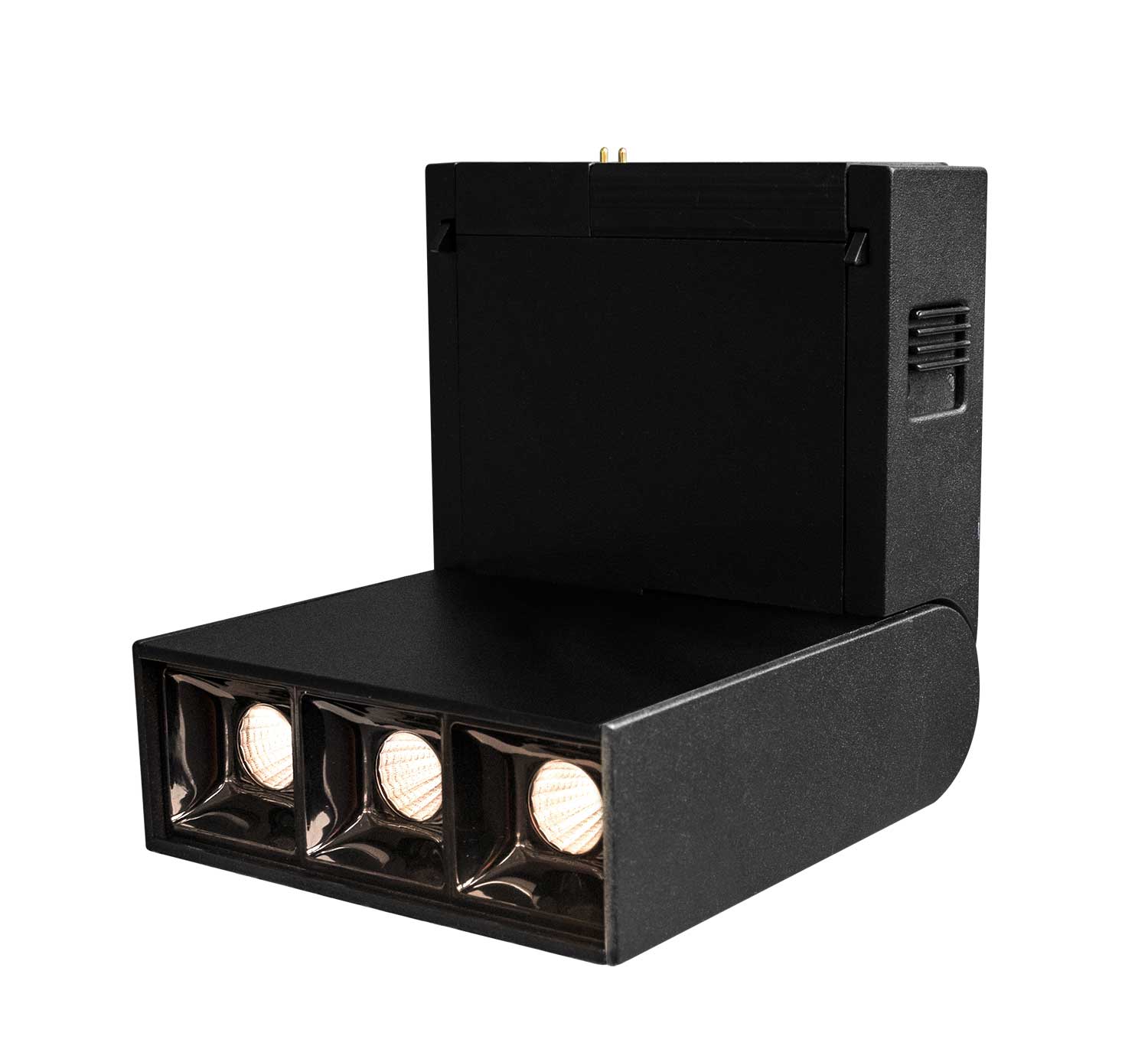

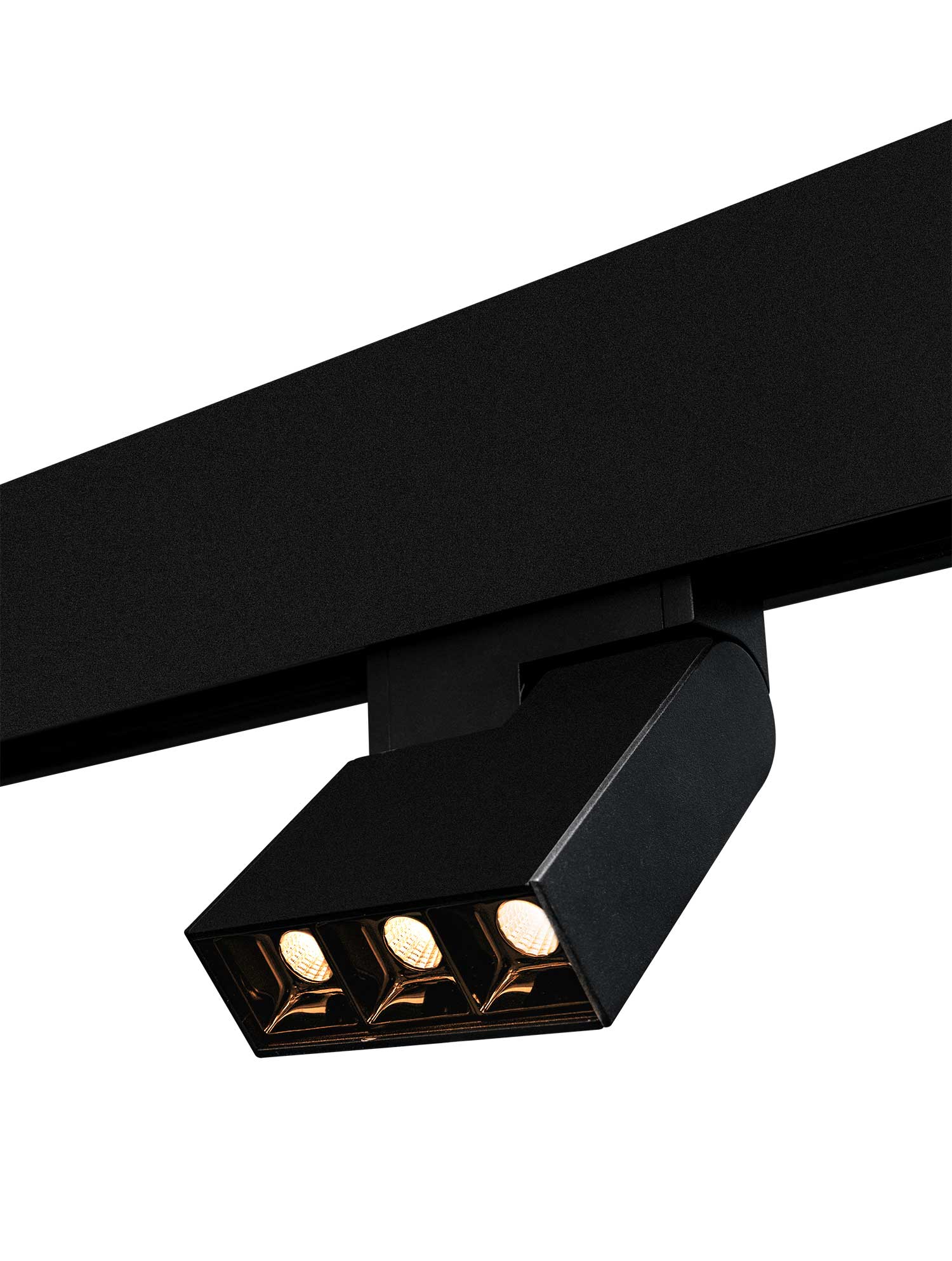

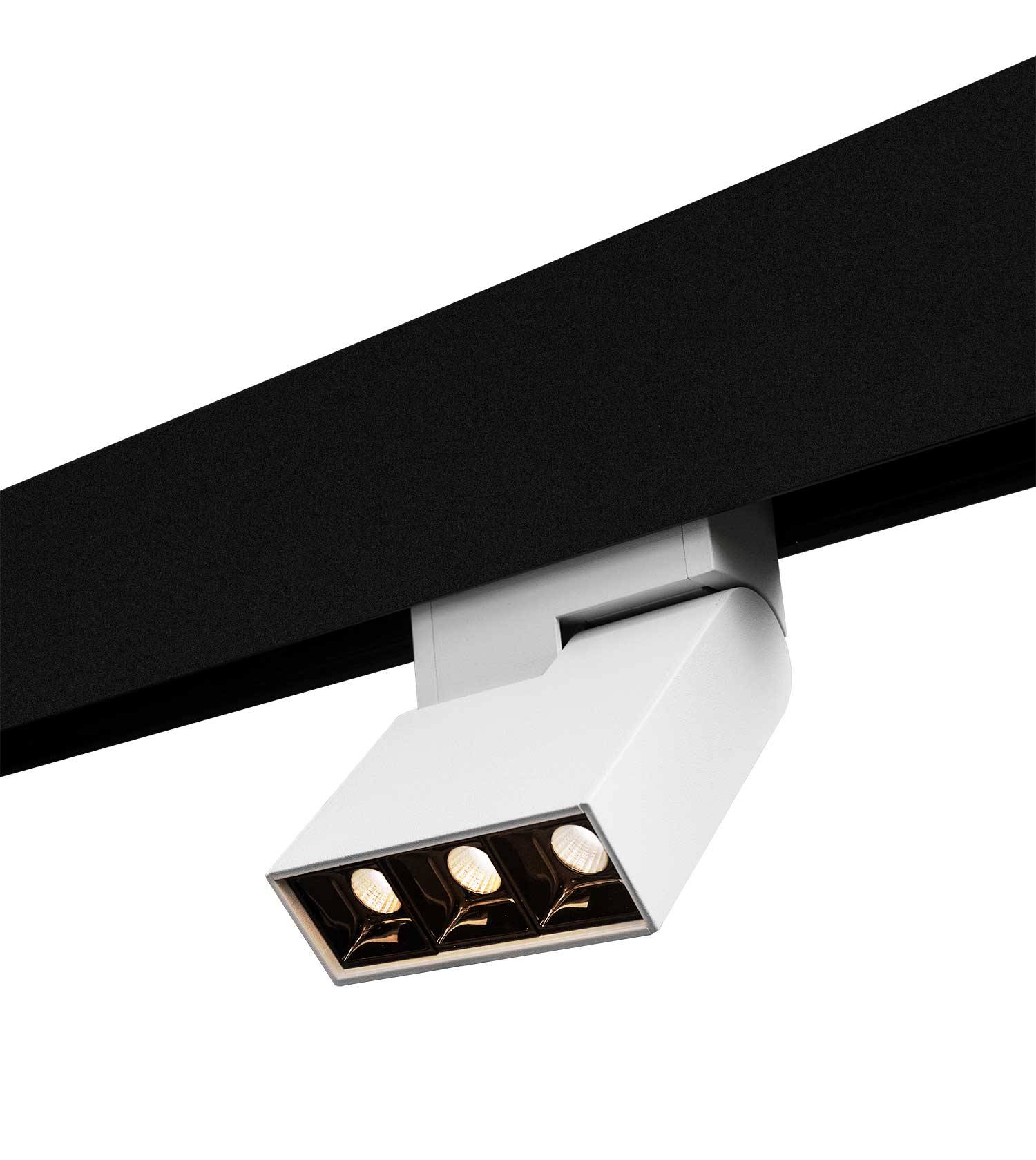

MAGNET LAMP- Gimbal Linear Spotlight Series: MGS 03 originally researched and developed by KWT, exclusive combination of magnet and light. Light body with advanced aluminum, OSRAM SMD3030 LEDs, Black PC  reflector,  beam  angle  15°   30° and  45° ,  glare-free,  good  heat sink, brilliant quality, more than 40,000 hours life span. Suitable for office, retail shop, hotel, home use and other public spaces’ great commercial or residential application.

Technical Parameter

Nominal wattage                                                   3*1W

 Input Voltage                                                       DC 24V

 Color temperature                                              3000K/4000K/5000K

Color rendering index                                         Ra>90

Beam angle                                                         15°/30°/45°

3000K Luminous flux                                        15° 209lm/30° 222lm/45° 237lm

 4000K Luminous flux Product color             15° 213lm/30° 228lm/45° 246lm

Type of protection                                             IP20

Operation temperature                                     - 20℃- 50℃

Warranty                                                            3 years

Product features

1.Exclusive combination of magnet and light

2.High efficacy, high illuminance

3.Glare-free design, perfect light spot and accurate beam angle make surroundings of comfortable illumination

4.DC 24V Safetly Input Voltage

5. Beautiful and generous linear design Rotatable vertical 90°

6.Revolutionary product uses ＂Magnets＂instead of traditional fasteners to create the simplest available installation

7.High quality, more than 40,000 hours life span.

Installation

1.Please install the related track rail before install the light

2.Aim the light to the track rail then push up

3.Adjust the track light’s light direction, the switch on

Note: when the lamp is taken out, it is also necessary to buckle the safety card with both hands.
