1. Description

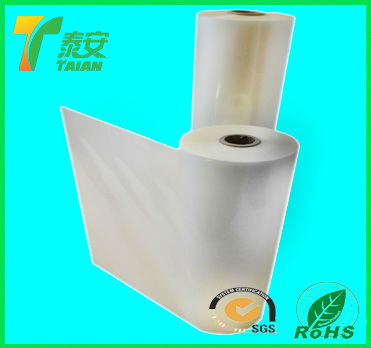

Name: BOPP Thermal Lamination Film
Based Layer: BOPP
Glue Layer: EVA--hot melt glue

2. Characteristic
1) Environmentally friendly
  No hazardous to health and secure to use as no toxic gases or volatile content is emitted. Safe in the laminating process as no solvent based adhesive is used. The BOPP thermal lamination film is food grade so it can be used in bags/packaging for food, cigarette, wine and pharmaceuticals.
2) High function
BOPP thermal lamination films are more economical over laminate with excellent clarity and brightness. It has high acid resistance and good folding characteristics and is also ideal for write-on or wipe-off applications. It is preventing lamination from being pressed, bubbled and shredding off easily.
3) Easy handling
It is easy to operate once the required temperature and pressure are met and no special technique is required.

3. Specification
1) Width: 200mm-1860mm
2) Length: 200m-9000m
3) Paper Core: 76mm(3") and 25.4mm(1")
4) Connector: less than 2
5) Corona Treatment: Double Side
6) Surface Tension: BOPP Side ≥38dyne; EVA Side≥52dyne

4. Application Manual
1) Compound Temperature: 80-110℃
2）Compound Pressure: 5-25mpa
3) Compound Speed: 50-60m/min

5. Packaging and Shipping
One roll One carton for 3" paper core, about 20-30 rolls in one pallet. The pallet dimension is 1.1*1.1m, 0.90*1.25m and 0.95*1.25m.

10 pallets in a 20 feet container (about 12,000kgs) and 20 pallets in a 40 feet container (about 25,500kgs).
