Nominal Diameter: DN20 DN25 DN32 DN40 DN50

Installation Type: Horizontal Vertical



Features:

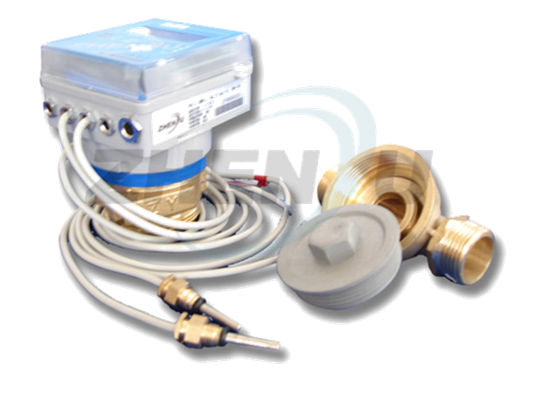

1. Patented product: the flow meter and the whole meter adopt dismountable split structure and overcome the deficiencies of conventional integral heat meter

2. With an anti-blocking function and the secondary blocking cleaning and maintenance function

3. Long battery life with dual power supply for builtin high capacity lithium battery and external connecting to the remote data collection system

4. Adopts the MSP430 dedicated chip from American TI company; ultralow power consumption, modularized function, less peripheral circuit

5. Flexible installation with high adaptability to the installation and operation environment

Operating Display:

a: The system has four operating states: normal operation state, verification state, information display state and historical data display state

b: The system function push-button is used for switching operating states and circularly switching display pages. When the push-button is held equal to or greater than 0.5 seconds, the display circularly switches. In special display page, pressing and holding the push-button can switch operating states.

Installation notice:

1) Sufficiently exhaust gases out of the pipe after installation and before pressure testing.

2) Installation of all the components (including flowmeter, temperature sensor and integrator) should avoid insolation, flooding, freezing, chemical and electromagnetic pollution and should be convenient for dismantling and data reading.
