Medical Power Supply
Share this page
Model No.:
MPM-S100 Series
Size:
2 x 4 inches
Description
Contact Supplier
Description

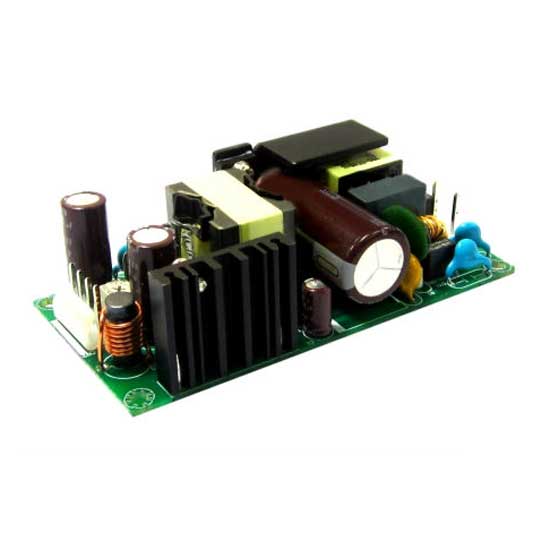

This 100W medical power supply features a compact size for ease of use. It is designed to meet such medical standards as IEC/EN/UL 60601-1 to guarantee safety. This advanced medical power supply also promises short circuit and over voltage protection.

  • High efficiency: up to 90% green power (standby power less than 0.5W).
  • Class II design, additional class I functional ground connected.
  • Type: BF rated patient contact leakage current.
  • Meets EMI CISPR/FCC class B.
  • Input voltage: universal AC input 85-264V AC.
  • Input frequency: 47-63Hz.
  • Output voltage: single output +12V DC, +24V DC, +48V DC.
  • Output power: 100W convection, 115W with air-cooling.
  • Line/load regulation: 1% max.
  • Ripple and noise: 1% max.
  • Hold-up time: min. 20ms @ 230V AC.
  • Operating temperature: -20-70°C.
  • Low temperature start-up: -40°C.
  • Altitude: operating @ 3K meters.
  • Safety: design to meet IEC, EN 60601-1 3rd, ANSI/AAMI ES60601-1:2005, 3rd ed., CAN/CSA-C22.2 No. 60601-1 (2008) EMC: EN 60601-1-2, EN 55011, FCC part 18, EN 61000-3-2; EN 61000-4-2, -3, -4, -5, -6, -8, -11.
