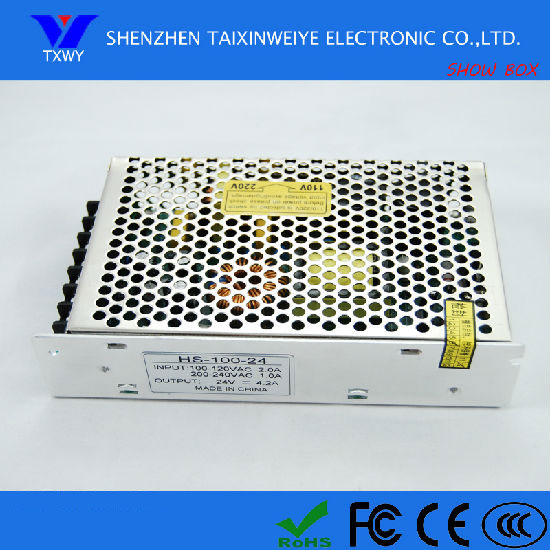

Metal LED Strip Driver
Size:
159 (L) x 97 (W) x 38 (H) mm
Description
Contact Supplier
Description
This LED driver is specially designed for LED strip lights. This LED strip driver is made of quality metal for a long service life. This LED driver is manufactured under strict QC to promise quality you can rely on.
- HS-100W-12V metal LED strip driver.
- Output voltage: 12V.
- Output current: 8.3A.
- Output current range: 0~8.3A.
- Output power: 100W.
- Wave and noise: 120mVp-p.
- Setup, rise, holdup time: 1000m, 30m, 20m/230VAC.
- Input voltage range: 90~132VAC/180~264VAC, 47~63Hz 255~373VDC AC.
- Input current: 2.4A/115V AC 1.2A/230A.
- Efficiency: 83% AC.
- Impulse current: 60A/230VAC.
- Leakage current: 1mA/240VAC.
- Overload protection: 115%~135% hiccup mode, auto-recovery.
- Working temperature, moisture: -10°C ~+60°C, 20%~90% RH.
- Store temperature, moisture: -20°C~+85°C, 10%~95%.
- Net weight: 0.48kg.
- Against voltage: I/P-O/P: 1.5KvAC 1-min, I/P-FG: 1.5KvAC 1-min, O/P-FG: 0.5KvAC 1-min.
- Insulation impedance: 100mohm/500VDC.
- Certificate: CE, RoHS.
- Packing: 45pc.
- Low price and high reliability.
- AC input power suitable for the world.
- High efficiency and low operation temperature.
- Soft-start current can reduce the AC input impact effectively.
- With short-circuit and over load protection.
- Compact size, light weight.
